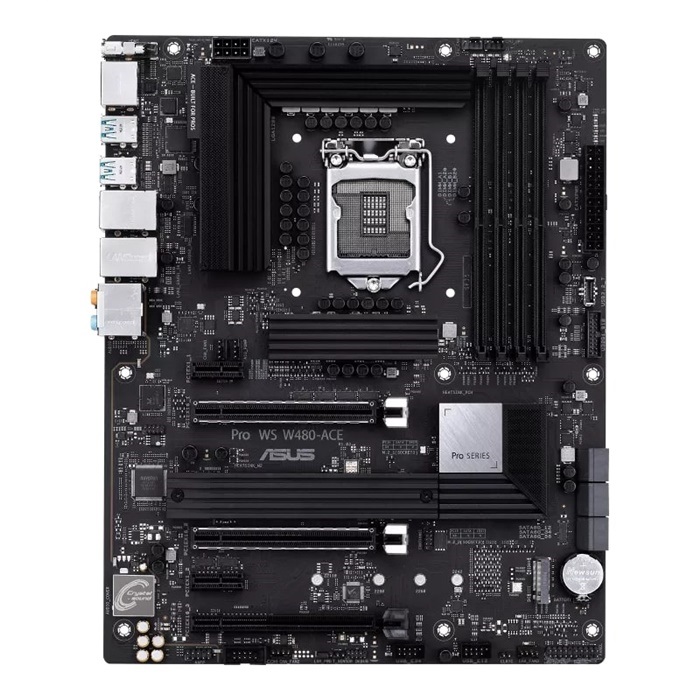

Mainboard Asus PRO WS W480-ACE Socket 1200 ATX

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

PRO WS W480-ACE

CPU hỗ trợ

Intel

Chipset

W480

RAM hỗ trợ

4 x DDR4 memory slots, support up to 128GB DDR4 4800(O.C.)/4600(O.C)/4500(O.C)

4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)

3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)

3300(O.C.)/3200(O.C.)/3000(O.C.)

2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Khe cắm mở rộng

Intel® 10th Gen Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
Intel^® W480 Chipset
1 x PCIe 3.0 x16 (x4 mode)
2 x PCIe 3.0 x1

Ổ cứng hỗ trợ

2 x M.2 slots and 4 x SATA 6Gb/s

Intel^® W480 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*³
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*⁴
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10

Cổng kết nối (Internal)

1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s)additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x COM port header

Cổng kết nối (Back Panel)

2 x Thunderbolt 3 ports TypeC^™
2 x DisplayPort IN ports for Thunderbolt™ 3
1 x HDMI
1 x LAN (RJ45) port(s)
1 x LAN (2.5G) port(s)
4 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
1 x Optical S/PDIF out
5 x Audio jack(s)

LAN / Wireless

Intel® I225-LM 2.5Gb Ethernet
Realtek® RTL8117

Kích cỡ

ATX Form Factor
12  inch x 9.2  inch ( 30.5  cm x 23.4  cm )
