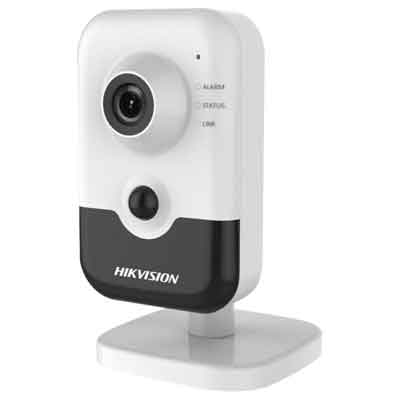

Camera Hikvision DS-2CD2423G0-IW cube 2MP Hồng ngoại 10m H.265+

Đánh giá:

Xem đánh giá (Có 0 đánh giá)

Bảo hành:

Giá bán: 1.450.000 đ

Camera Hikvision DS-2CD2423G0-IW • Cảm biến 1/2.8" Progressive Scan CMOS • H.265+/H.265/H.264+/H.264/MJPEG; • Powered by Darkfighter technology, • Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR • 25Fps/30fps(1920×1080); 3 streams; 3D DNR; BLC; ICR, 120 dB WDR • Hồng ngoại EXIR tầm xa; DC12V&PoE; Built-in mic&speaker; Built-in micro SD/SDHC/SDXC slot; • HIK-Connect cloud service • Kết nối Wifi

Số lượng

- 1 +

Đặt mua ngay

Tổng quan Thông số kỹ thuật Đánh giá sản phẩm

Camera
Image Sensor:	1/2.7” Progressive Scan CMOS
Signal System:	PAL/NTSC
Min. Illumination:	Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter time:	1/3 s to 1/100,000 s
Slow shutter:	Support
Lens:	2.8 mm: horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
Lens Mount:	M12
Adjustment Range:	Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night:	IR Cut Filter
Wide Dynamic Range:	120 dB
Digital noise reduction:	3D DNR
Focus:	Fixed

Compression Standard
Video Compression:	H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:	Main Profile/High Profile
Video bit rate:	256Kbps~16Mbps
Audio Compression:	G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Triple Streams:	Yes

Max. Image Resolution:	1920 x 1080
Frame Rate:	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream:	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:	50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Image Enhancement:	BLC/3D DNR/BLC
Image Settings:	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI:	Support 1 fixed region for main stream and sub-stream separately
Day/Night Switch:	Day/Night/Auto/Schedule

Network
Network Storage:	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, QoS, IPv6
General Function:	One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:	ONVIF (Profile S, Profile G), ISAPI

Interface
Audio:	1 built-in mic, 1 built-in speaker, mono sound
Communication Interface:	1 RJ45 10M / 100M Ethernet interface
On-board storage:	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:	Yes

Audio
Environment Noise Filtering:	Support
Audio Sampling Rate:	8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Smart Feature-set
Behavior Analysis:	Line crossing detection, intrusion detection
Line Crossing Detection:	Cross a pre-defined virtual line
Intrusion Detection:	Enter and loiter in a pre-defined virtual region
Recognition:	Face Detection

Wi-Fi Specification (-W)
Wireless Standards:	IEEE802.11b, 802.11g, 802.11n
Frequency Range:	2.412 GHz to 2.4835 GHz
Channel Bandwidth:	20/40MHz Support
Security:	WPA, WPA2
Transmission Rate:	11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps
Wireless Range:	50m(depend on environment)
Protocols:	802.11b: DQPSK, DBPSK, CCK 802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK

General
Operating Conditions:	-10 °C – 40°C (14 °F – 104 °F), Humidity 95% or less (non-condensing)
Power Supply:	12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:	12 VDC, 0.5A, max. 6W, Φ 5.5 mm coaxial plug power PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W
IR Range:	Up to 10m
PIR:	10m
Dimensions:	102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
Weight:	Camera: Approx. 128 g (0.3 lb.)
