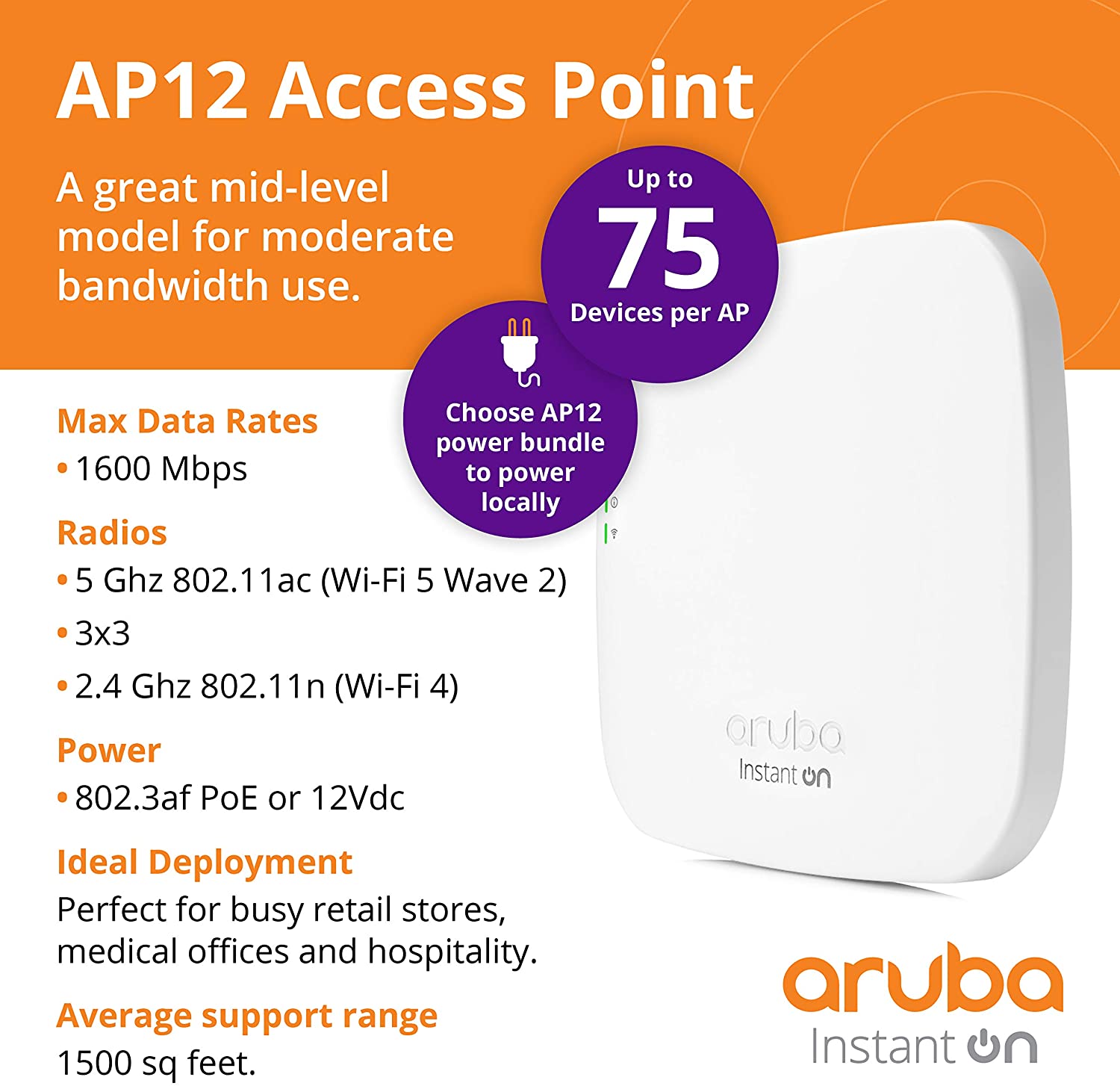

Thiết bị thu phát sóng Aruba Instant On AP12 - R2X01A (Chưa bao gồm adapter)

Model

Aruba Instant AP 12

Radios

Dual Radio for simultaneous dual-band operation

5 GHz 802.11ac 3x3 MIMO for up to 1,300Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)

2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)

Antennas

Integrated down-tilt omni-directional antennas with maximum individual antenna gain of 3.9dBi in 2.4GHz and 5.4dBi in 5GHz

Physical Interface

Uplink Gigabit Ethernet port, with PoE-in support (802.3af)

DC power connector (12V)

Bluetooth Low Energy (BLE) radio

LED status indicators (2)

Reset/LED control button

Kensington security slot

Power Source

Power over Ethernet (POE): 802.3af (class 3)

DC power (12V)

Note: Power sources are sold separately

Environmental & Reliability

Operating temperature: 0° C to +40° C (+32° F to +104° F)

Humidity: 5% to 93% non-condensing

MTBF: 1,116khrs (127yrs) at +25° C

Industry Certifications

UL 2043 plenum rating

EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)

Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE)

Management Options

Instant On mobile application (Android & iOS)

Cloud Portal: Portal.ArubaInstantOn.com

Dimensions & Weights

157mm x 157mm x 34mm, excluding mount accessories

Weight: 483g

Package Contents

Aruba Instant On AP12 Indoor Access Point

Aruba Instant On AP12 Quick Start guide

Ceiling rail mount clip

Ethernet cable

Solid surface mount clip
