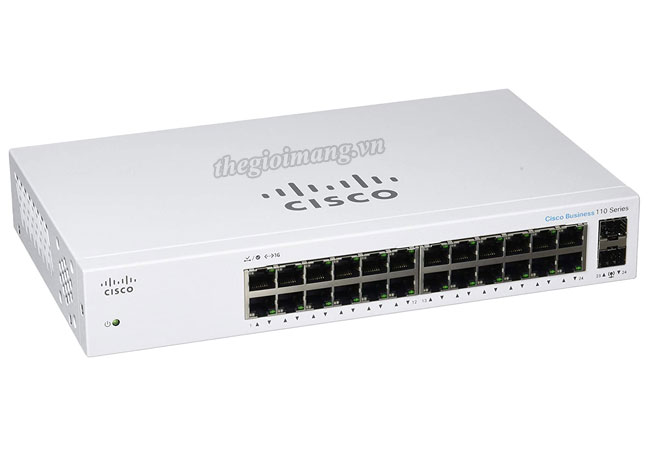

Thiết bị mạng Cisco CBS110 Unmanaged 24-port GE, 2x1G SFP Shared (SFCILCOB21-201) _ CBS110-24T-EU

Đánh giá:

Xem đánh giá (Có 0 đánh giá)

Bảo hành:

Giá bán: 4.490.000 đ

- Hỗ trợ 24 cổng Gigabit Ethernet và 2 cổng SFP (combo with 2 Gigabit Ethernet). - Switching capacity: 48Gbps. - Quality of Service (QoS): 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR). - Cabling type: Category 5e or better. - Flash: 8MB. - CPU: 400MHz ARM - CPU memory: 64MB. - Nguồn điện: 110-240VAC, 50-60 Hz, internal, universal. - Kích thước (W x D x H): 279 x 170 x 44 mm. - Trọng lượng: 1.56kg.

Số lượng

- 1 +

Đặt mua ngay

Tổng quan Thông số kỹ thuật Đánh giá sản phẩm

Model	CBS110-24T-EU
Performance
Switching capacity in gigabits per second (Gbps)	48 Gbps
Capacity in millions of packets per second (mpps) (64-byte packets)	35.7 mpps
General
Head-of-line (HOL) blocking	HOL blocking prevention
MAC table	2K
Jumbo frame	9216 bytes
Quality of Service (QoS)	802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection	Helps discover loops in the network to avoid broadcast storms
Cable diagnostics	Quickly identify and troubleshoot network cable faults and/or shorts
Media-dependent interface	Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Hardware
Ports	24 Gigabit Ethernet 2 SFP (combo with 2 Gigabit Ethernet)
LEDs	Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE, Max PoE, if present
Cabling type	Category 5e or better
Mounting options	Desktop, wall-mount or rack mount
Physical security lock	Kensington lock slot
Flash	8MB
CPU	400MHz ARM
CPU memory	64MB
Packet buffer	2 Mbit
Environmental
Unit dimensions (W x D x H)	279 x 170 x 44 mm
Weight	1.56kg
Power	110-240VAC, 50-60 Hz, internal, universal
System power consumption	110V=16.3W 220V=16.34W
Heat dissipation (BTU/hr)	55.75
Green (power efficiency)	Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Compliance/certifications	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature	32° to 104°F (0° to 40°C)
Storage temperature	–4° to 158°F (–20° to 70°C)
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	5% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failures (MTBF)
Fan (number)	Fanless
MTBF at 25°C (hours)	524,296
