Thiết bị cân bằng tải DrayTek Vigor3910 (V3910)

Đánh giá:

Xem đánh giá (Có 0 đánh giá)

Bảo hành:

Giá bán: 20.390.000 đ

10G High-Performance Load-Balancing VPN Concentrator - Qual Core CPU - Router hiệu năng cao dành cho doanh nghiệp, hotel, resort.. - 2 port 10 Gigabit WAN/LAN slot SFP+ (cho phép chuyển đổi WAN/LAN linh hoạt). - 2 port 2.5 Gigabit WAN/LAN, RJ45 (cho phép chuyển đổi WAN/LAN linh hoạt). - 4 port Gigabit LAN/WAN, RJ45 (P5-P8). - 4 cổng Gigabit LAN ( Ethernet 10/100/1000Mbps), RJ-45 (P9-P12). - 2 cổng USB, 2 x 3.0 cho phép kết nối USB 3G/4G, USB... - 1 cổng console, RJ45. - Multi-WAN Load Balancing and Failover, hỗ trợ đường truyền đa dịch vụ (IPTV, Internet, VoIP...). - NAT Session: 150.000, NAT Throughtput: 8.5Gb/s với khả năng chịu tải lên đến 500+ user, hỗ trợ nhiều dịch vụ cao cấp: Leased line, L2VPN, L3VPN, MetroNET… - Hỗ trợ chia 50 lớp mạng khác nhau (801.2q VLAN Tag), DMZ LAN, IP routed LAN. - VPN 500 kênh (OpenVPN, IPSec(IKEv1, IKEv2, XAuth), 200 kênh VPN SSL....), VPN Trunking (Load balancing/Backup), VPN qua 3G/4G (Dial-out). - Tính năng Web Portal: Hiện trang quảng cáo khi khách hàng kết nối internet - Kiểm soát và quản lý băng thông tối ưu đường truyền Internet, chế độ Hight-Availability. - Firewall mạnh mẽ, linh hoạt (IP/MAC Address, Port Service,URL/Web Content Filter...). - Quản lý tập trung với Cloud VigorACS 2, quản lý tập trung Access Point APM, quản lý tập trung Switch SWM. - Chịu tải 500 User

Số lượng

- 1 +

Đặt mua ngay

Tổng quan Thông số kỹ thuật Đánh giá sản phẩm

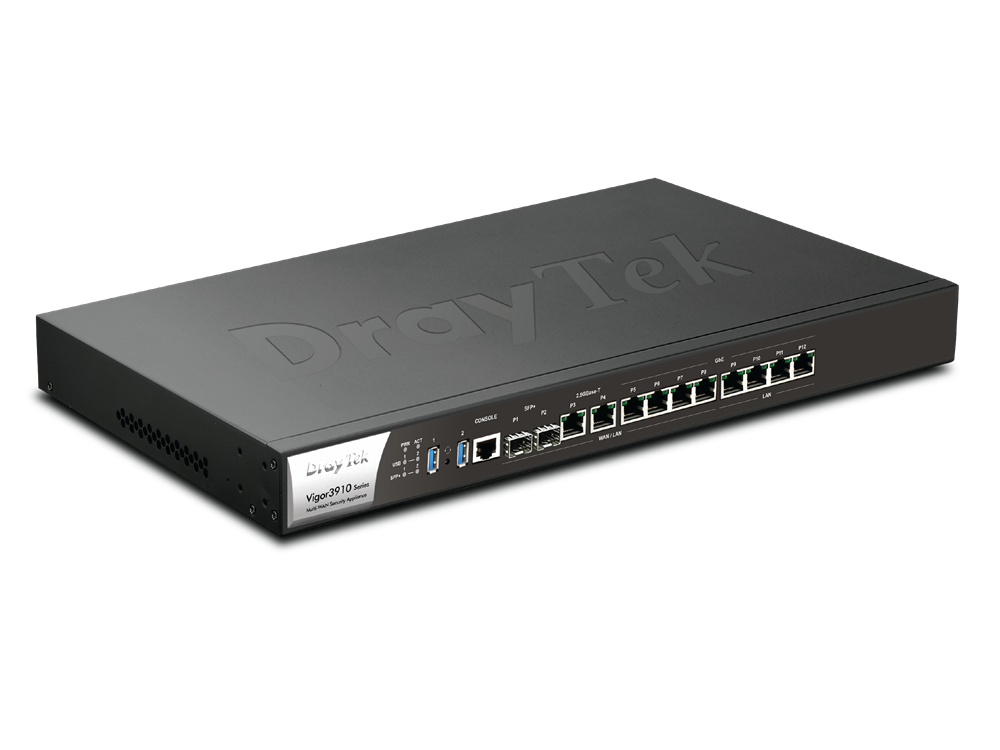

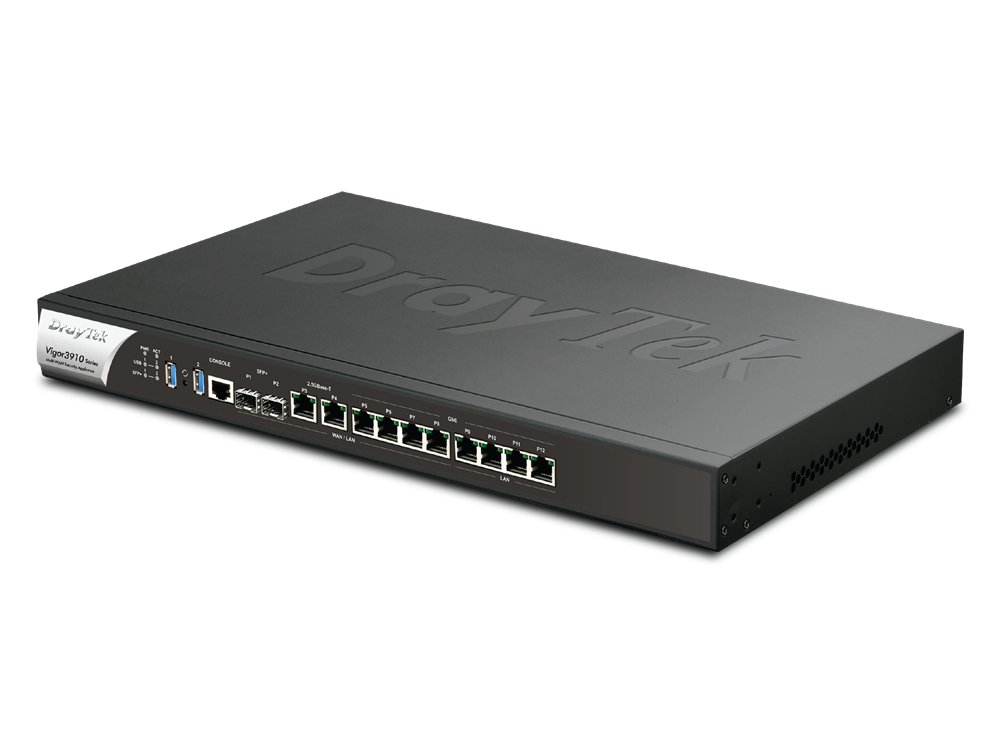

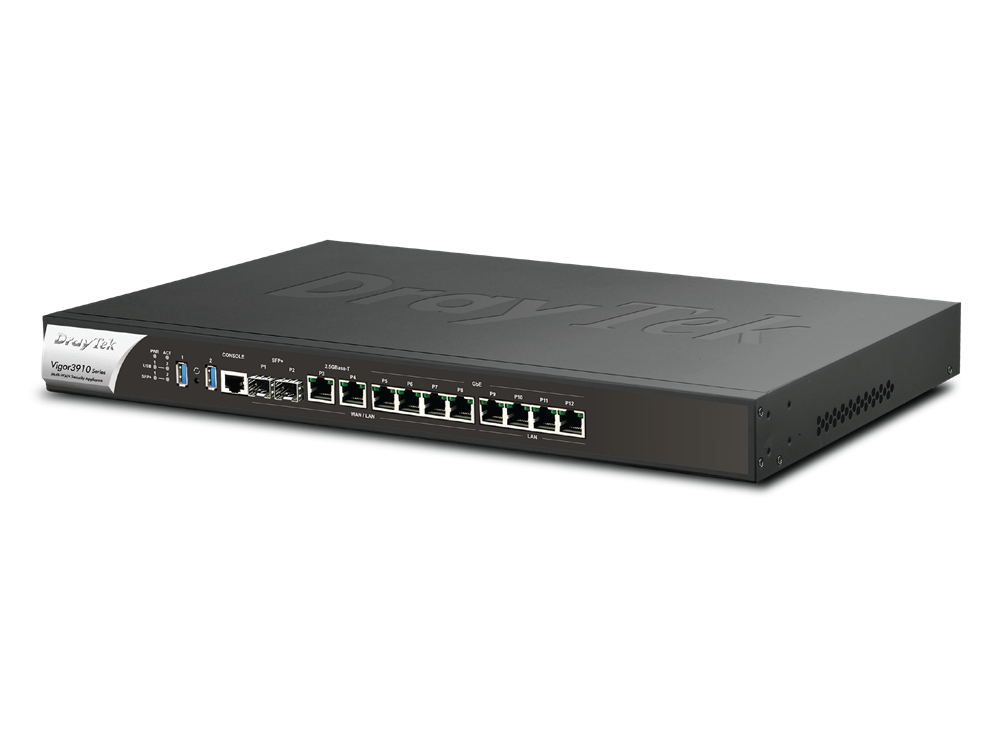

Thiết bị cân bằng tải DrayTek Vigor3910 (V3910)
WAN/LAN Switchable Port	2x 10G/2.5G/1G SFP+ Fiber Slot 2x 2.5G/1G/100M/10M Ethernet, RJ-45 4x 1G/100M/10M Ethernet, RJ-45
Fixed LAN Port	4x 1G/100M/10M Ethernet, RJ-45
USB Port	2x USB 3.0 for storage* (since f/w v3.9.6)
Console Port	1x RJ-45
Button	1x Factory Reset
Performance
NAT Throughput	9 Gbps
IPsec VPN Performance	3 Gbps
SSL VPN Performance	1.3 Gbps
NAT Sessions	1,000,000
Max. Concurrent VPN Tunnels	500
Max. Concurrent OpenVPN + SSL VPN	200
Internet Connection
IPv4	PPPoE, DHCP, Static IP
IPv6	PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
Load Balancing	IP-based, Session-based
WAN Active on Demand	Link Failure, Traffic Threshold
Connection Detection	ARP, Ping, Strict ARP
WAN Data Budget	(since f/w v3.9.6)
Dynamic DNS
DrayDDNS
LAN Management
VLAN	802.1q Tag-based, Port-based
Max. Number of VLAN	100
Number of LAN Subnet	100
DHCP Server	Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
LAN IP Alias
IP Pool Count	Up to 4K per LAN Subnet
PPPoE Server
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot Authentication	Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server
Networking
Routing	IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2/ng, OSPFv2, BGP
Policy-based Routing	Protocol, IP Address, Port, Domain, Country
High Availability	Active-Standby, Hot-Standby
DNS Security (DNSSEC)
IGMP	IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave(since f/w v3.9.6)
Local RADIUS server
VPN
LAN-to-LAN
Teleworker-to-LAN
Protocols	PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IPsec-XAuth, OpenVPN(Host to LAN)
User Authentication	Local, RADIUS, LDAP, TACACS+, mOTP
IKE Authentication	Pre-Shared Key, X.509, XAuth, EAP
IPsec Authentication	SHA-1, SHA-256, MD5
Encryption	MPPE, DES, 3DES, AES
VPN Trunk (Redundancy)	Load Balancing, Failover
Single-Armed VPN
NAT-Traversal (NAT-T)
DrayTek VPN Matcher
Firewall & Content Filtering
NAT	Port Redirection, Open Ports, Port Triggering, DMZ Host
ALG (Application Layer Gateway)	SIP, RTSP, FTP, H.323
VPN Pass-Through	PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering	Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
DoS Attack Defense
Spoofing Defense
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service)	TOS, DSCP, 802.1p, IP Address, Service Type
VoIP Prioritization
Management
Local Service	HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
Config File Export & Import
Firmware Upgrade	TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control	Access List, Brute Force Protection
Syslog
Notification Alert	SMS, E-mail
SNMP	v1, v2c, v3
Managed by VigorACS
Central AP Management	50 VigorAPs
Central Switch Management	30 VigorSwitches
Physical
Rack Mountable	Mouting Kit Included
Dimension	443 mm x 285 mm x 45 mm
Weight	3.23 kg
Power	AC 110~220V @ 1A
Max.Power Consumption	35 watts
Operating Temperature	0 to 45°C
Storage Temperature	-10 to 55°C
Operating Humidity (non-condensing)	10 to 90%
