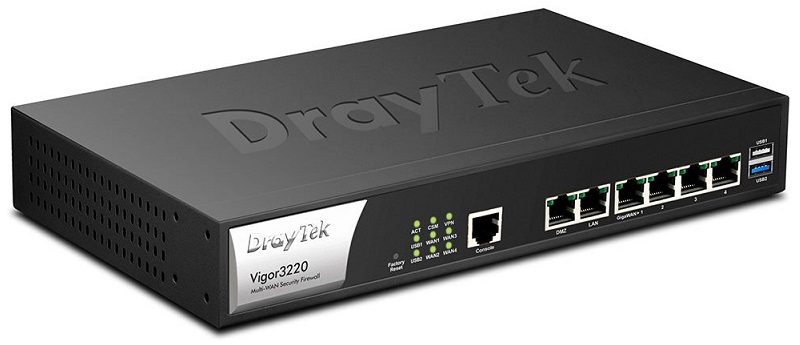

Thiết bị cân bằng tải Draytek Vigor3220 (V3220)

Đánh giá:

Xem đánh giá (Có 0 đánh giá)

Bảo hành:

Giá bán: 7.990.000 đ

Giao tiếp : Cổng WAN 4x Gigabit Ethernet RJ-45; Cổng lan: 1x Gigabit Ethernet RJ-45; Cổng DMZ: 1x Gigabit Ethernet RJ-45; Cổng USB: 1x USB 3.0 + 1x USB 2.0; Cổng điều khiển: 1x RJ-45 Chuẩn giao tiếp: 802.1q Nguồn: AC 110-220V @ 1A Giao thức mạng: PPTP, L2TP, IPsec, L2TP qua IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN (Máy chủ lưu trữ vào mạng LAN) Chịu tải 200 User Kích thước: 273mm x 171mm x 45mm Khối lượng: 1,38 kg

Số lượng

- 1 +

Đặt mua ngay

Tổng quan Thông số kỹ thuật Đánh giá sản phẩm

Thiết bị cân bằng tải Draytek Vigor3220 (V3220)
WAN Port	4x Gigabit Ethernet RJ-45
LAN Port	1x Gigabit Ethernet RJ-45
DMZ Port	1x Gigabit Ethernet RJ-45
USB Port	1x USB 3.0 + 1x USB 2.0
Console Port	1x RJ-45
Performance
NAT Throughput	500 Mbps
NAT Throughput w/ Hardware Acceleration	900 Mbps
IPsec VPN Performance	200 Mbps (AES 256 bits)
SSL VPN Performance	90 Mbps
Max. Number of NAT Sessions	100,000
Max. Concurrent VPN Tunnels	200 (f/w 3.8.8 or later)
Max. Concurrent OpenVPN + SSL VPN	50
Internet Connection
IPv4	PPPoE, DHCP, Static IP, PPTP/L2TP
IPv6	PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel
Multi-VLAN/PVC
3G/4G/LTE WAN with USB modem
Load Balancing	IP-based, Session-based
WAN Active on Demand	Link Failure, Traffic Threshold
Connection Detection	ARP, Ping
WAN Data Budget
Dynamic DNS
DrayDDNS
LAN Management
VLAN	802.1q Tag-based, Port-based
Max. Number of VLAN	8
Number of LAN Subnet	8
DHCP Server	Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
LAN IP Alias
PPPoE Server
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot Authentication	Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
Networking
Routing	IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP
Policy-based Routing	Protocol, IP Address, Port, Domain, Country
High Availability
DNS Security (DNSSEC)
Multicast	IGMP Proxy, IGMP Snooping, Bonjour
Local RADIUS server
SMB File Sharing	(Requires external storage)
VPN
LAN-to-LAN
Teleworker-to-LAN
Protocols	PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN(Host to LAN)
User Authentication	Local, RADIUS, LDAP, TACACS+, mOTP
IKE Authentication	Pre-Shared Key, X.509
IPsec Authentication	SHA-1, SHA-256, MD5
VPN Redundancy	Load Balancing, Failover
Single-Armed VPN
NAT-Traversal (NAT-T)
DrayTek VPN Matcher
Firewall & Content Filtering
NAT	Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
ALG (Application Layer Gateway)	SIP, RTSP, FTP, H.323, TFTP
VPN Pass-Through	PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering	Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
DoS Attack Defense
Spoofing Defense
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service)	TOS, DSCP, 802.1p, IP Address, Port, Application
VoIP Prioritization
Management
Local Service	HTTP, HTTPS, Telnet, SSH v2, TR-069, FTP, SNMP
Config File Export & Import
Config File Compatibility	Vigor3200 Series
Firmware Upgrade	TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control	Access List, Brute Force Protection
Syslog
Notification Alert	SMS, E-mail
SNMP	v1, v2c, v3
Managed by VigorACS
Central VPN Management	8 VPN
Central AP Management	30 VigorAP
Central Switch Management	10 VigorSwitch
Physical
Rack Mountable	Mouting Kit Included
Power Supply	AC 110-220V @ 1A
Max. Power Consumption	15 watts
Dimension	273mm x 171mm x 45mm
Weight	1.35 kg
Operating Temperature	0 to 45°C
Storage Temperature	-20 to 70°C
Operating Humidity	10 to 90% (non-condensing)
