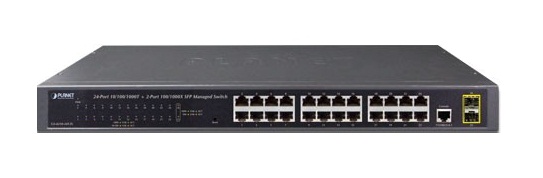

Switch PLANET GS-4210-24T2S Managed, 24 port 10/100/1000BASE-T + 2 port 100/1000BASE-X SFP

Đánh giá:

Xem đánh giá (Có 0 đánh giá)

Bảo hành:

Giá bán: 3.790.000 đ

24 port 10/100/1000BASE-T Gigabit RJ45 with Auto-MDI/MDI-X ports. 2 x 100/1000BASE-X mini-GBIC/SFP slots, supporting 100/1000Mbps dual mode. 1 x 1 x RS232 to RJ45 serial port (115200, 8, N, 1) Console Hỗ trợ 8K cho các địa chỉ MAC. Hỗ trợ giao thức CSMA/CD. Layer 2 Features: Supports VLAN, 802.1Q tagged-based VLAN, Up to 256 VLAN groups, out of 4094 VLAN IDs, 802.1ad Q-in-Q tunneling (VLAN stacking)… Security: Storm Control support: Broadcast/ Unknown-Unicast/ Unknown-Multicast, IEEE 802.1X port-based network access authentication… Management: IPv4 and IPv6 dual stack management, Switch Management Interface, Local Command Line Interface Xuất xứ: Taiwan

Số lượng

- 1 +

Đặt mua ngay

Tổng quan Thông số kỹ thuật Đánh giá sản phẩm

Hardware Specifications
Copper Ports	24 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots	2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode
Console	1 x RS232 to RJ45 serial port (115200, 8, N, 1)
Reset Button	System factory default
Switch Architecture	Store-and-Forward
Switch Fabric	52Gbps / non-blocking
Switch Throughput @ 64 bytes	38.6Mpps @ 64 bytes
MAC Address Table	8K entries
Shared Data Buffer	4.1 megabits
Flow Control	IEEE 802.3x pause frame for full-duplex
Flow Control	Back pressure for half-duplex
Jumbo Frame	9216 bytes
Reset Button	> 5 sec: Factory default
LED	System:
	Power (Green)
	10/100/1000T RJ45 Interfaces (Port 1 to Port 24):
	1000 LNK / ACT (Green), 10/100 LNK/ACT (Orange)
	100/1000Mbps SFP Interfaces (Port 25 to Port 26):
	1000 LNK / ACT (Green), 100 LNK/ACT (Orange)
Power Requirements	100~240V AC, 50/60Hz, 0.8A (max.)
Power Consumption / Dissipation	Max. 14 watts / 47 BTU
Dimensions	445 x 207 x 45 mm (1U height)
Weight	2.1kg
ESD Protection	Yes
Enclosure	Metal
Port Mirroring	TX / RX / Both
Port Mirroring	Many-to-1 monitor
VLAN	802.1Q tagged-based VLAN
	Up to 256 VLAN groups, out of 4094 VLAN IDs
	802.1ad Q-in-Q tunneling (VLAN stacking)
	Voice VLAN
	Protocol VLAN
	Private VLAN (Protected port)
	GVRP
	Management VLAN
Link Aggregation	IEEE 802.3ad LACP and static trunk
Link Aggregation	Supports 8 groups of 8-port trunk
Spanning Tree Protocol	STP, IEEE 802.1D Spanning Tree Protocol
	RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
	MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
	STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP Snooping	IPv4 IGMP (v2 / v3) Snooping
	IGMP Querier
	Up to 256 multicast groups
