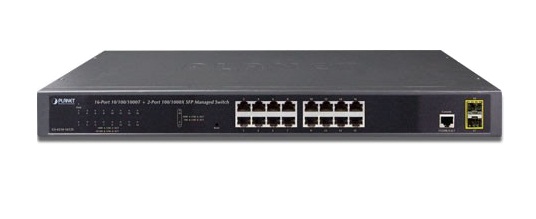

Switch PLANET GS-4210-16T2S Managed, 16 port 10/100/1000BASE-T + 2 port 100/1000BASE-X SFP

Copper Ports

16 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

SFP/mini-GBIC Slots

2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode

Console

1 x RS232-to-RJ45 serial port (115200, 8, N, 1)

Reset Button

System factory default

Switch Architecture

Store-and-Forward

Switch Fabric

36Gbps / non-blocking

Switch Throughput @ 64 bytes

26.7Mpps @64 bytes

MAC Address Table

8K entries

Shared Data Buffer

4.1 megabits

Flow Control

IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex

Jumbo Frame

9216 bytes

Reset Button

> 5 sec: Factory default

LED

System:

Power (Green)

10/100/1000T RJ45 Interfaces (Port 1 to Port 16):

1000 LNK / ACT (Green), 10/100 LNK/ACT (Orange)

100/1000Mbps SFP Interfaces (Port 17 to Port 18):

1000 LNK / ACT (Green), 100 LNK/ACT (Orange)

Port Mirroring

TX / RX / Both

Many-to-1 monitor

VLAN

802.1Q tagged-based VLAN

Up to 256 VLAN groups, out of 4094 VLAN IDs

802.1ad Q-in-Q tunneling (VLAN stacking)

Voice VLAN

Protocol VLAN

Private VLAN (Protected port)

GVRP

Management VLAN

Link Aggregation

IEEE 802.3ad LACP and static trunk

Supports 8 groups of 8-port trunk

Spanning Tree Protocol

STP, IEEE 802.1D Spanning Tree Protocol

RSTP, IEEE 802.1w Rapid Spanning Tree Protocol

MSTP, IEEE 802.1s Multiple Spanning Tree Protocol

STP BPDU Guard, BPDU Filtering and BPDU Forwarding

IGMP Snooping

IPv4 IGMP (v2 / v3) Snooping

IGMP Querier

Up to 256 multicast groups

MLD Snooping

IPv6 MLD (v1 / v2) snooping, up to 256 multicast groups

Access Control List

IPv4/IPv6 IP-based ACL / MAC-based ACL

IPv4/IPv6 IP-based ACE / MAC-based ACE

Secure Management Interfaces

HTTPs, SNMP v3

Power Requirements

100~240V AC, 50/60Hz, 0.8A (max.)

Power Consumption/ Dissipation

Max. 10.4 watts / 35 BTU

Dimensions

445 x 207 x 45 mm (1U height)

Weight

2kg
