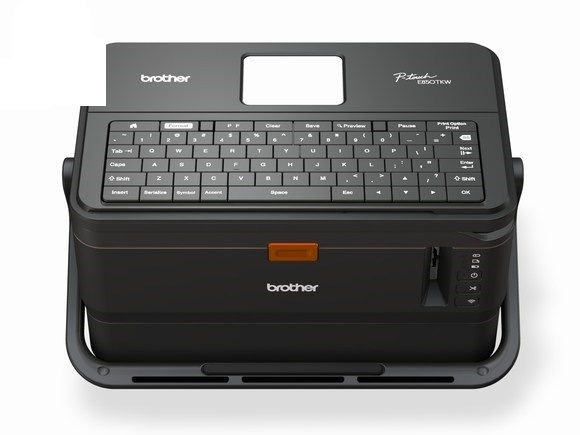

Máy in nhãn Brother PT-E850TKW

Size

Dimensions

Approx. 338 mm (W) x 188 mm (D) x 173 mm (H) (including keybord LCD unit)

Weight

Approx. 4.6 kg (including keybord LCD unit, excluding Li-ion Battery)

Printing

Print method

Thermal Transfer

Compatible tubes *1

Inner diameter: Φ2.5 mm - Φ6.5 mm

Thickness: 0.5 mm

Material: PVC

Print head

454 dot/360 dpi (for labels)

86 dot/360 dpi (for tubes)

High resolution mode: max. 720 dpi × 360 dpi (when connected to a computer) *2

Print height

Label: max. 32 mm (when using 36 mm tape) *3

Tube: max. 6 mm (when using Φ6.5 mm tube) *3

Print speed

Label:

AC Adapter: max. 60 mm/sec.

Battery: 20 mm/sec. - 60 mm/sec. (varies depending on the tape width)

Tube:

max. 40 mm/sec.

Actual print speed varies depending on the conditions.

Cassette

Brother TZe tape cassette (3.5 mm, 6 mm, 9 mm, 12 mm, 18 mm, 24 mm, 36 mm widths)

Brother HSe tube cassette (5.8 mm, 8.8 mm, 11.7 mm, 17.7 mm, 23.6 mm widths)

Brother FLe label cassette (21 mm x 45 mm)

Brother TR ribbon cassette (12 mm width)

No. of lines

▪ TZe tape cassette

36 mm tape: 17 lines; 24 mm tape: 13 lines; 18 mm tape: 10 lines; 12 mm tape: 6 lines; 9 mm tape: 4 lines; 6 mm tape: 3 lines; 3.5 mm tape: 1 lines

▪ HSe tube cassette

23.6 mm tape: 12 lines; 17.7 mm tape: 10 lines; 11.7 mm tape: 6 lines; 8.8 mm tape: 4 lines; 5.8 mm tape: 2 lines

▪ PVC tube

Φ6.5 mm tube: 2 lines; Φ6.0 mm tube: 2 lines; Φ5.0 mm tube: 2 lines; Φ4.0 mm tube: 2 lines; Φ3.5 mm tube: 2 lines; Φ3.0 mm tube: 2 lines; Φ2.5 mm tube: 1 line

Memory (local files)

File storage

max. 99 files

Power Supply

Adapter

AC adapter (AD9100ESA): 24 V

Battery (Optional)

Li-ion Battery (PA-BT-4000LI): 14.4 V

Auto Power-off

Li-ion Battery (PA-BT-4000LI): 30 min

AC adapter (AD9100ESA): Off

Interface

USB

Version 2.0 Full Speed

Wi-Fi

▪ Wireless Direct: IEEE 802.11n

▪ Ad-Hoc mode: IEEE 802.11b

▪ Infrastructure mode: IEEE 802.11b/g/n

▪ WPS 2.0

Other

Operating temperature / humidity

▪ TZe engine

When running: between 10°C and 35°C / between 20% and 80%

max. wet bulb temperature: 27°C

▪ Tube engine

When running: between 15°C and 35°C / between 20% and 80%

max. wet bulb temperature: 27°C
