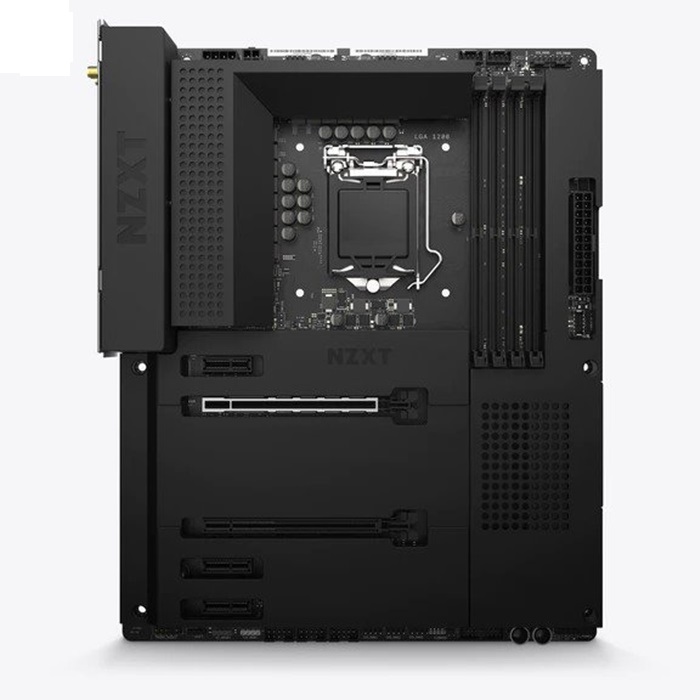

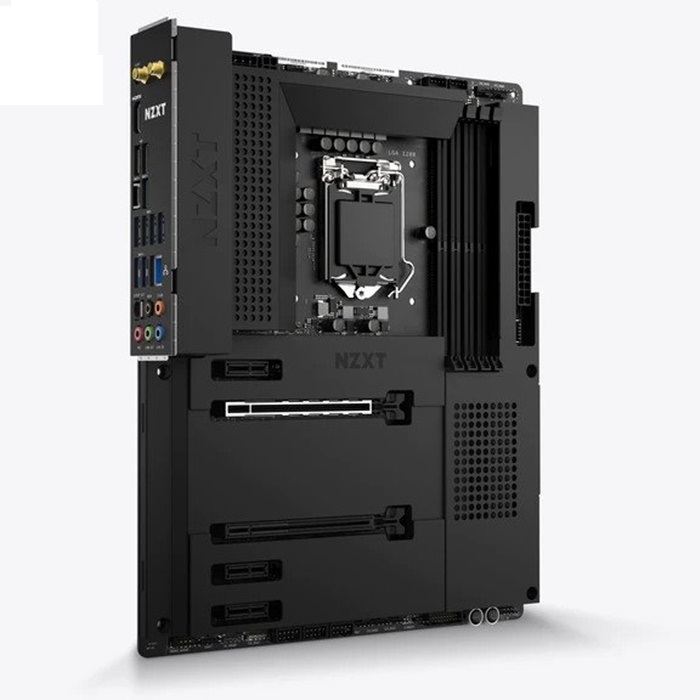

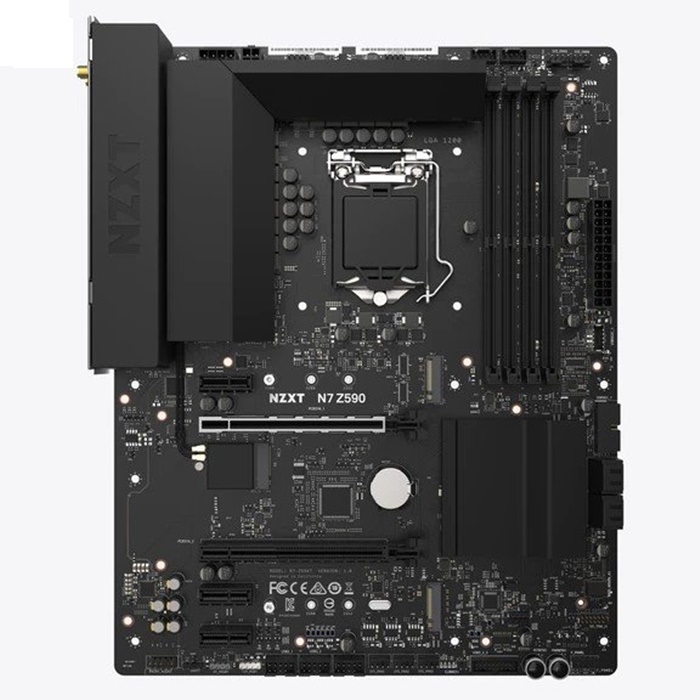

Mainboard NZXT N7 Z590 Matte Black

Sản phẩm

Bo mạch chủ

Tên Hãng

NZXT

Model

N7 Z590 Matte Black

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

Memory Channels: 4DDR4 (Dual channel)
Max Memory Size:128GB

Base Frequency (11th Gen CPUs): 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz,

Base Frequency (10th Gen CPUs): 2933 / 2800 / 2666 / 2400 / 2133 MHz

Khe cắm mở rộng

1 (11th Gen CPUs - PCIe 4.0, 10th Gen CPUs - PCIe 3.0) x PCIe x16 (x16 mode)

PCIe x16 (x4 mode) x 1

PCIe 3.0 x1 x 3

Ổ cứng hỗ trợ

M.2 Type 2242/2260/2280 (PCIe x4 mode) x 1 (11th Gen CPUs - PCIe 4.0, 10th Gen CPUs - PCIe 3.0)

M.2 Type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode) x 1

SATA 6Gb/s x 4

Cổng kết nối (Internal)

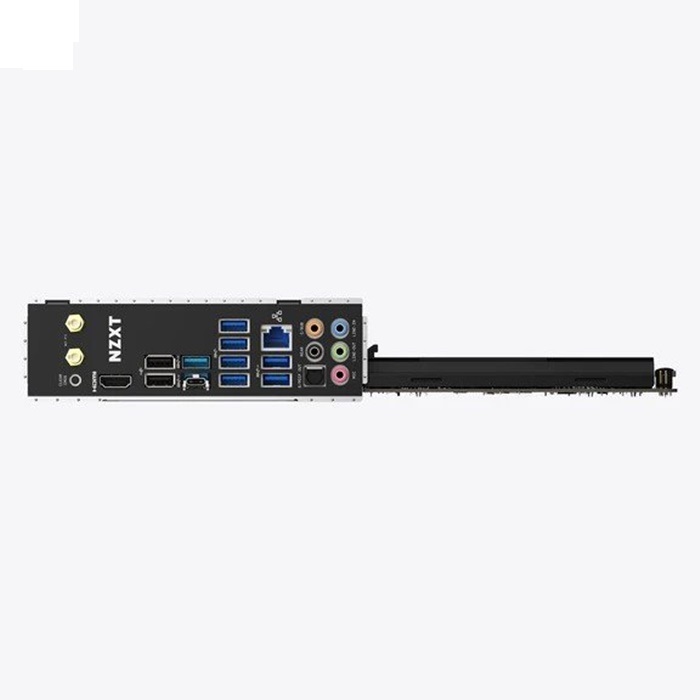

Cổng kết nối (Back Panel)

• M.2 (M Key), Type 2242/2260/2280 x 1 (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x4 & SATA mode)

• M.2 (E Key) (For wireless cards) x 1

• SATA 6Gbps Ports x 4

• USB 3.2 Gen 2 Header (Type-C) x 1

• USB 3.2 Gen 1 Header x 2 (Up to 4 ports)

• USB 2.0 Header x 3 (Up to 6 ports)

• Front Panel Audio x 1

• CPU_FAN Connector x 1 (Up to 24W)

• AIO_PUMP Connector x 1 (Up to 24W)

• SYS_FAN Connector x 5 (Up to 24W)

• NZXT RGB LED Header x 2

• 5V ARGB Header x 1

• 12V RGB Header x 1

• 24-pin EATX Power x 1

• 8-pin ATX 12V Power x 1

• 4-pin ATX 12V Power x 1

• Power Button x 1

• Reset Button x 1

• POST LEDs x 4

LAN / Wireless

Realtek®: RTL8125BG 2.5G

AX210 Wi-Fi 6E, 802.11

V5.2

Kích cỡ

ATX
