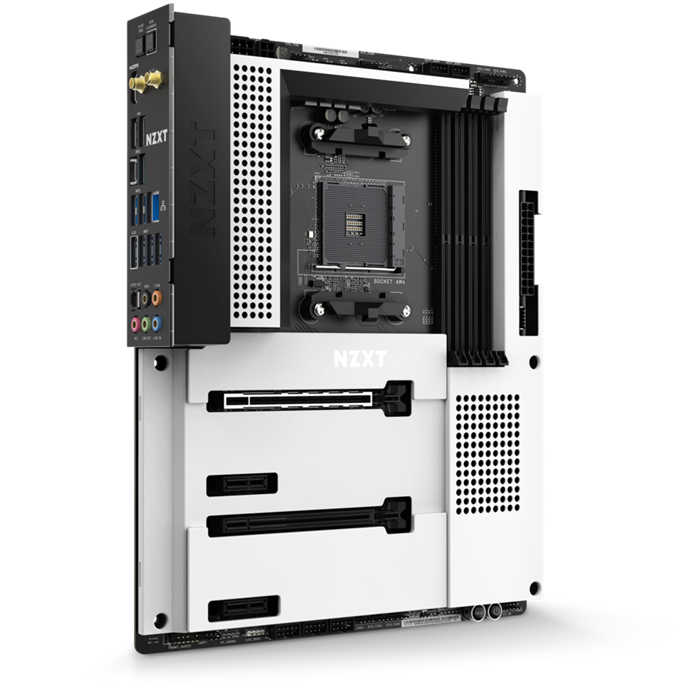

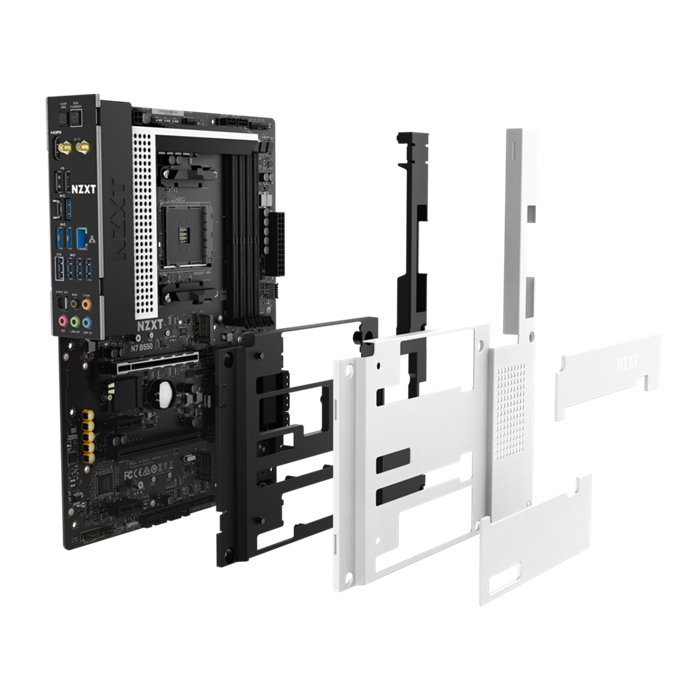

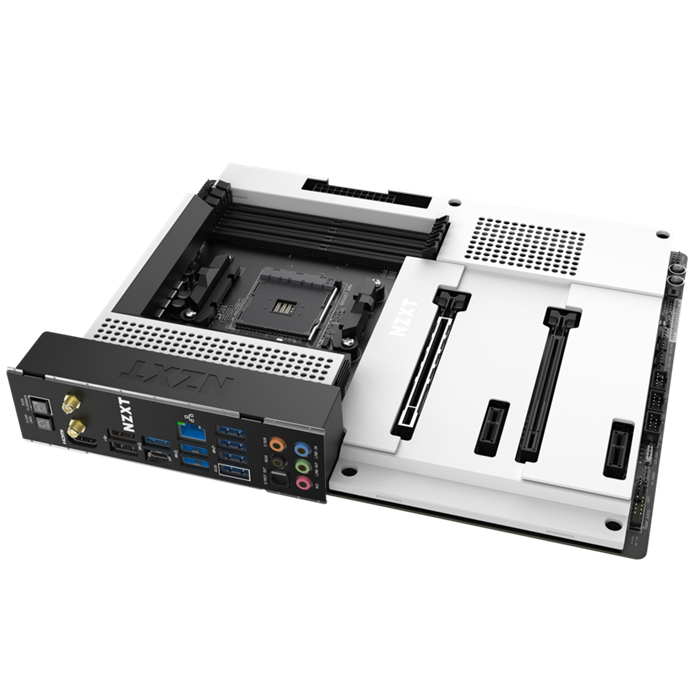

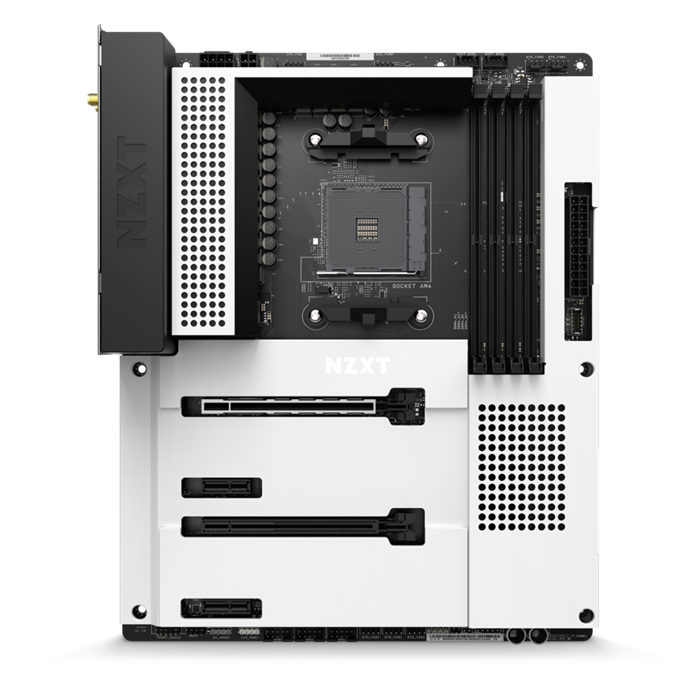

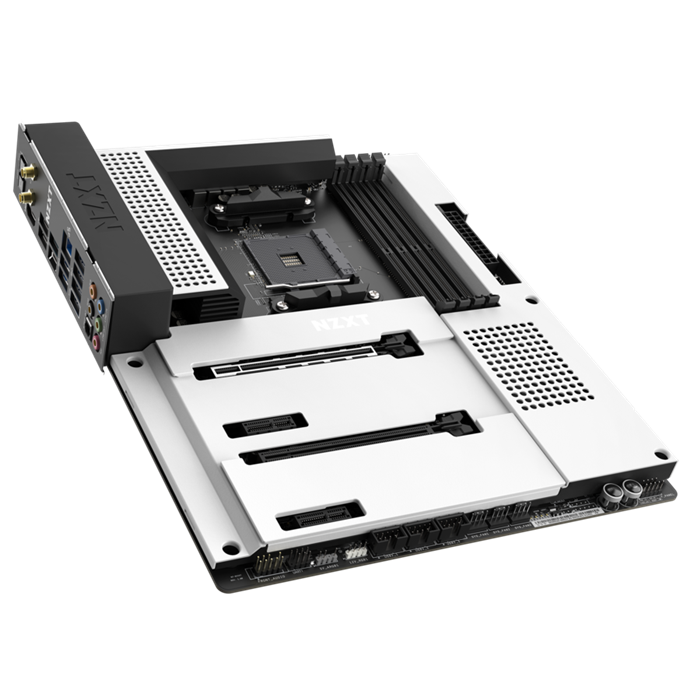

Mainboard NZXT N7 B550 Matte White

Sản phẩm

Bo mạch chủ

Tên Hãng

NZXT

Model

N7 B550 Matte White

CPU hỗ trợ

AMD

Chipset

B550

RAM hỗ trợ

Memory Channels: 4DDR4 (Dual channel)
Max Memory Size:128GB

• OC Frequency (Vermeer CPUs): 4666+ MHz

• OC Frequency (Matisse CPUs): 4666+ MHz

• OC Frequency (Renoir APUs): 4733+ MHz

• Base Frequency: 3200/ 2933/ 2667/ 2400/ 2133

Khe cắm mở rộng

• PCIe x16 (x16 mode) x 1 (Vermeer & Matisse - PCIe 4.0, Renoir - PCIe 3.0)

• PCIe x16 (x4 mode) x 1

• PCIe 3.0 x1 x 2

Ổ cứng hỗ trợ

• M.2 Type 2242/2260/2280 (x4 mode) x 1 (Vermeer & Matisse - PCIe 4.0, Renoir - PCIe 3.0)

• M.2 Type 2242/2260/2280 (PCIe 3.0 x2 & SATA mode) x 1

• SATA 6Gb/s x 6* (M2_2 and SATA3_5_6 share lanes)

Cổng kết nối (Internal)

Cổng kết nối (Back Panel)

• M.2 (M Key), Type 2242/2260/2280 x 1 (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x2 & SATA mode)

• M.2 (E Key) (For wireless cards) x 1

• SATA 6Gbps Ports x 6

• USB 3.2 Gen 2 Header (Type-C) x 1

• USB 3.2 Gen 1 Header x 1 (Up to 2 ports)

• USB 2.0 Header x 3 (Up to 6 ports)

• Front Panel Audio x 1

• CPU_FAN Connector x 1 (Up to 24W)

• AIO_PUMP Connector x 1 (Up to 24W)

• SYS_FAN Connector x 5 (Up to 24W)

• NZXT RGB LED Header x 2

• 5V ARGB Header x 1

• 12V RGB Header x 1

• 24-pin EATX Power x 1

• 8-pin ATX 12V Power x 1

• 4-pin ATX 12V Power x 1

• Power Button x 1

• Reset Button x 1

• POST LEDs x 4

LAN / Wireless

Realtek®: RTL8125BG 2.5G

AX210 Wi-Fi 6E, 802.11

V5.2

Kích cỡ

ATX
