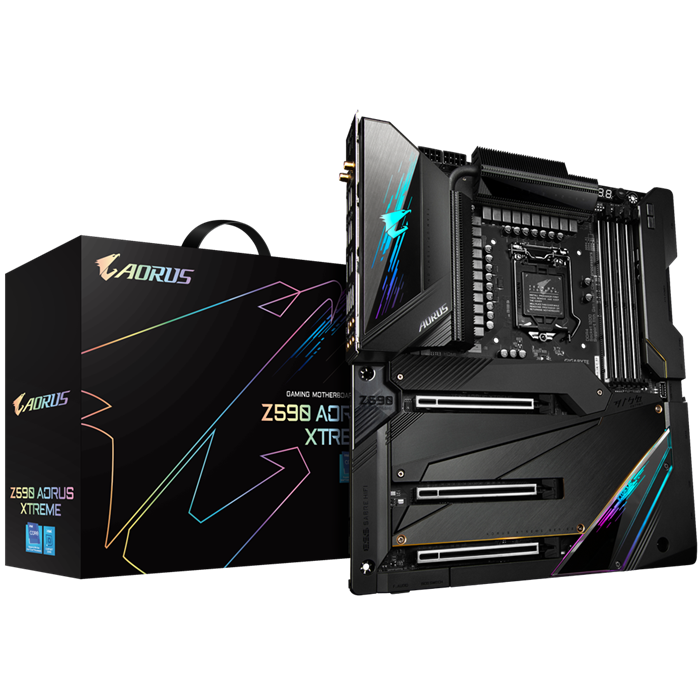

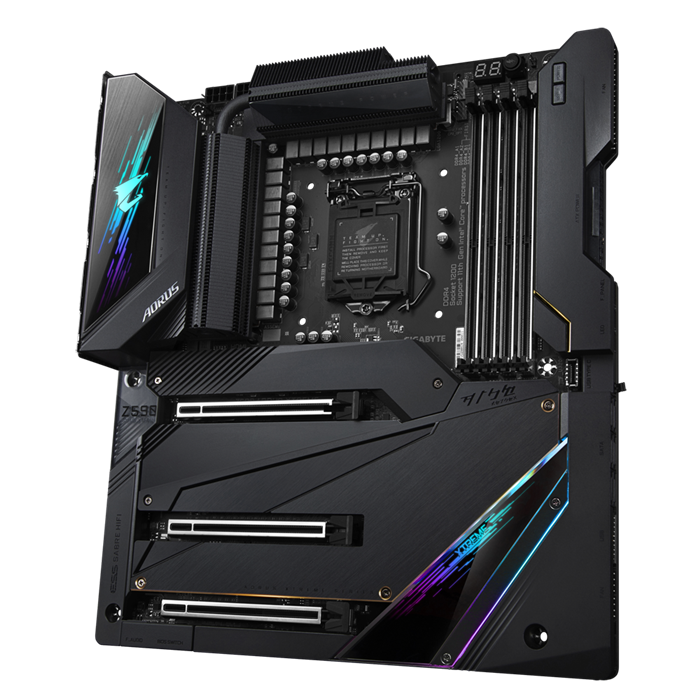

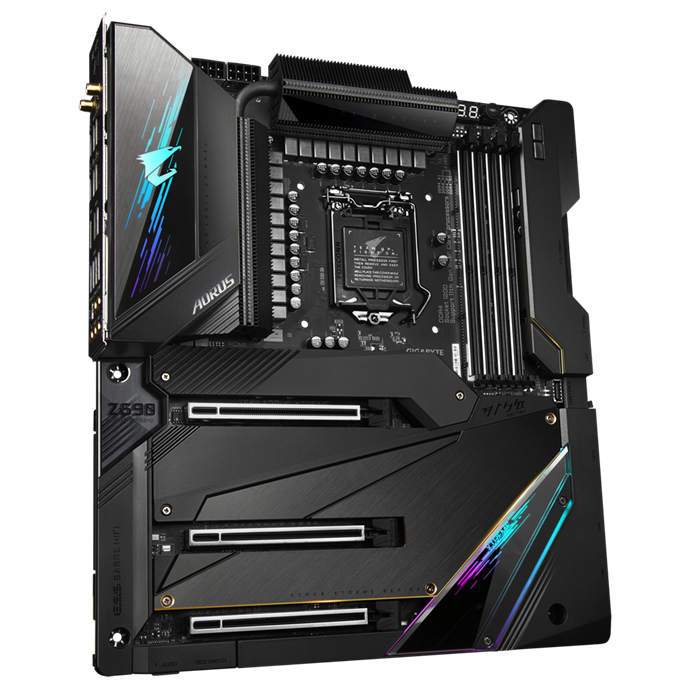

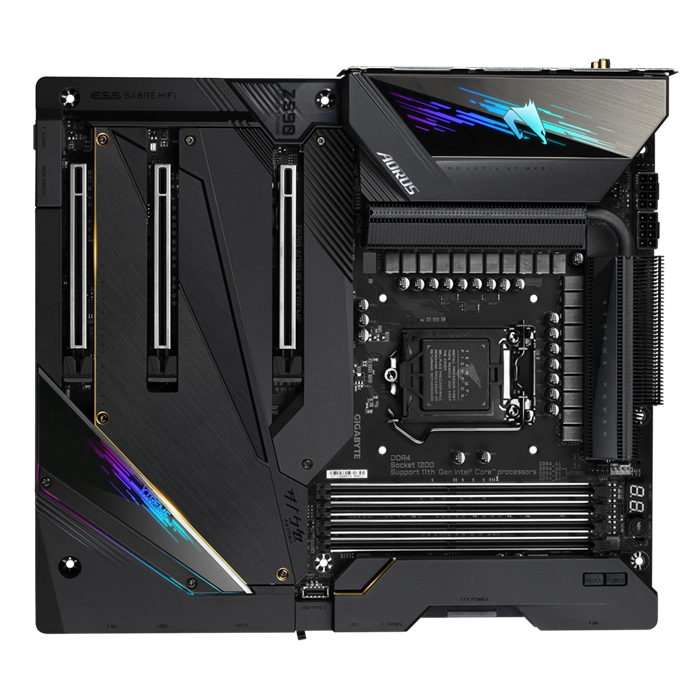

Mainboard GIGABYTE Z590 AORUS XTREME

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

Z590 AORUS XTREME

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

4 x DDR4 DIMM, tối đa 128GB
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
1 x PCI Express x16 slot, running at x4 (PCIEX4)

Ổ cứng hỗ trợ

CPU:
1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)

Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 6 x system fan headers
6. 2 x system fan/water cooling pump headers
7. 1 x noise detection header
8. 2 x integrated extension cable headers for addressable and RGB LED strips
9. 6 x SATA 6Gb/s connectors
10. 3 x M.2 Socket 3 connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x USB Type-C^® header, with USB 3.2 Gen 2x2 support
14. 1 x USB 3.2 Gen 1 header
15. 1 x USB 2.0/1.1 headers
16. 2 x temperature sensor headers
17. 1 x power button
18. 1 x reset button
19. 1 x OC Ignition button
20. 2 x BIOS switches
21. Voltage Measurement Points

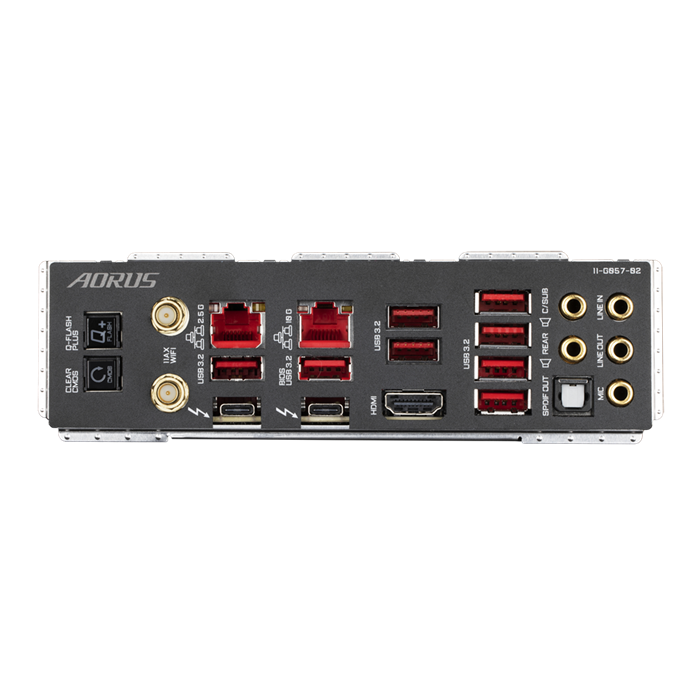

Cổng kết nối (Back Panel)

1. 1 x Q-Flash Plus button
2. 1 x Clear CMOS button
3. 2 x SMA antenna connectors (2T2R)
4. 2 x Thunderbolt™ 4 connector (USB Type-C^® port, with USB 3.2 Gen 2 support)
5. 8 x USB 3.2 Gen 2 Type-A ports (red)
6. 1 x HDMI port
7. 2 x RJ-45 port
8. 1 x optical S/PDIF Out connector
9. 5 x audio jacks

LAN / Wireless

LAN:
1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1)
1 x Intel^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2

Intel^® Wi-Fi 6 AX201:
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Kích cỡ

E-ATX Form Factor; 30.5cm x 27cm
