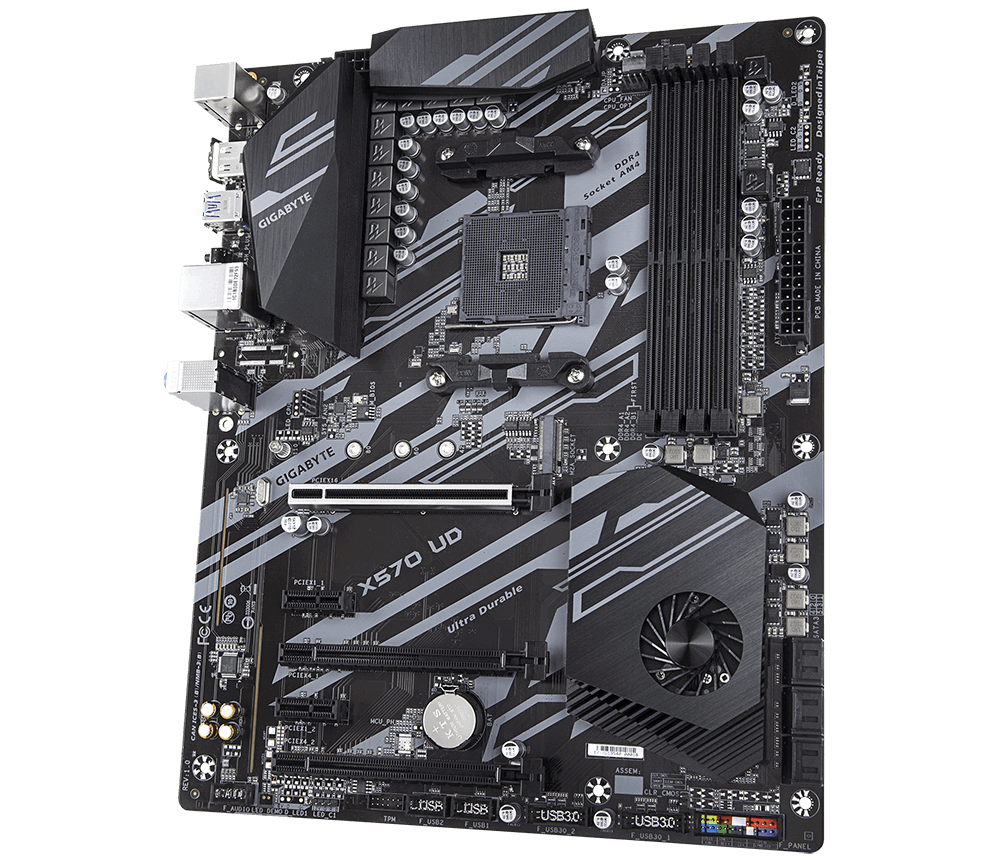

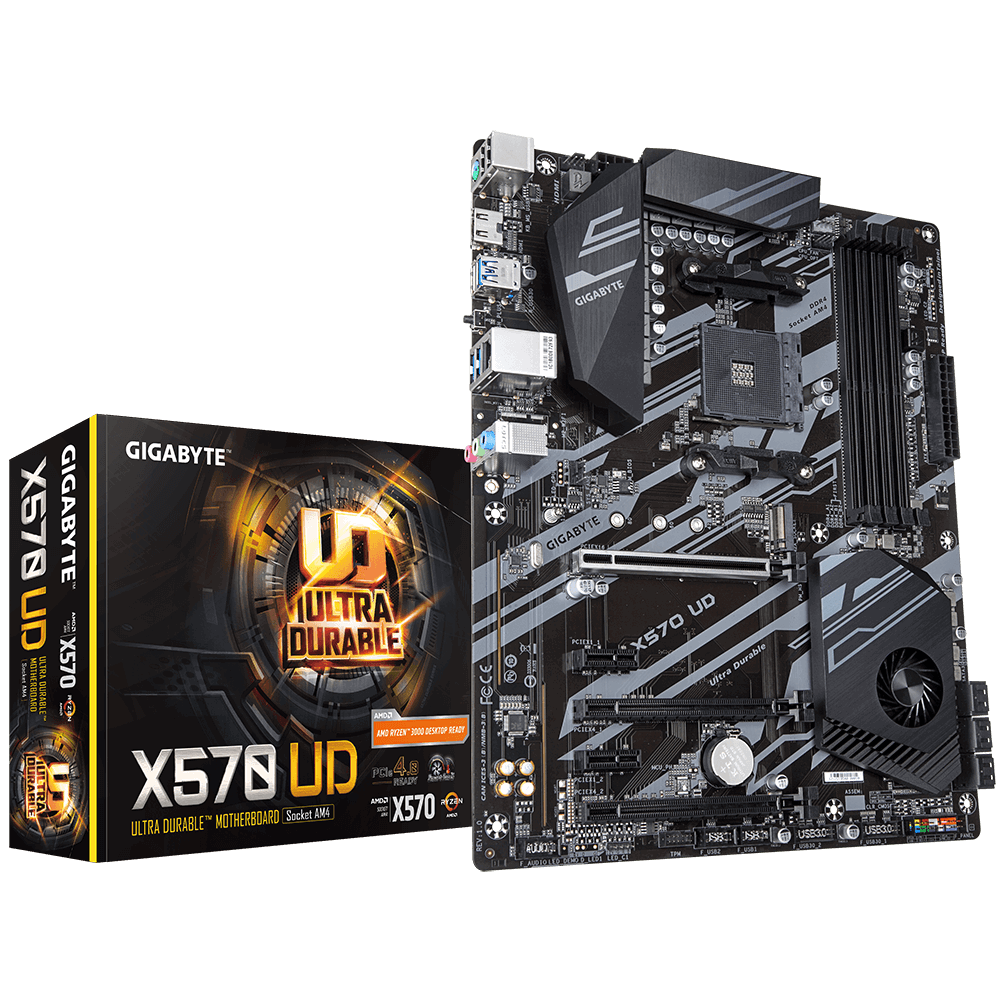

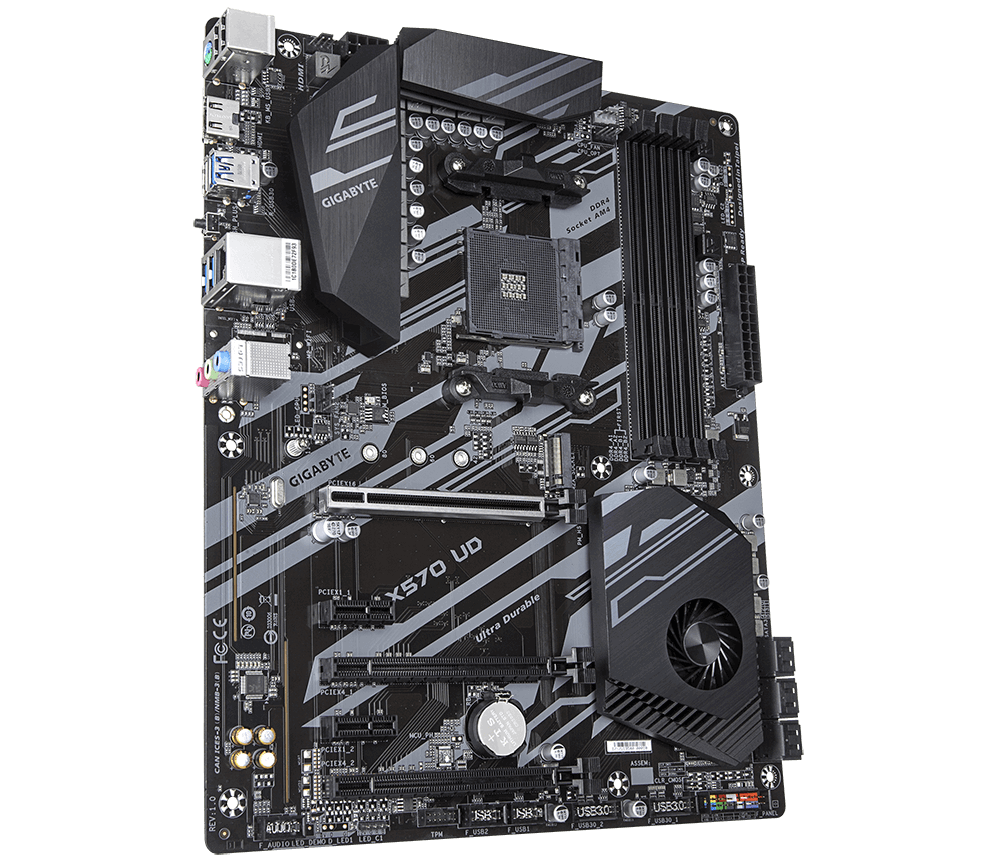

Mainboard GIGABYTE X570 UD

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

X570 UD

CPU hỗ trợ

AMD

Chipset

X570

RAM hỗ trợ

4 x DDR4 DIMM sockets supporting up to 128 GB
3rd Generation AMD Ryzen™ processors:
Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules

Khe cắm mở rộng

Integrated in the CPU (PCIEX16):
· 3rd Generation AMD Ryzen™ processors:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

· 2nd Generation AMD Ryzen™ processors:

1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

· 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:

1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1)
2. 2 x PCI Express x16 slots, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
   * For 3rd Generation AMD Ryzen™ processors only.
3. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
   * For 3rd Generation AMD Ryzen™ processors only.

Ổ cứng hỗ trợ

Integrated in the CPU:
· 3rd Generation AMD Ryzen™ processors:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)

· 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

Integrated in the Chipset:

1. 6 x SATA 6Gb/s connectors
2. Support for RAID 0, RAID 1, and RAID 10

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 2 x system fan headers
6. 1 x RGB LED strip header
7. 6 x SATA 6Gb/s connectors
8. 1 x M.2 Socket 3 connector
9. 1 x front panel header
10. 1 x front panel audio header
11. 2 x USB 3.2 Gen 1 headers
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
14. 1 x Clear CMOS jumper

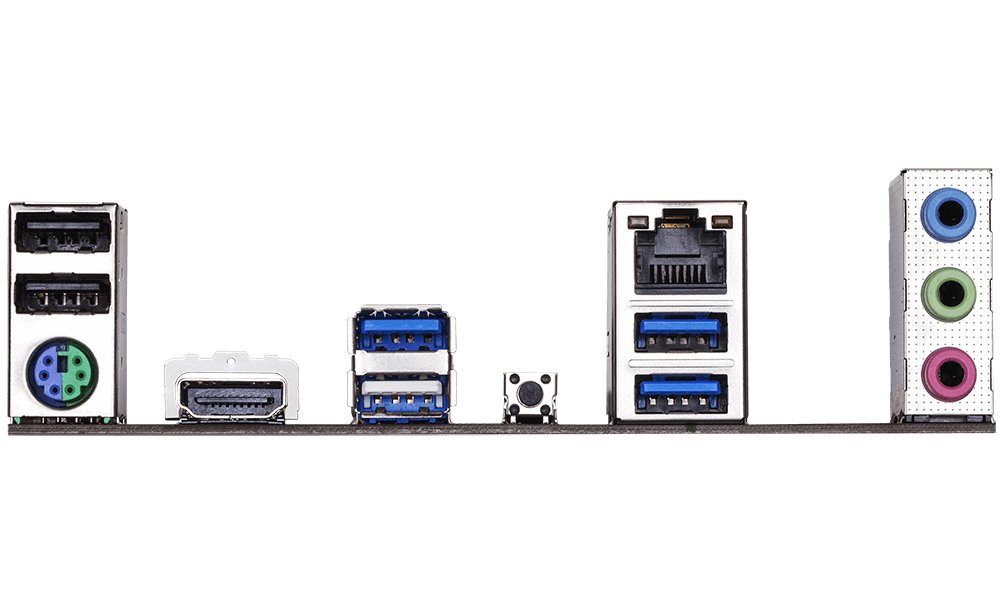

Cổng kết nối (Back Panel)

1. 1 x PS/2 keyboard/mouse port
2. 1 x HDMI port
3. 4 x USB 3.2 Gen 1 ports
4. 2 x USB 2.0/1.1 ports
5. 1 x Q-Flash Plus button
6. 1 x RJ-45 port
7. 3 x audio jacks

LAN / Wireless

Realtek^® GbE LAN chip (10/100/1000 Mbit)

Kích cỡ

ATX Form Factor; 30.5cm x 24.4cm
