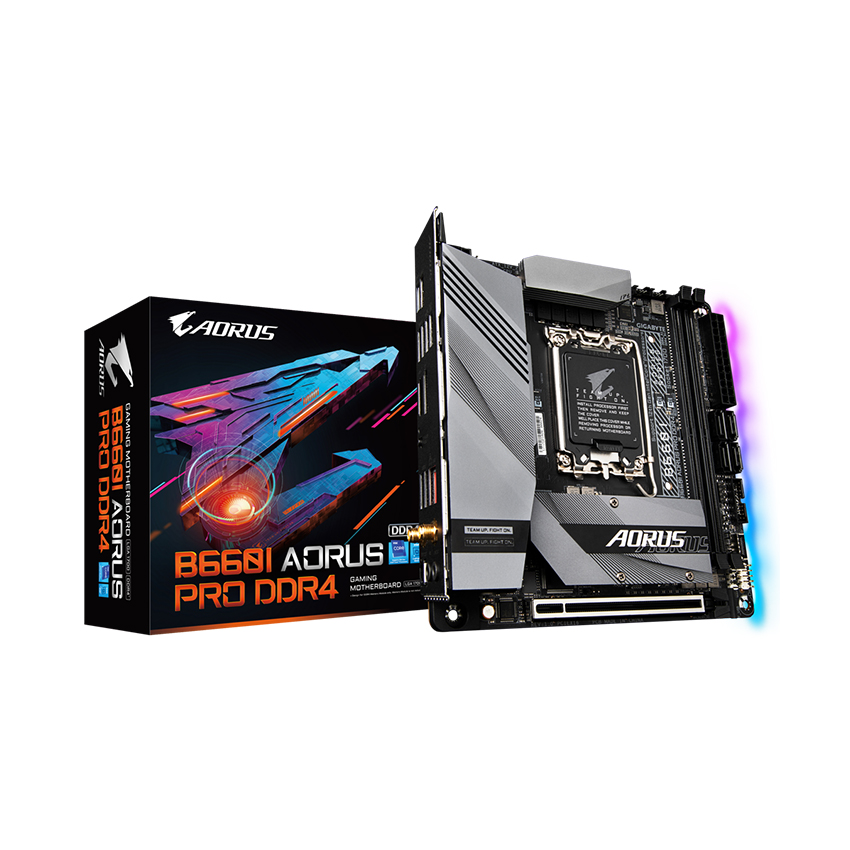

Mainboard Gigabyte B660I AORUS PRO DDR4

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Mode

B660I AORUS PRO DDR4

CPU hỗ trợ

Intel

Chipset

B660

RAM hỗ trợ

1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16

Ổ cứng hỗ trợ

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support)

Chipset:

1. 4 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 1 x system fan header
6. 1 x addressable LED strip header
7. 1 x RGB LED strip header
8. 1 x M.2 Socket 3 connector
9. 4 x SATA 6Gb/s connectors
10. 1 x front panel header
11. 1 x front panel audio header
12. 1 x speaker header
13. 1 x USB Type-C^® header, with USB 3.2 Gen 1 support
14. 1 x USB 3.2 Gen 1 header
15. 1 x USB 2.0/1.1 header
16. 1 x reset jumper
17. 1 x Clear CMOS jumper
18. 1 x chassis intrusion header

Cổng kết nối (Back Panel)

1. 1 x USB Type-C^® port, with USB 3.2 Gen 2 support
2. 1 x USB 3.2 Gen 2 Type-A port (red)
3. 4 x USB 3.2 Gen 1 ports
4. 2 x USB 2.0/1.1 ports
5. 1 x DisplayPort
6. 1 x HDMI 2.0 port
7. 1 x Q-Flash Plus button
8. 1 x RJ-45 port
9. 2 x SMA antenna connectors (2T2R)
10. 1 x optical S/PDIF Out connector
11. 2 x audio jacks

LAN / Wireless

1. Intel^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Kích cỡ

1. Mini-ITX Form Factor; 17.0cm x 17.0cm
