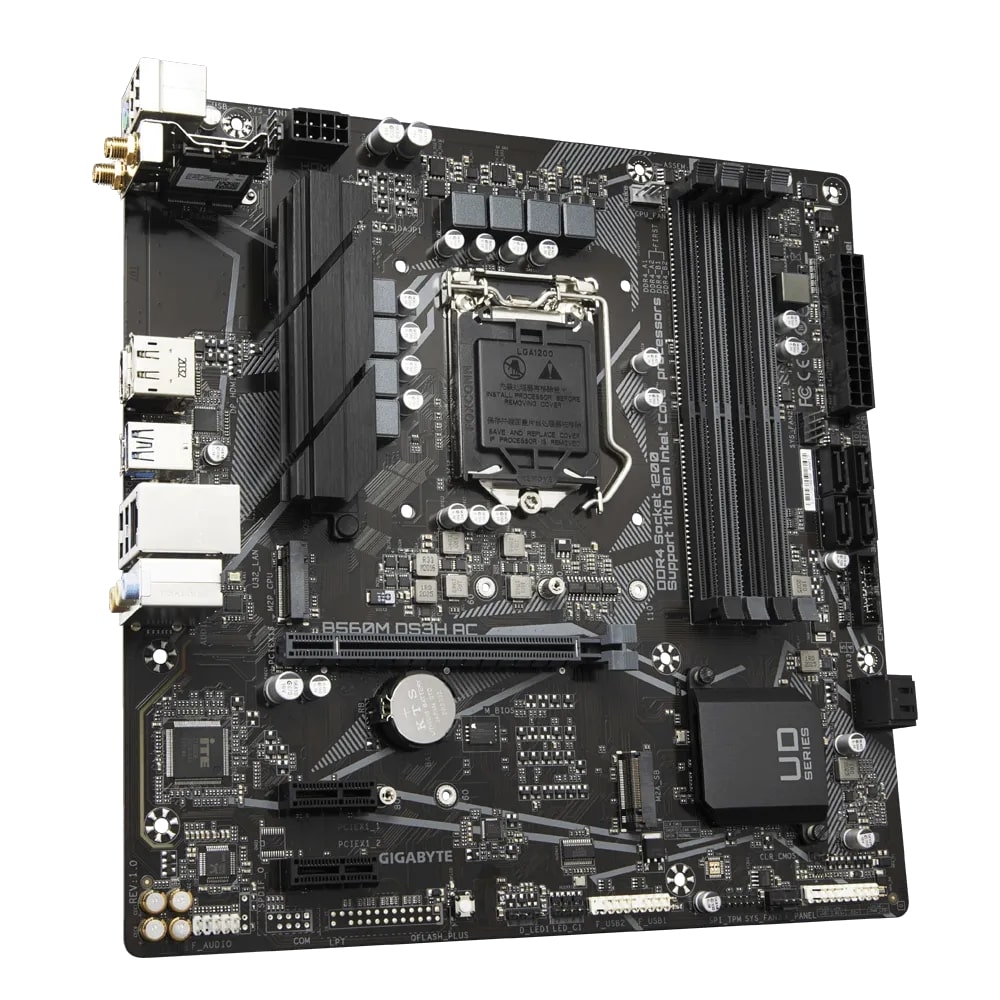

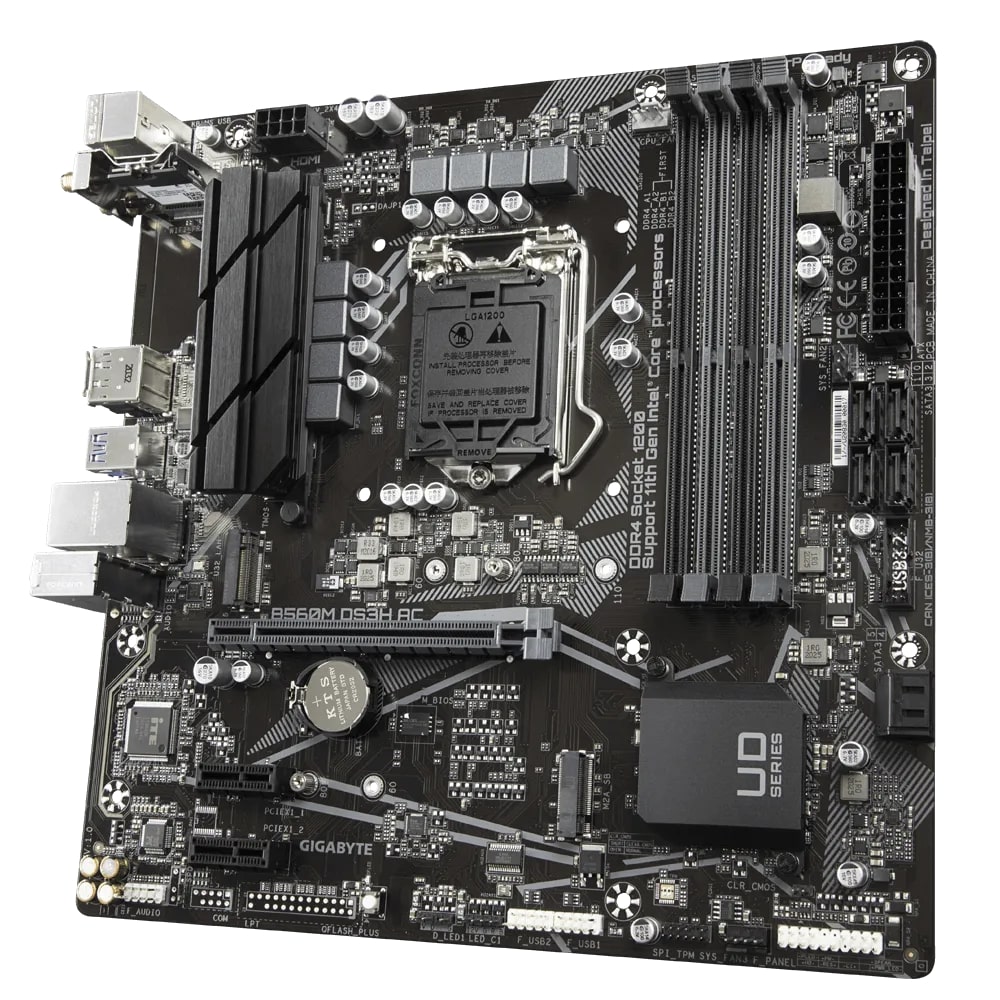

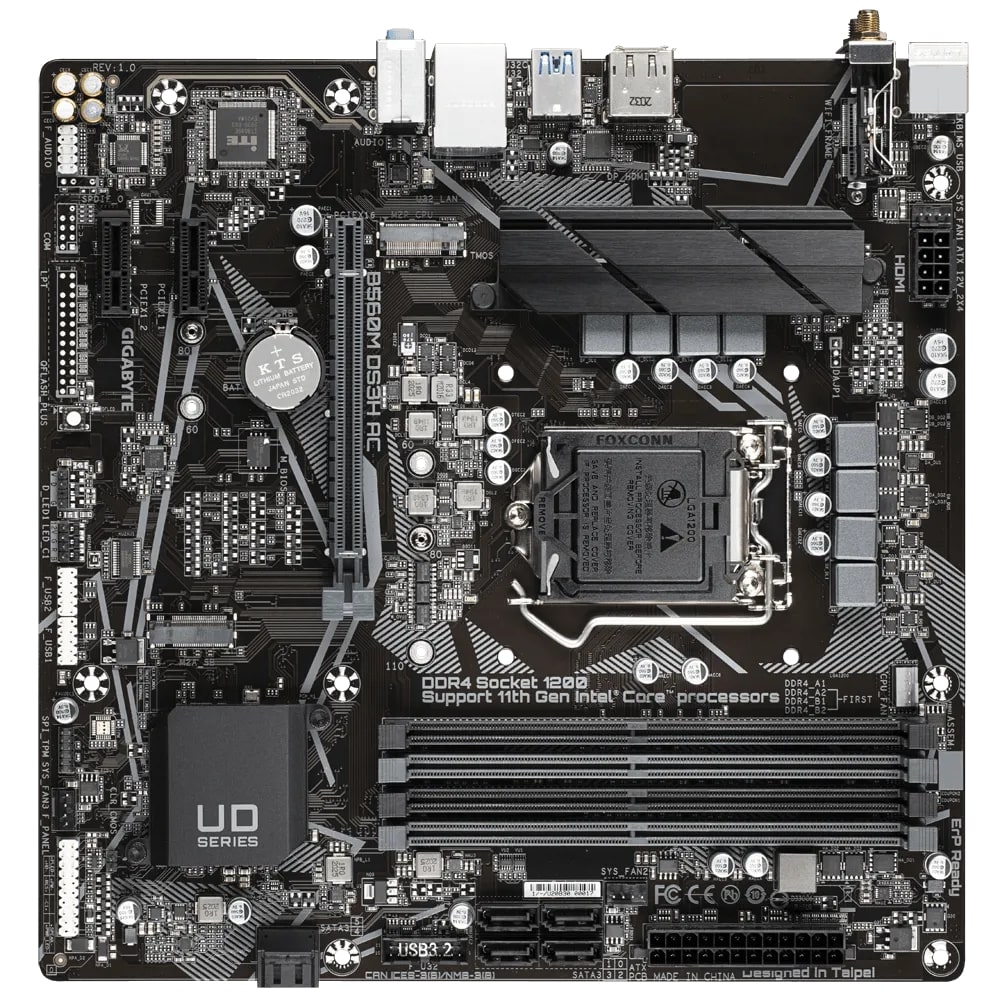

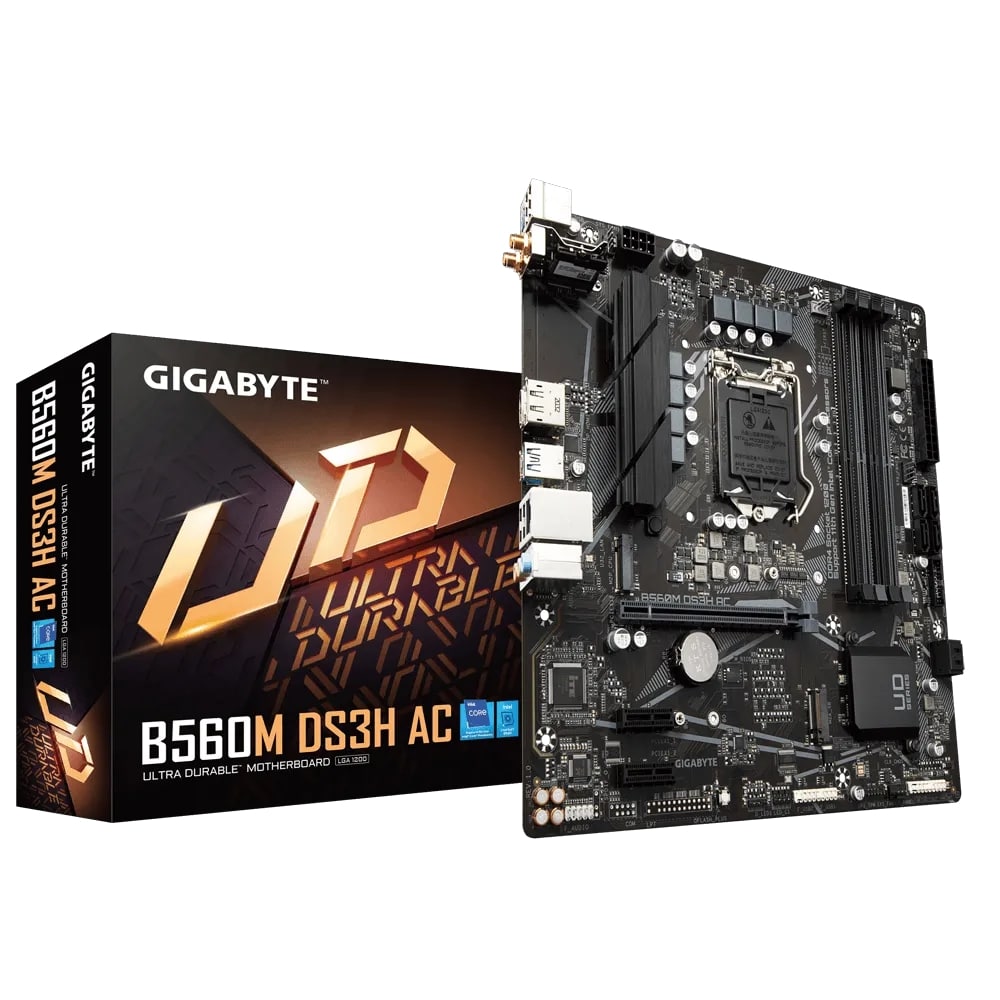

Mainboard GIGABYTE B560M DS3H AC

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

B560M DS3H AC

CPU hỗ trợ

Intel

Chipset

B560

RAM hỗ trợ

1. 11th Generation Intel^® Core™ i9/i7/i5 processors:
   Support for DDR4 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
2. 10th Generation Intel^® Core™ i9/i7 processors:
   Support for DDR4 2933/2666/2400/2133 MHz memory modules
3. 10th Generation Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
   Support for DDR4 2666/2400/2133 MHz memory modules
4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
5. Dual channel memory architecture
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8. Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

1. 1 x PCI Express x16 slot, running at x16
   (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note)
2. 2 x PCI Express x1 slots
   (The PCIEX1 slot conforms to PCI Express 3.0 standard.)

Ổ cứng hỗ trợ

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
2. 6 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 3 x system fan headers
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 6 x SATA 6Gb/s connectors
8. 2 x M.2 Socket 3 connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB 3.2 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
14. 1 x Clear CMOS jumper
15. 1 x Q-Flash Plus button

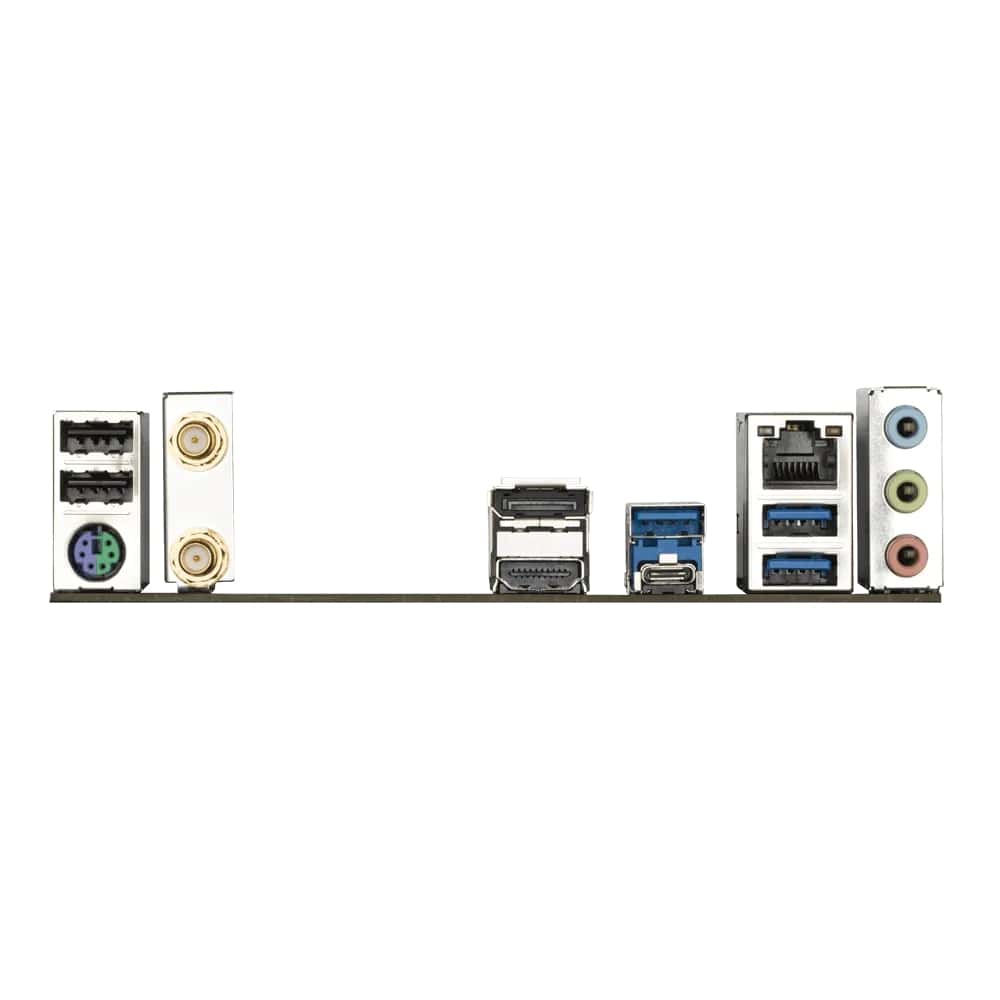

Cổng kết nối (Back Panel)

1. 2 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 2 x SMA antenna connectors (1T1R)
4. 1 x DisplayPort
5. 1 x HDMI port
6. 3 x USB 3.2 Gen 1 ports
7. 1 x USB Type-C^® port, with USB 3.2 Gen 1 support
8. 1 x RJ-45 port
9. 3 x audio jacks

LAN

1. Realtek^® GbE LAN chip (1000/100 Mbit)

Wireless

1. WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 4.2
3. Support for 11ac wireless standard and up to 433 Mbps data rate

Kích cỡ

1. Micro ATX Form Factor; 24.4cm x 24.4cm
