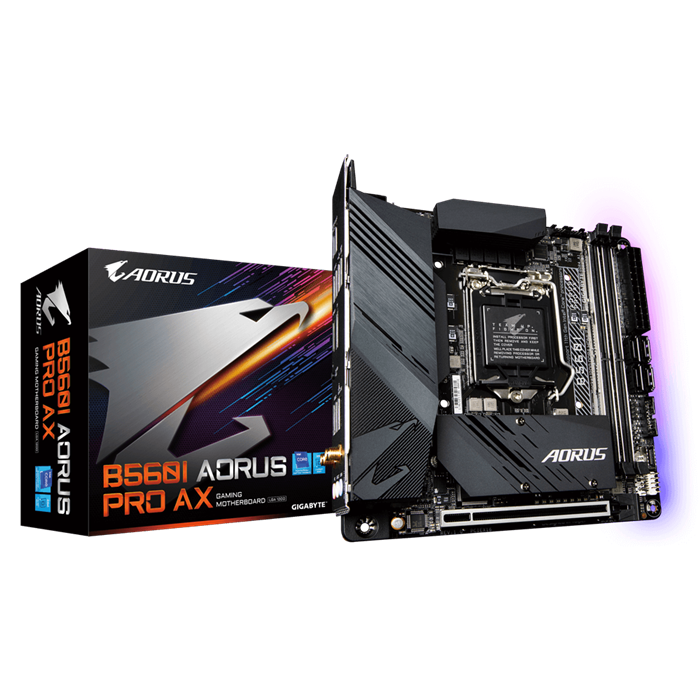

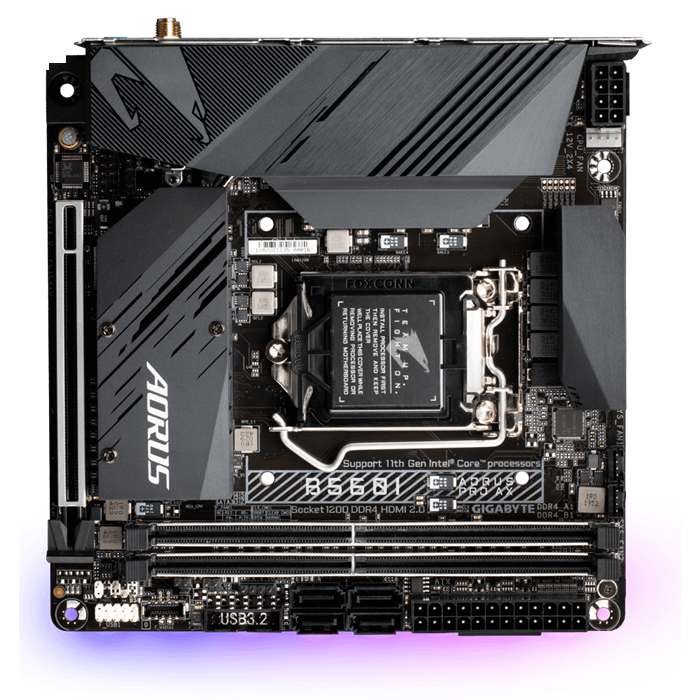

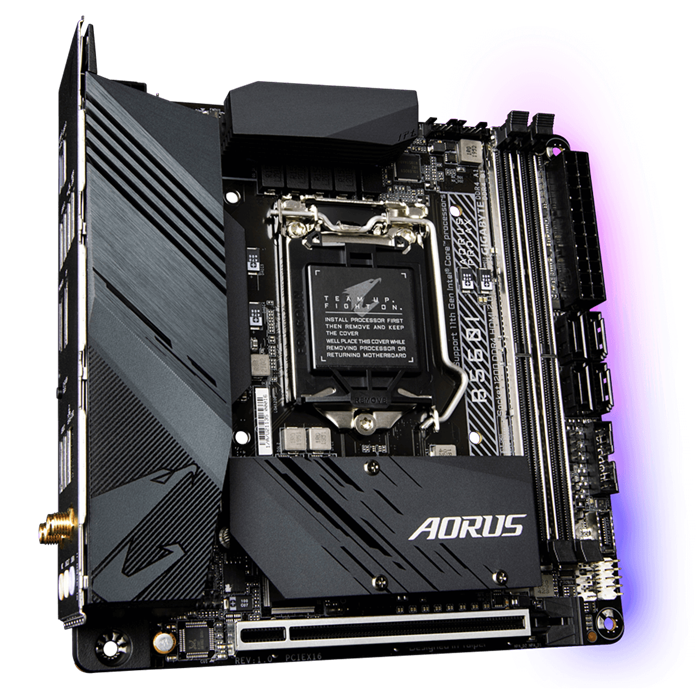

Mainboard GIGABYTE B560I AORUS PRO AX

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

B560I AORUS PRO AX

CPU hỗ trợ

Intel

Chipset

B560

RAM hỗ trợ

2 x DDR4 memory slots, support up to 64GB DDR4
11th Generation Intel^® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
10th Generation Intel^® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:Support for DDR4 2666/2400/2133 MHz memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16

Ổ cứng hỗ trợ

1 x M.2 connector
4 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C^® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper
1 x chassis intrusion header

Cổng kết nối (Back Panel)

1 x DisplayPort
1 x HDMI port
1 x USB Type-C^® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks

LAN / Wireless

LAN: Intel^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

WIFI: Intel^® Wi-Fi 6 AX200

Kích cỡ

Mini-ITX Form Factor; 17.0cm x 17.0cm
