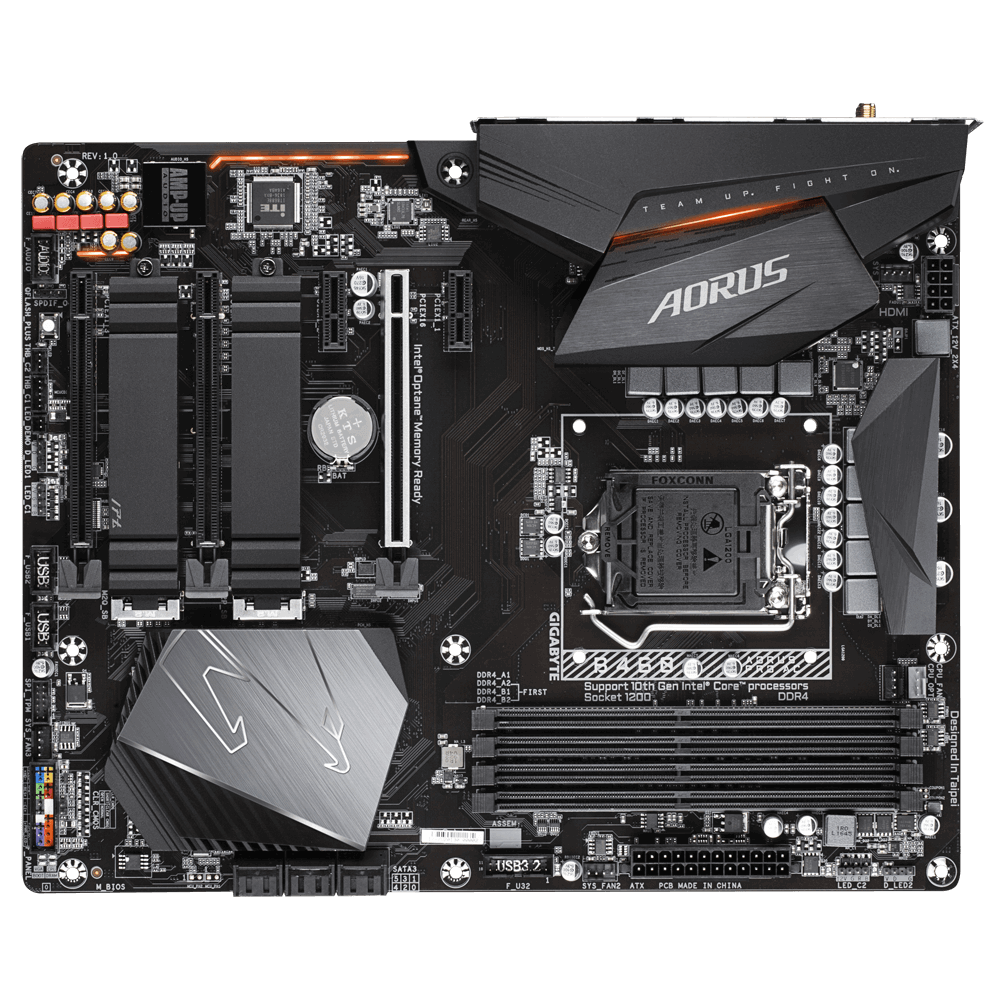

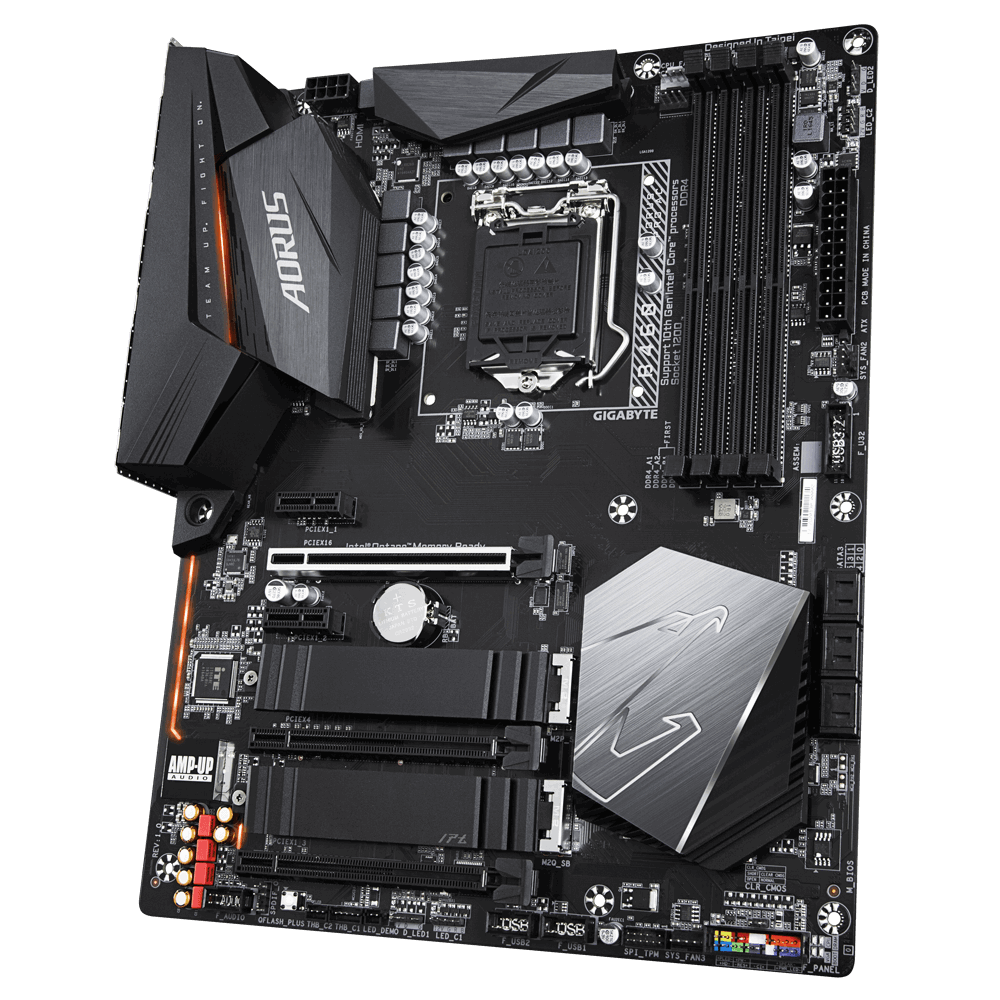

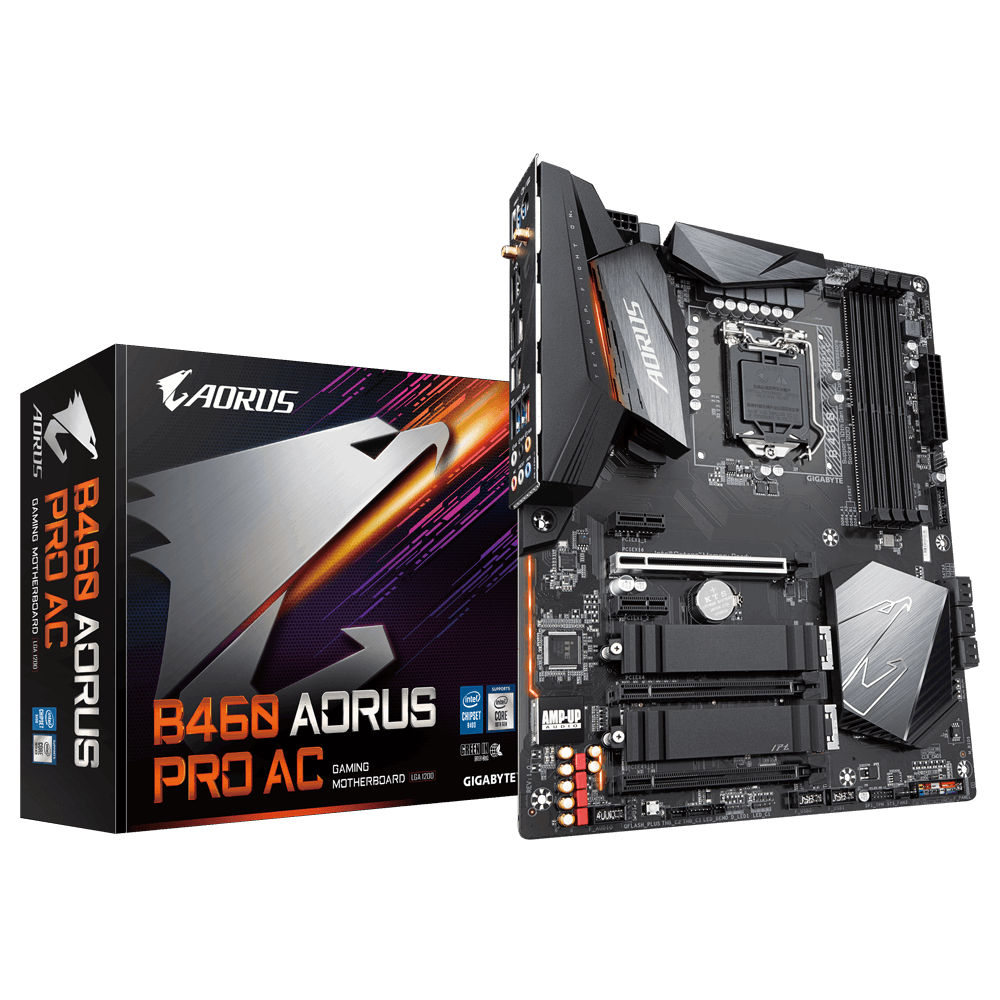

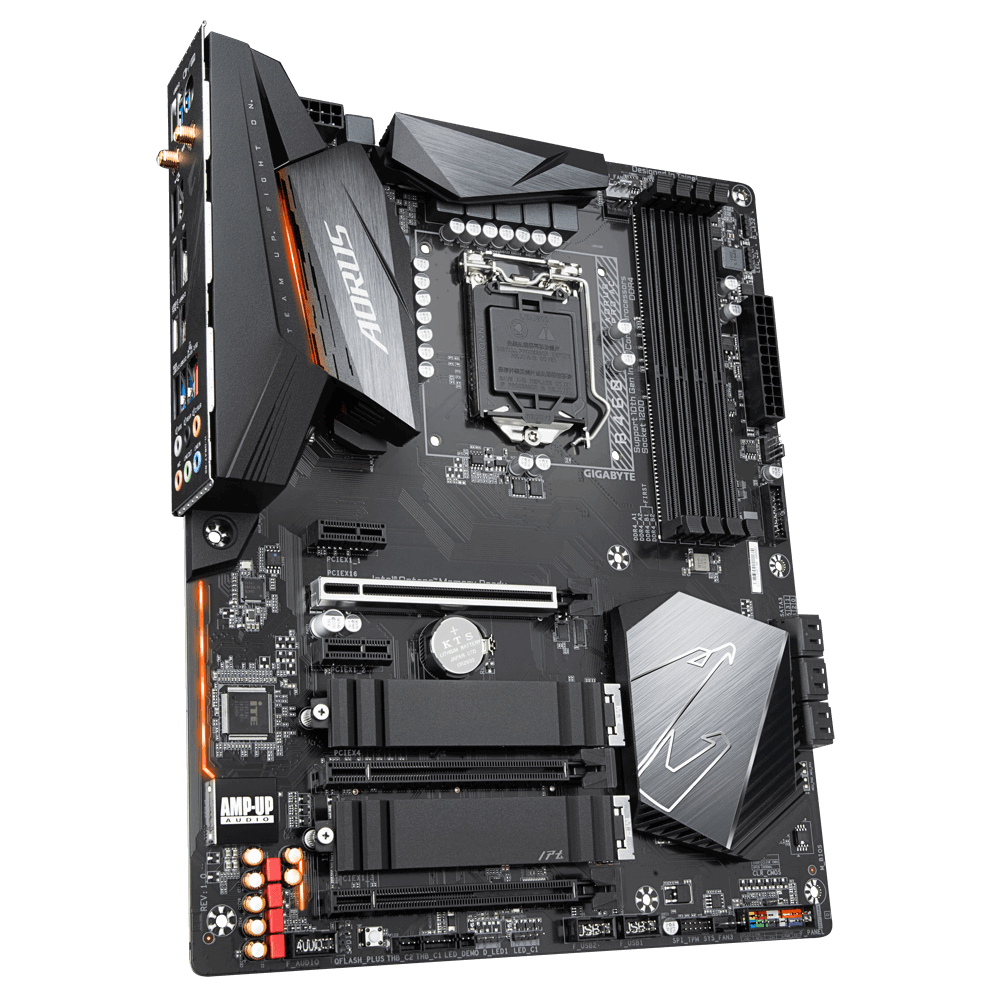

Mainboard GIGABYTE B460 AORUS PRO AC

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

B460 AORUS PRO AC

CPU hỗ trợ

Intel

Chipset

B460

RAM hỗ trợ

4 x DDR4 DIMM, up to 128 GB
Intel^® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz
Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
Support for DDR4 2666/2400/2133 MHz

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
3 x PCI Express x1 slots

Ổ cứng hỗ trợ

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB)
6 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 3 x system fan headers
6. 2 x addressable LED strip headers
7. 2 x RGB LED strip headers
8. 6 x SATA 6Gb/s connectors
9. 2 x M.2 Socket 3 connectors
10. 1 x front panel header
11. 1 x front panel audio header
12. 1 x S/PDIF Out header
13. 1 x USB 3.2 Gen 1 header
14. 2 x USB 2.0/1.1 headers
15. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
16. 2 x Thunderbolt™ add-in card connectors
17. 1 x Clear CMOS jumper
18. 1 x Q-Flash Plus button

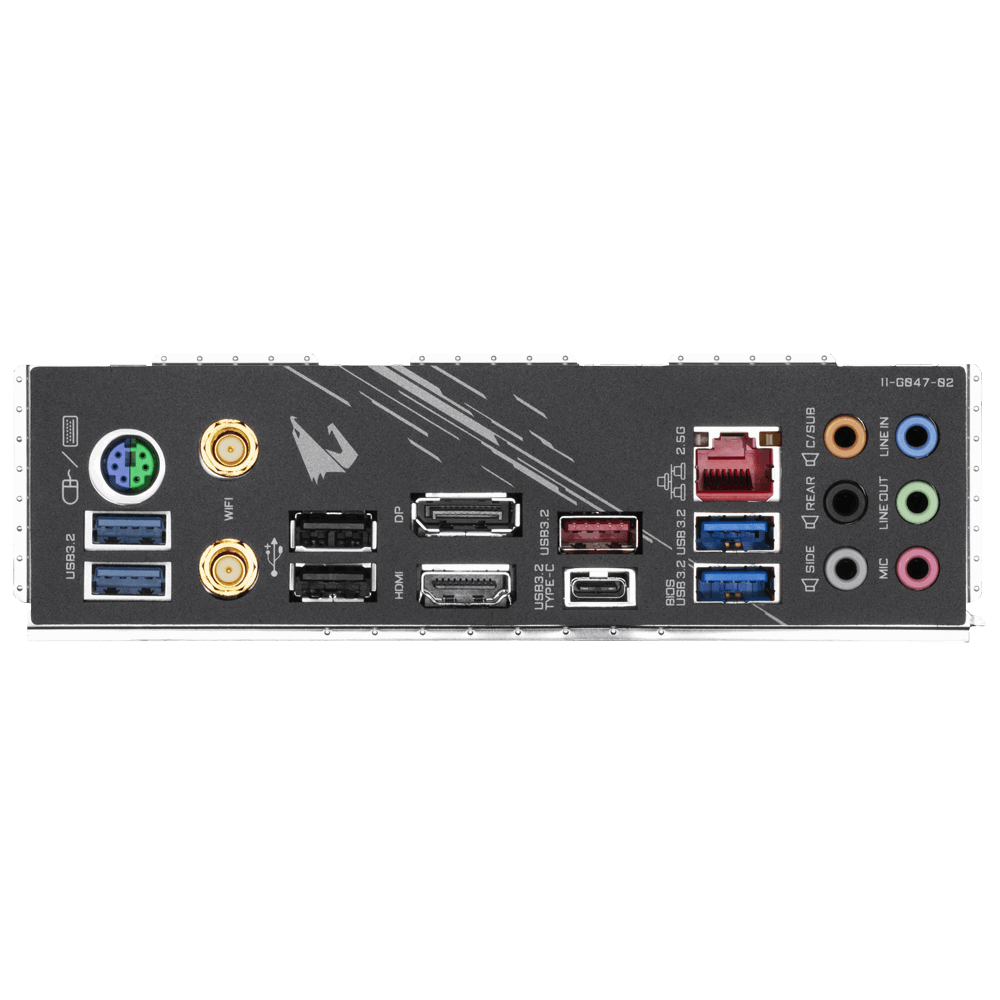

Cổng kết nối (Back Panel)

1. 1 x PS/2 keyboard/mouse port
2. 2 x SMA antenna connectors (2T2R)
3. 1 x DisplayPort
4. 1 x HDMI port
5. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
6. 1 x USB 3.2 Gen 2 Type-A port (red)
7. 4 x USB 3.2 Gen 1 ports
8. 2 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 6 x audio jacks

LAN / Wireless

Intel^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Kích cỡ

ATX Form Factor; 30.5cm x 24.4cm
