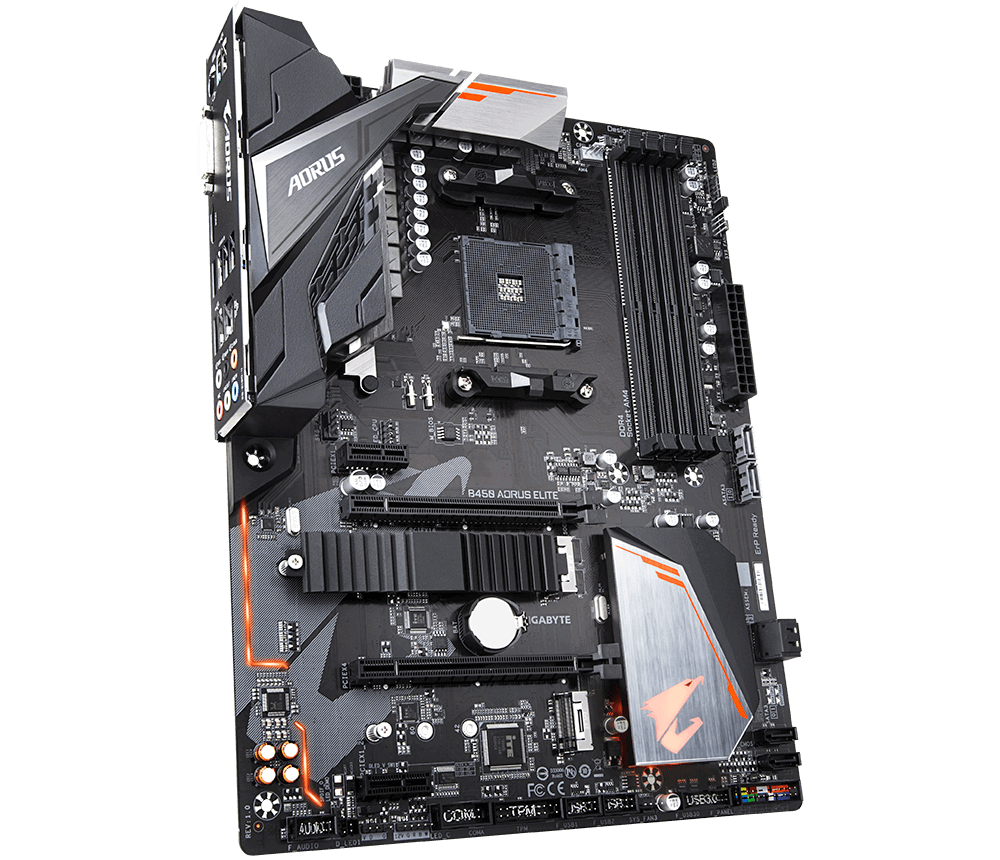

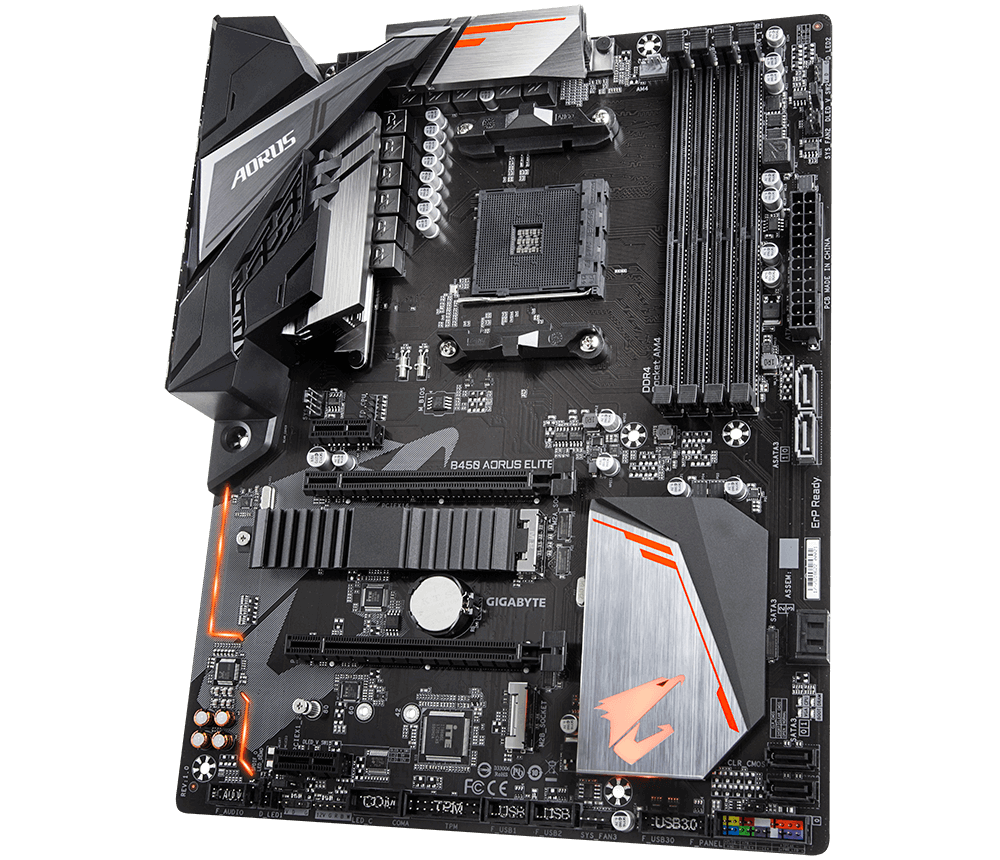

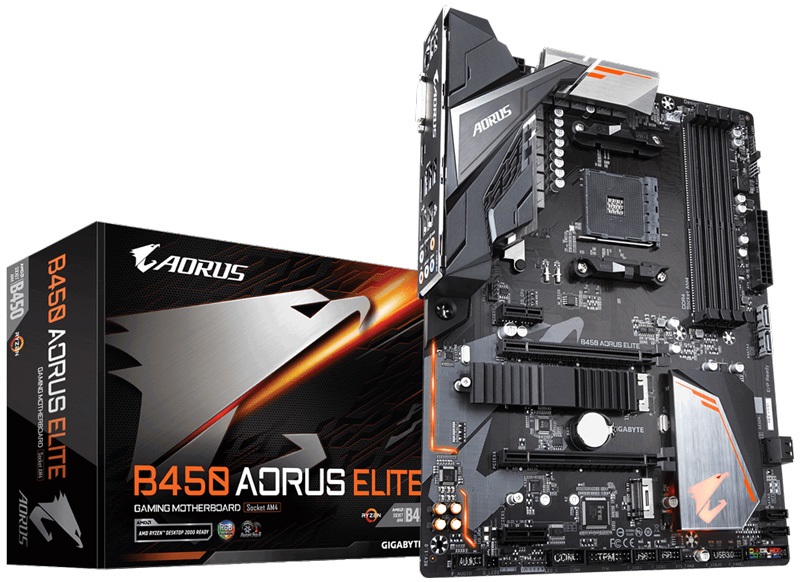

Mainboard GIGABYTE B450 Aorus Elite

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

B450 Aorus Elite

CPU hỗ trợ

AMD

Chipset

B450

RAM hỗ trợ

4 x DDR4 DIMM  slots, support up to 64GB DDR4 2933/2667/2400/2133 MHz

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots

Ổ cứng hỗ trợ

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)
6 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x CPU cooler LED strip/RGB LED strip extension cable header
1 x RGB (RGBW) LED strip header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
1 x serial port header1 x Clear CMOS jumper

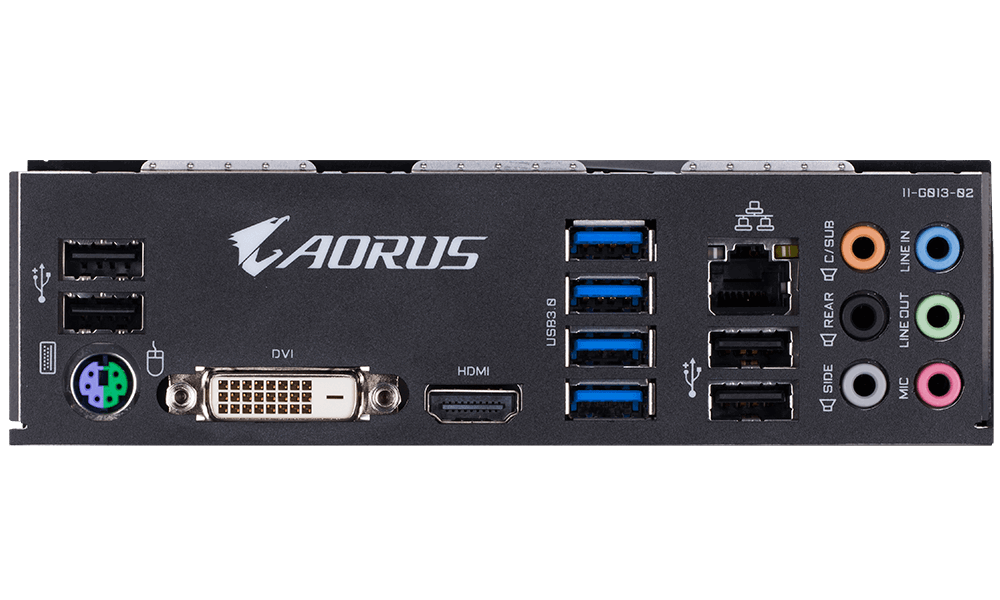

Cổng kết nối (Back Panel)

1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks

LAN / Wireless

Realtek^® GbE LAN chip (10/100/1000 Mbit)

Kích cỡ

ATX Form Factor; 30.5cm x 23.5cm
