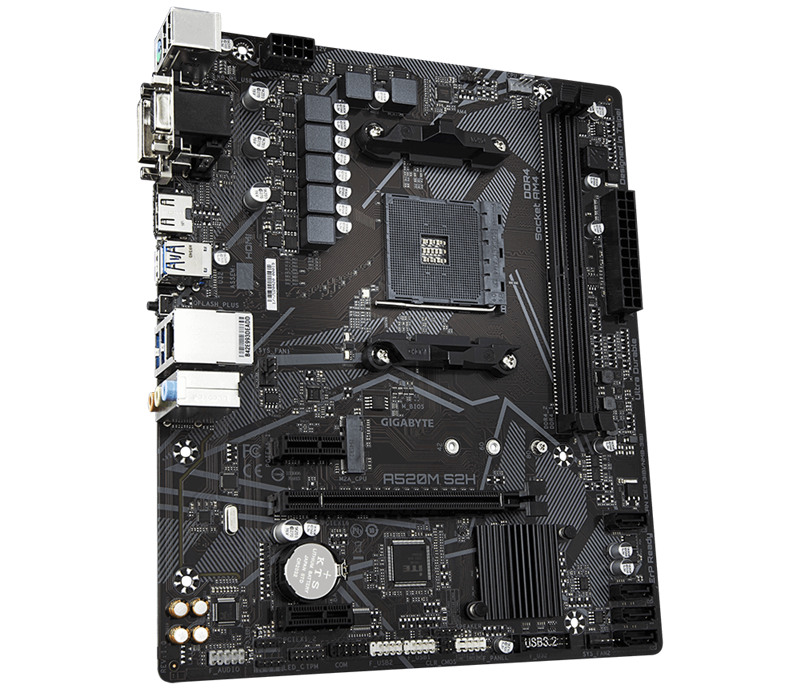

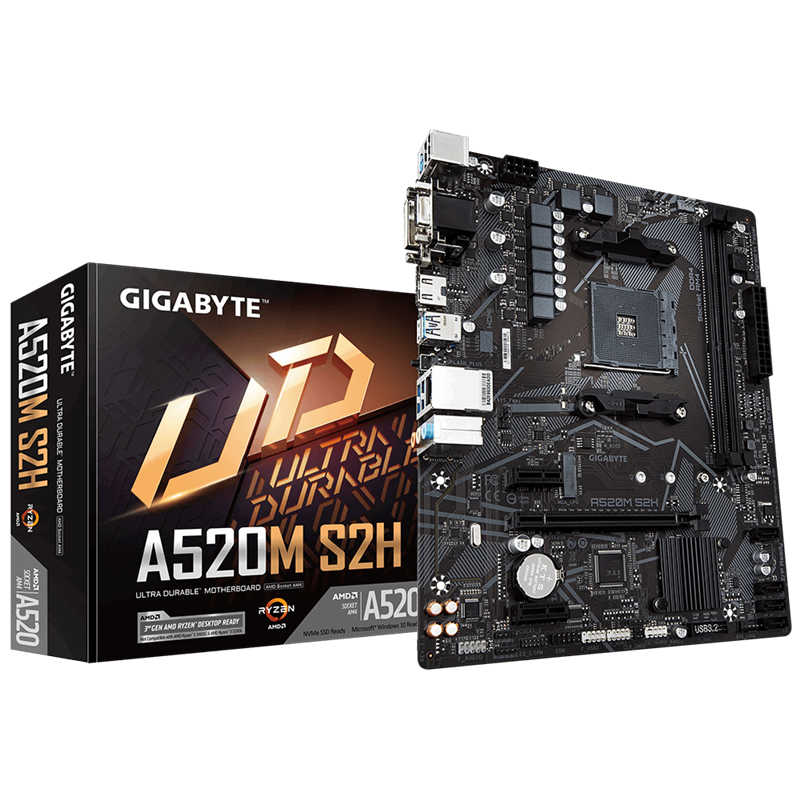

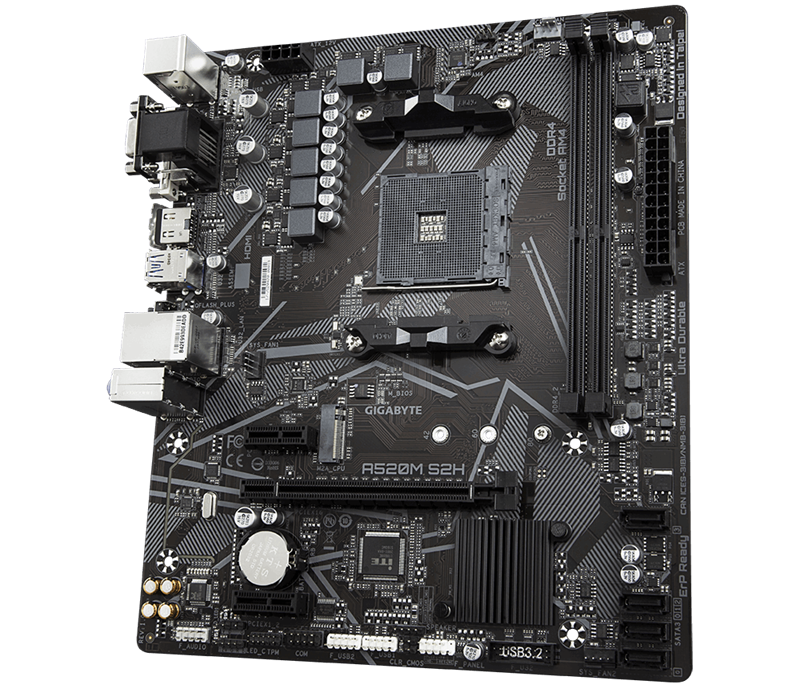

Mainboard GIGABYTE A520M S2H

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

A520M S2H

CPU hỗ trợ

AMD

Chipset

A520

RAM hỗ trợ

2 x DIMM slots, support up to 64GB
3rd Gen AMD Ryzen™ Processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Khe cắm mở rộng

CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0

Ổ cứng hỗ trợ

CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

Chipset: 4 x SATA 6Gb/s connectors/ Support for RAID 0, RAID 1, and RAID 10

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x speaker header
1 x chassis intrusion header
1 x Clear CMOS jumper

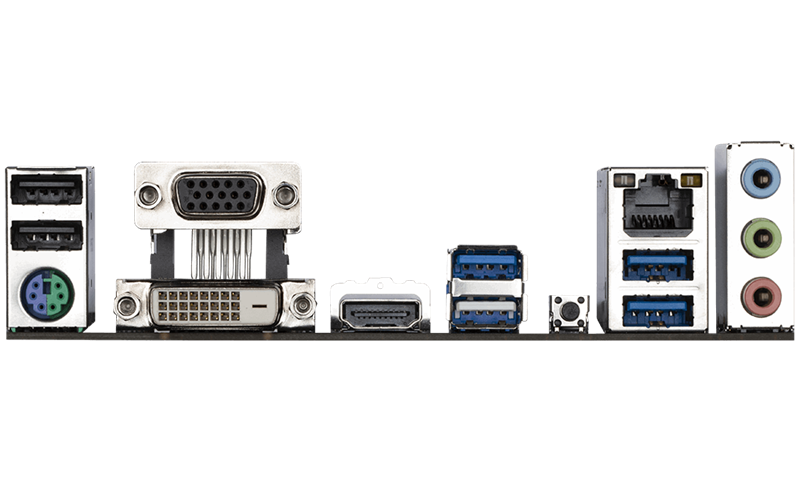

Cổng kết nối (Back Panel)

1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x Q-Flash Plus button
3 x audio jacks

LAN / Wireless

Realtek^® GbE LAN chip (1000 Mbit/100 Mbit)

Kích cỡ

Micro ATX Form Factor; 24.4cm x 20.5cm
