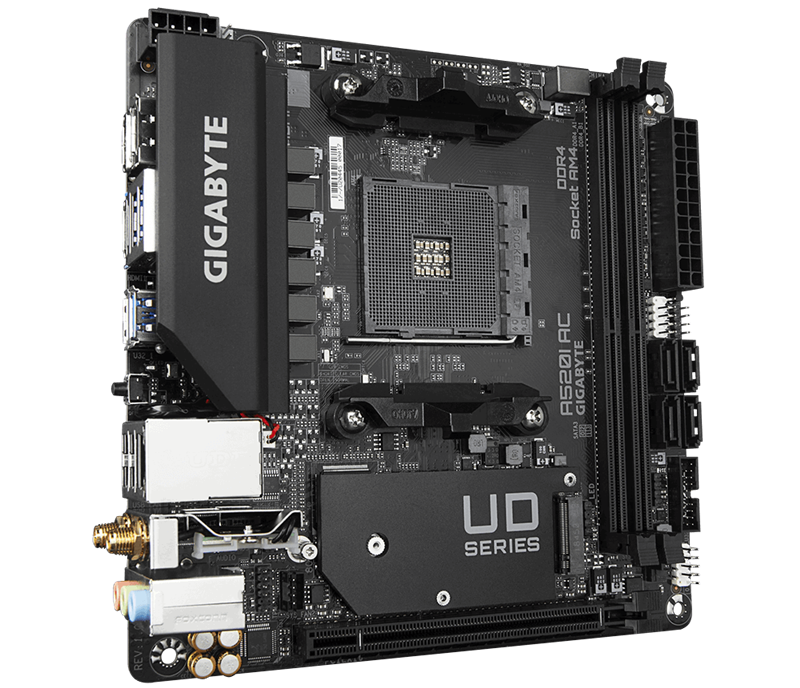

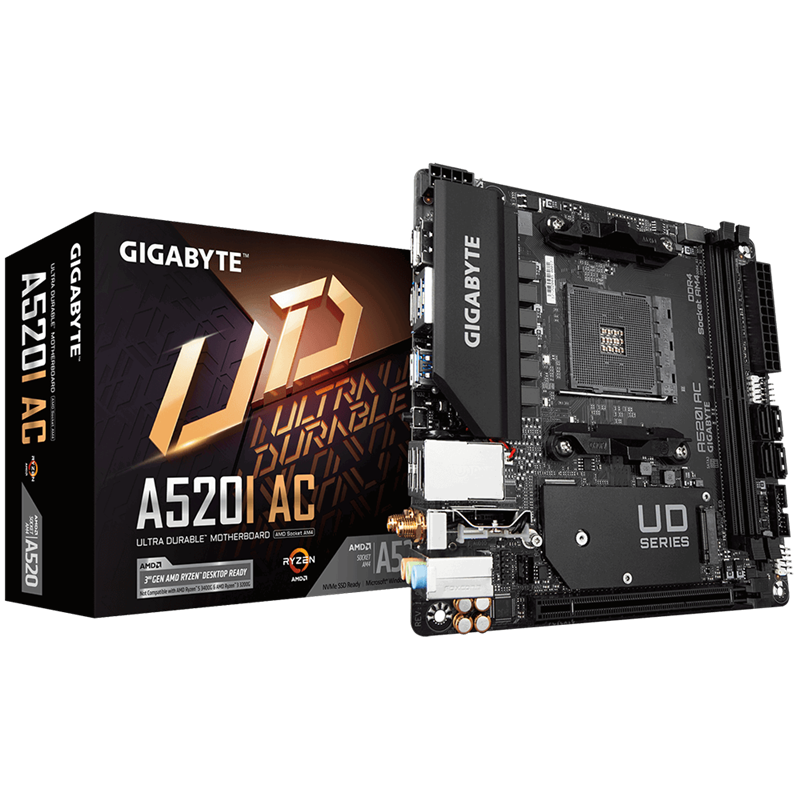

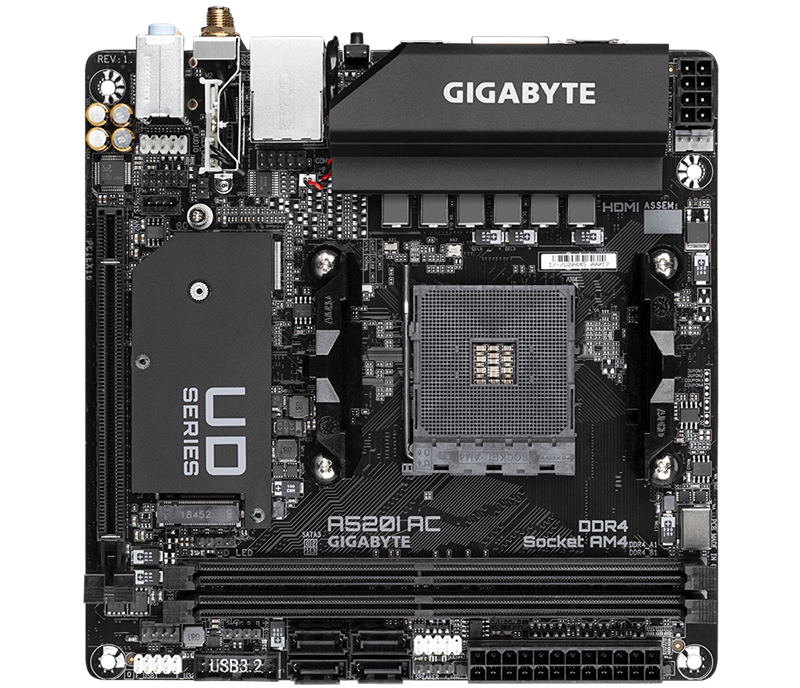

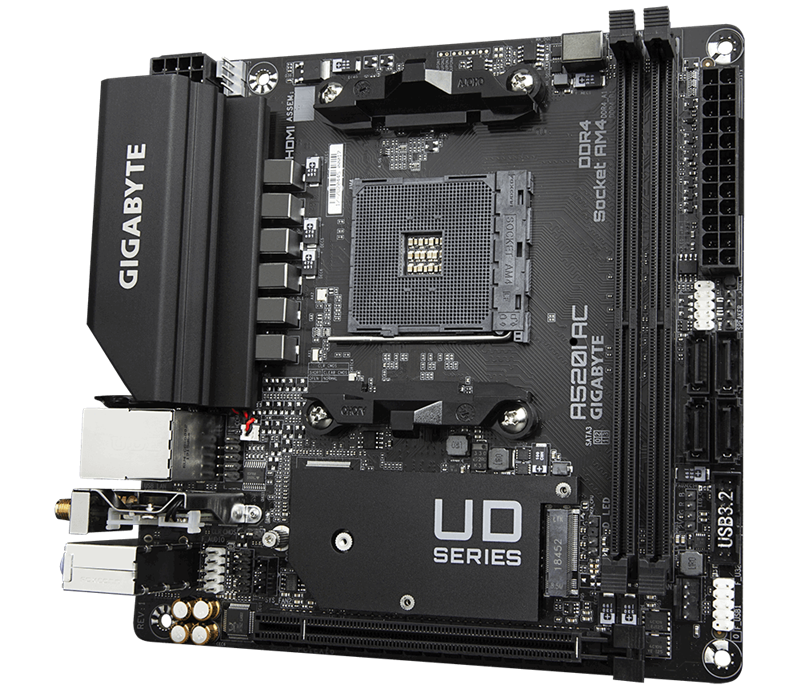

Mainboard GIGABYTE A520I AC

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

A520I AC

CPU hỗ trợ

AMD

Chipset

A520

RAM hỗ trợ

3rd Gen AMD Ryzen™ Processors:
Support for DDR4 5100(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
Support for DDR4 5300(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Ổ cứng hỗ trợ

Integrated in the CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper

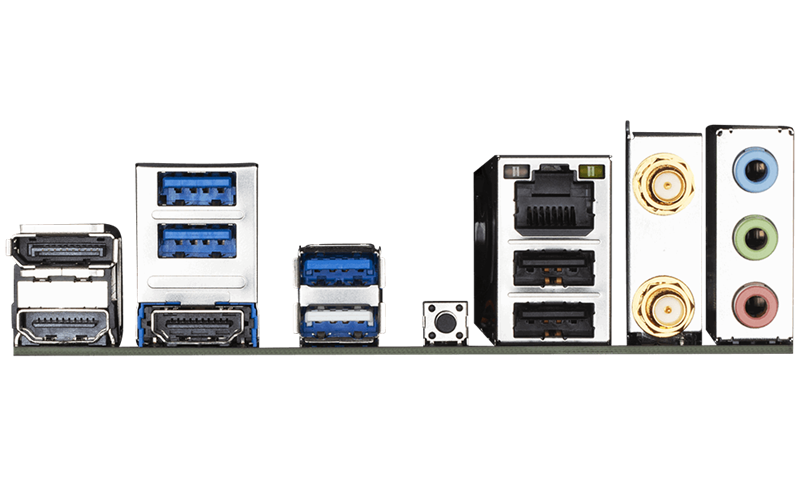

Cổng kết nối (Back Panel)

1 x DisplayPort
2 x HDMI ports
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 ports
2 x SMA antenna connectors (1T1R)
3 x audio jacks

LAN / Wireless

LAN:
Realtek^® GbE LAN chip (1000 Mbit/100 Mbit)
Intel^® Wi-Fi AC 3168
WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2

Kích cỡ

Mini-ITX Form Factor; 17.0cm x 17.0cm
