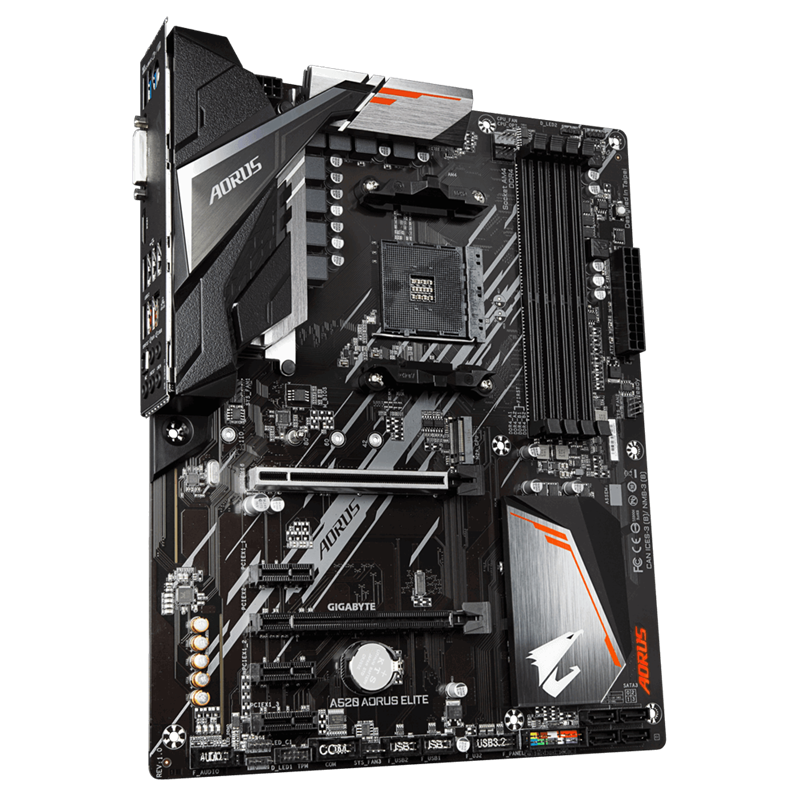

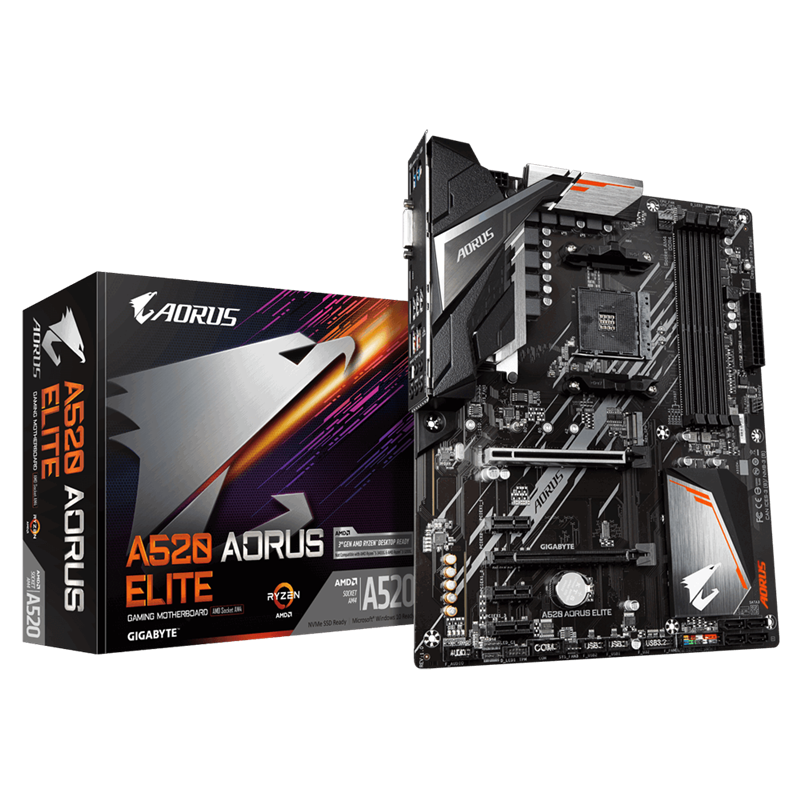

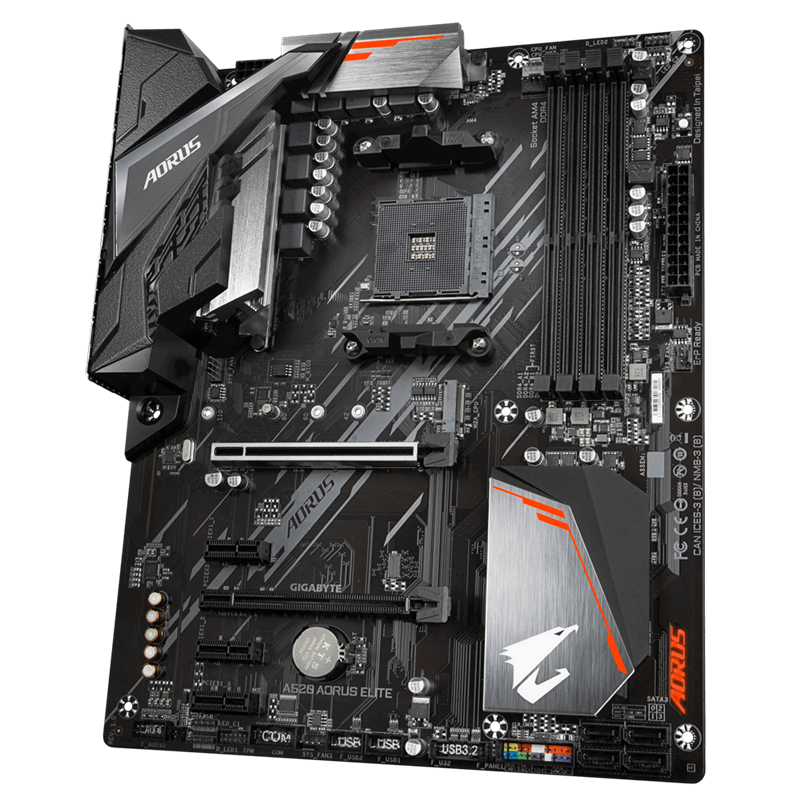

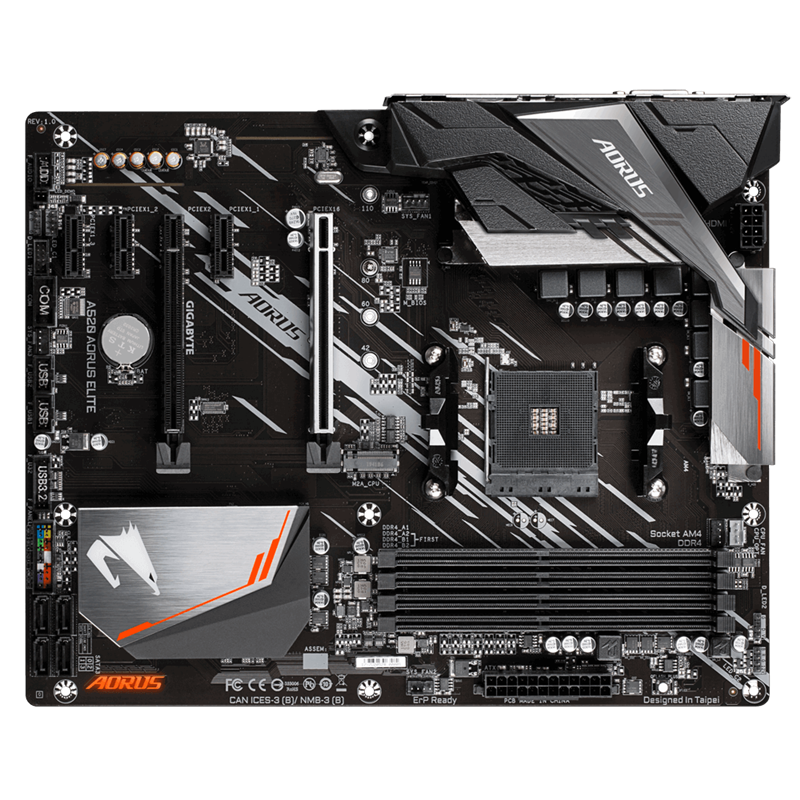

Mainboard GIGABYTE A520 AORUS ELITE

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

A520 AORUS ELITE

CPU hỗ trợ

AMD

Chipset

A520

RAM hỗ trợ

3rd Gen AMD Ryzen™ Processors:
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Khe cắm mở rộng

CPU:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)

Chipset:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
3 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2, PCIEX1_3)

Ổ cứng hỗ trợ

CPU:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

Chipset:4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

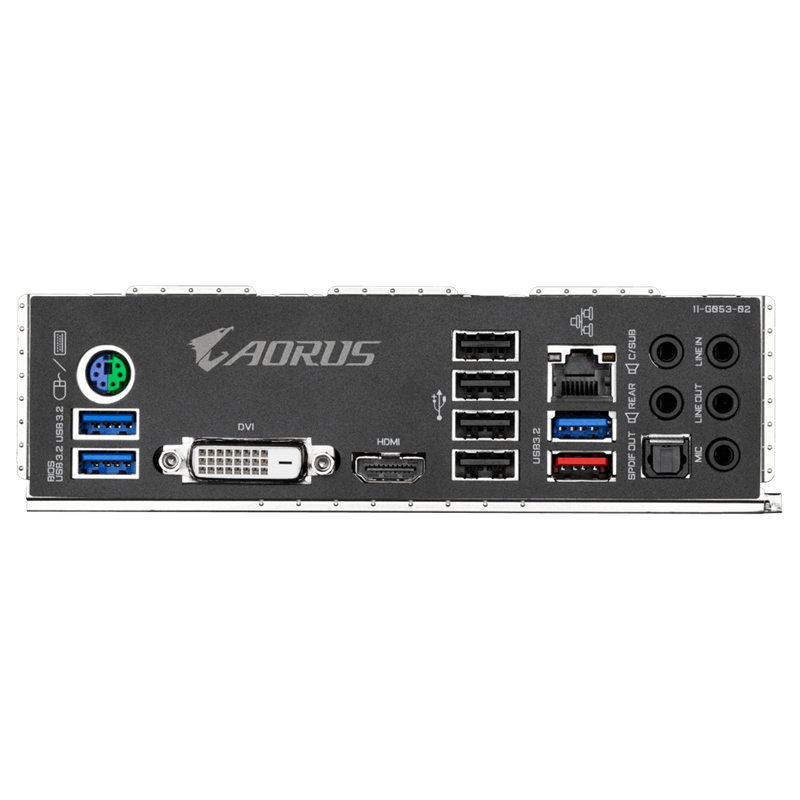

Cổng kết nối (Back Panel)

1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks

LAN / Wireless

Realtek^® GbE LAN chip (1000 Mbit/100 Mbit)

Kích cỡ

ATX Form Factor; 30.5cm x 24.4cm
