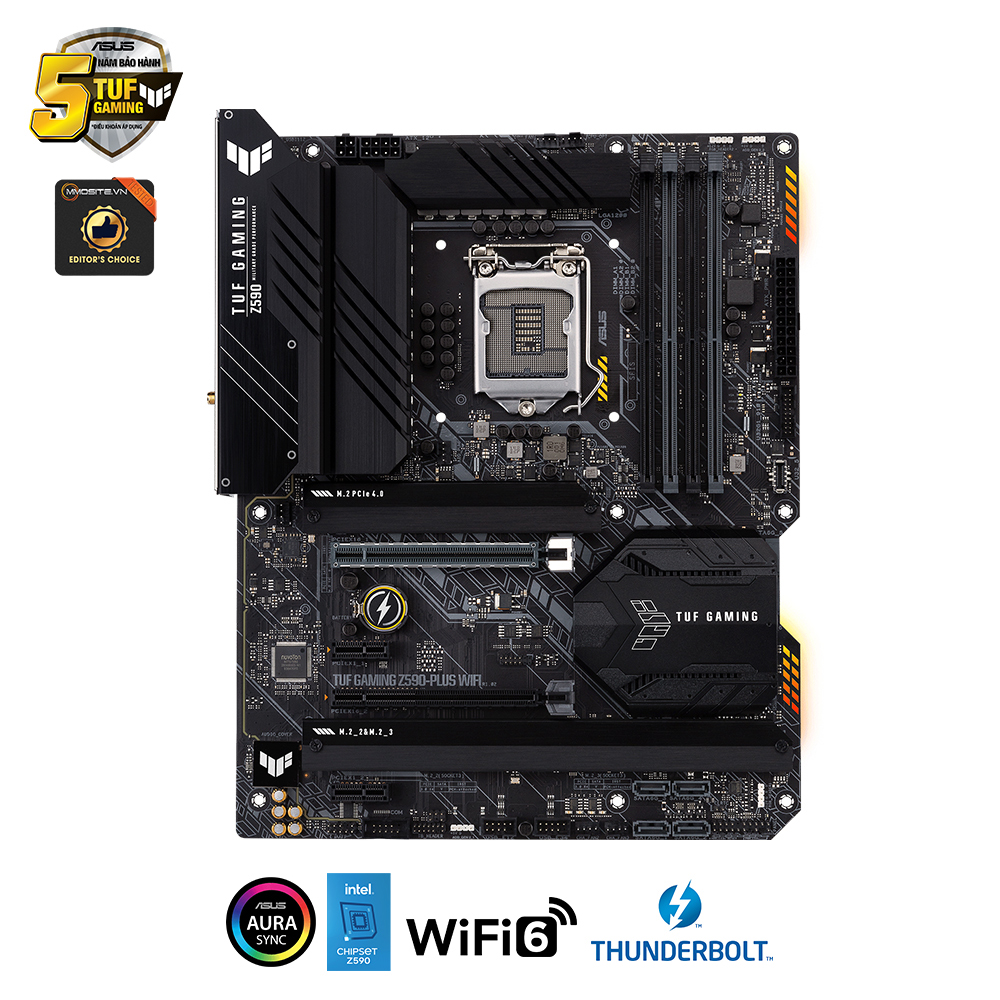

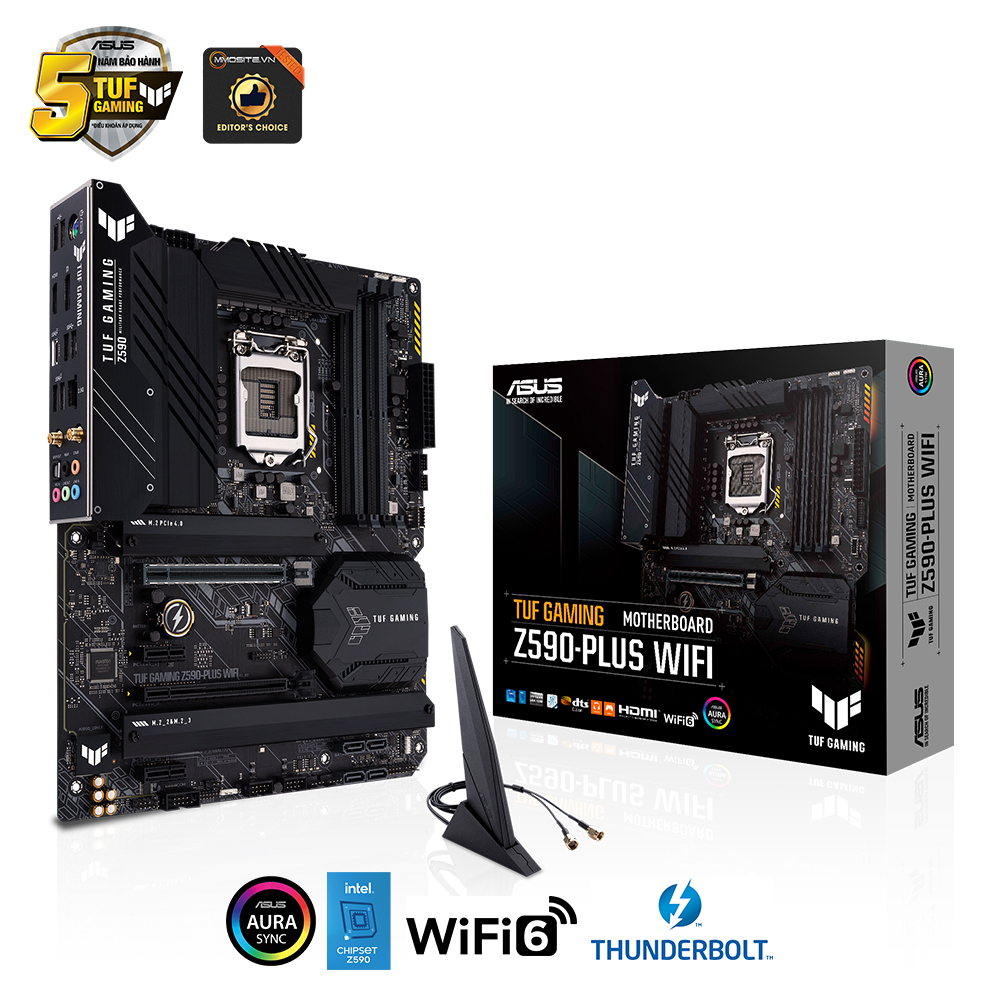

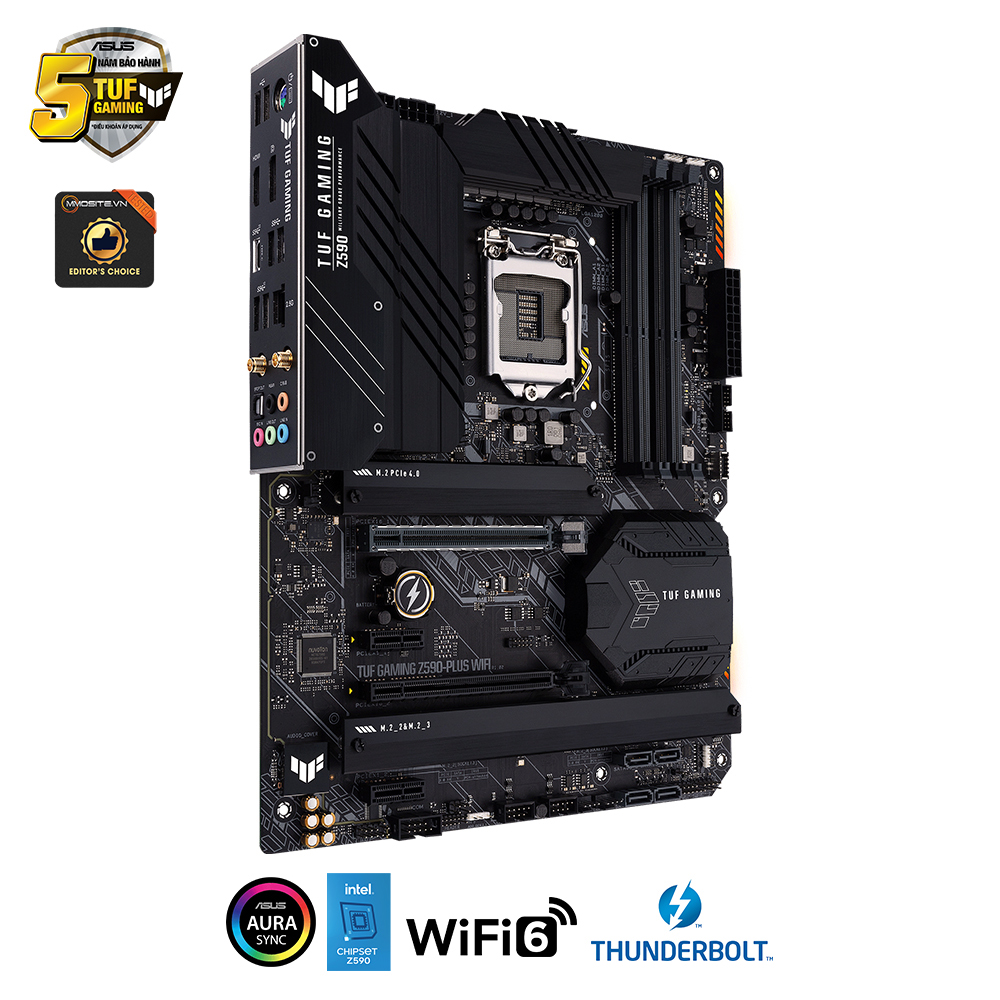

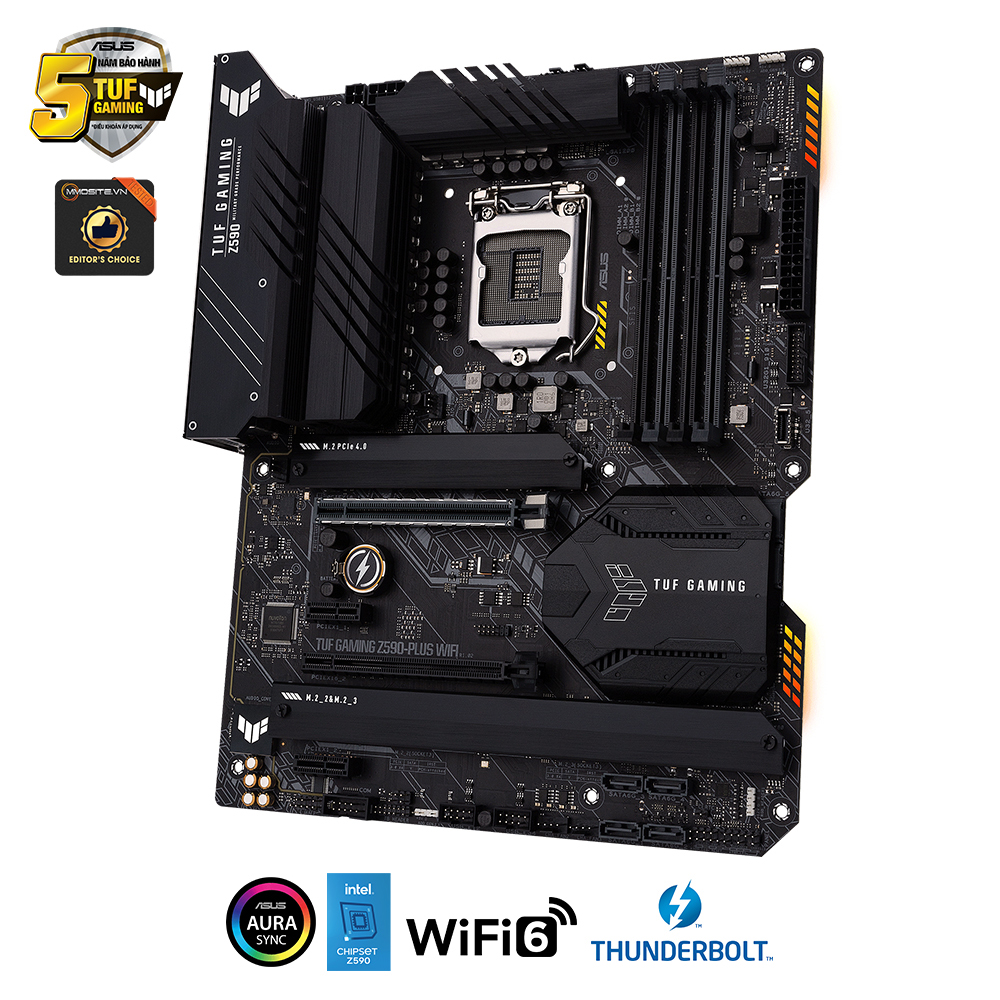

Mainboard ASUS TUF GAMING Z590-PLUS WIFI

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

TUF GAMING Z590-PLUS WIFI

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

2 x DDR4 memory slots, support up to 32GB DDR4 2666/ 2400/ 2133 MHz

Khe cắm mở rộng

Intel® 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot*
- Intel® 11th processors support PCIe 4.0 x16
- Intel®10th processors support PCIe 3.0 x16
Intel® Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots

Ổ cứng hỗ trợ

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® Z590 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)***
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)****
6 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header

Cổng kết nối (Back Panel)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x ASUS Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port

LAN / Wireless

1 x Intel® I225-V 2.5Gb Ethernet
TUF LANGuard

Kích cỡ

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
