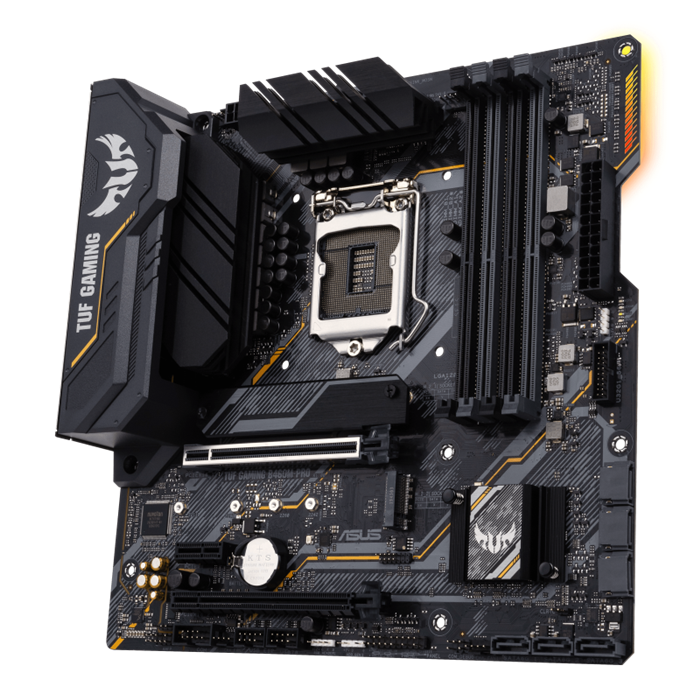

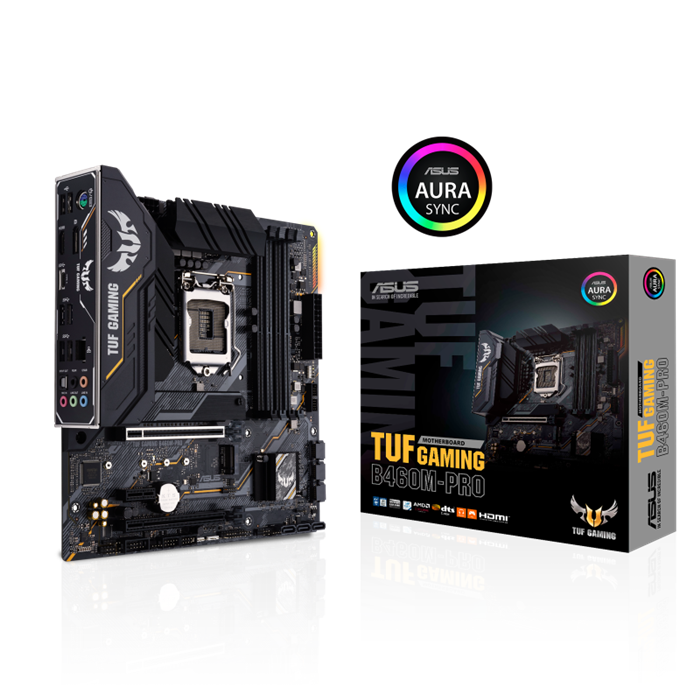

Mainboard ASUS TUF GAMING B460M-PRO

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

TUF GAMING B460M-PRO

CPU hỗ trợ

Intel

Chipset

B460

RAM hỗ trợ

4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Khe cắm mở rộng

Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel® B460 Chipset
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x1

Ổ cứng hỗ trợ

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® B460 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*¹
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)

Cổng kết nối (Internal)

1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header

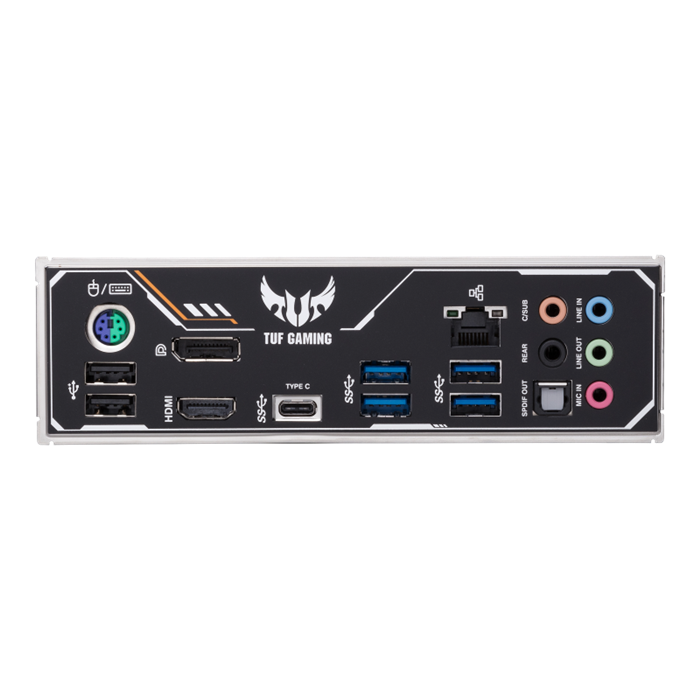

Cổng kết nối (Back Panel)

1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 1 USB Type-C^®
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

LAN / Wireless

Realtek® RTL8125-CG 2.5G LAN

Kích cỡ

mATX Form Factor
9.6  inch x 9.6  inch ( 24.4  cm x 24.4  cm )
