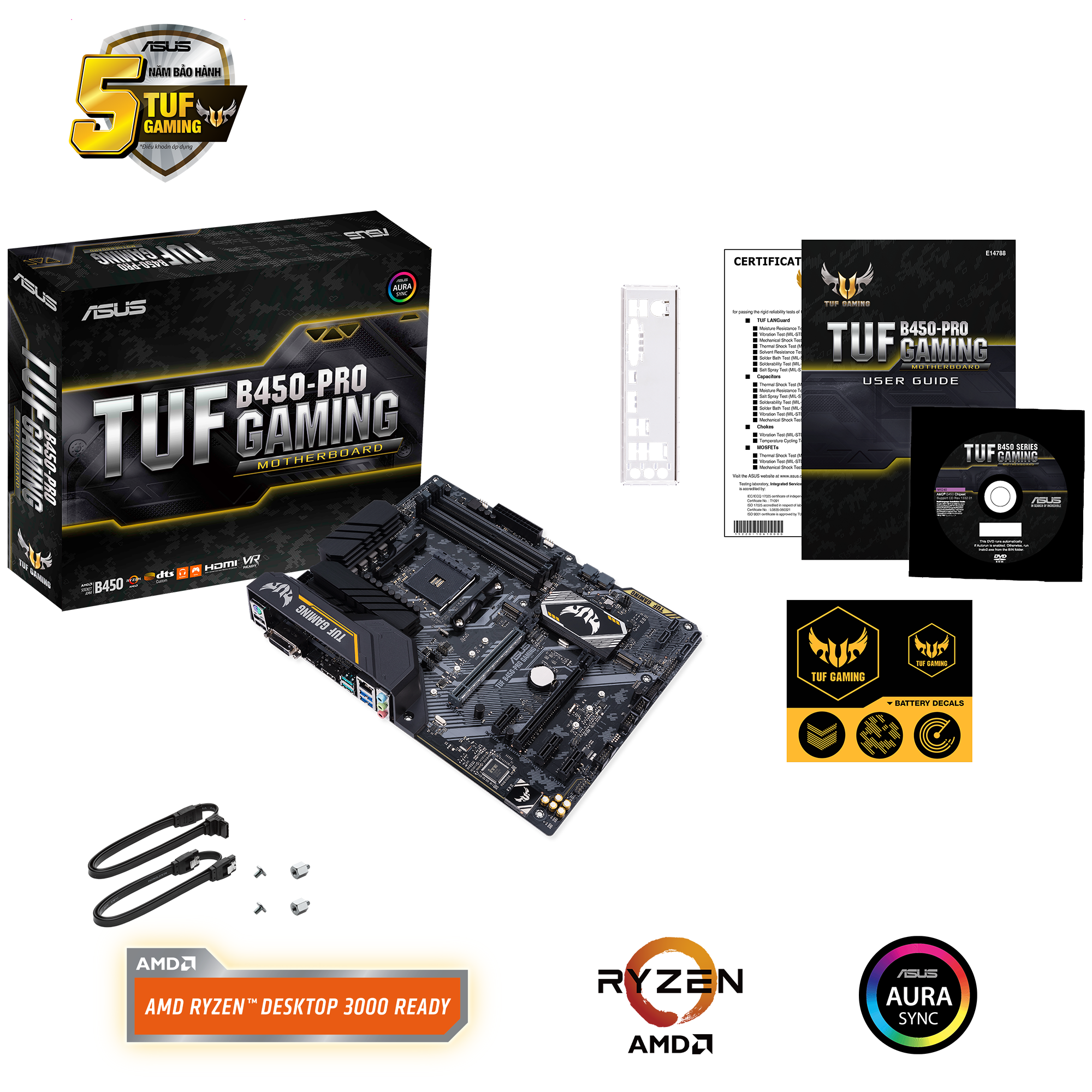

Mainboard ASUS TUF B450-PRO GAMING

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

B450-PRO GAMING

CPU hỗ trợ

AMD

Chipset

B450

RAM hỗ trợ

4 x DDR4 memory slots, support up to 64GB DDR4

Khe cắm mở rộng

1 x PCIe 3.0/2.0 x16 (x16 mode), 1 x PCIe 3.0/2.0 x16 (x8 mode)

Ổ cứng hỗ trợ

6 x SATA 6Gb/s ports, 1 x M.2 slot (Key M)

Cổng kết nối (Internal)

2 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header

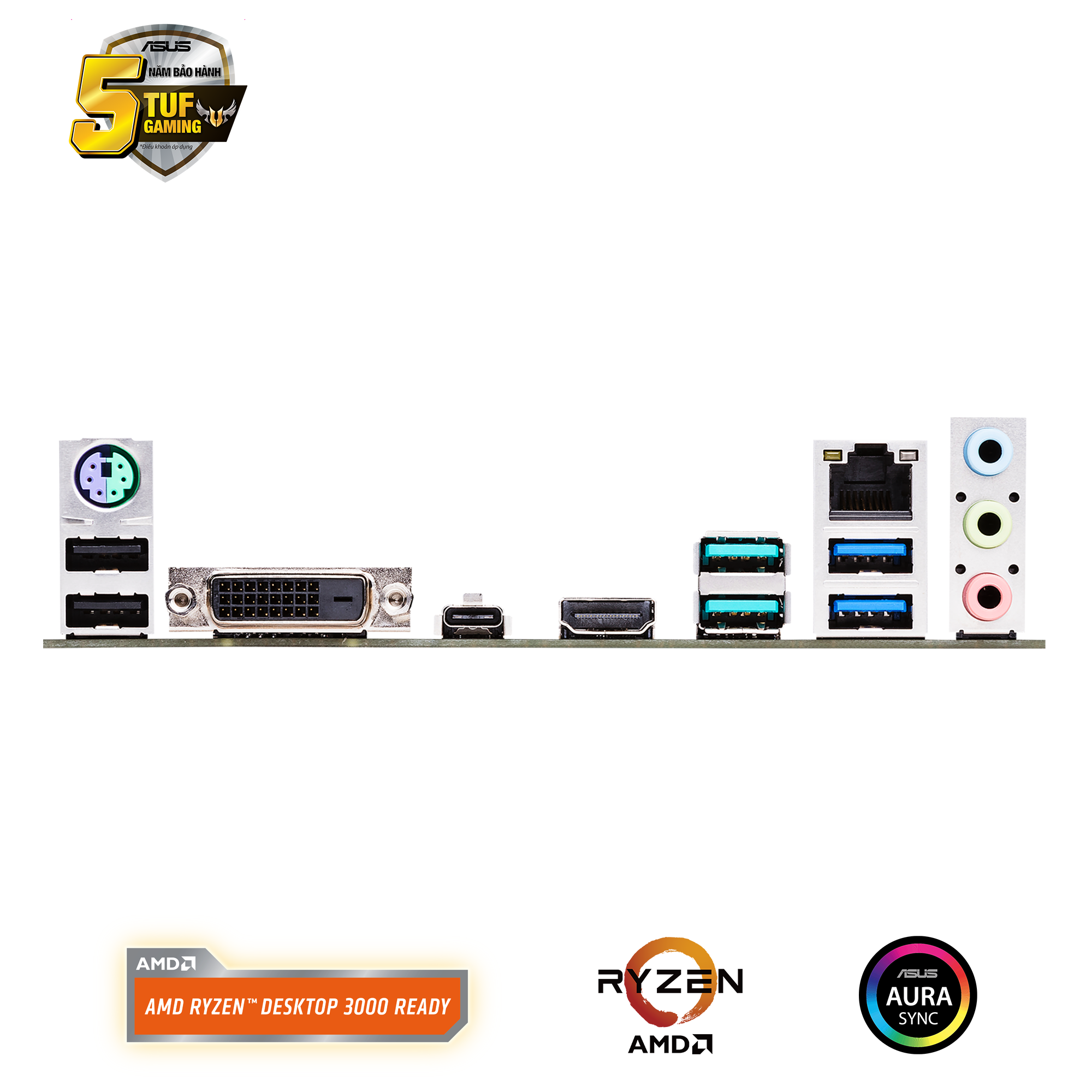

Cổng kết nối (Back Panel)

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
1 x 5Gb/s port(s) USB Type-C^TM
2 x USB 3.1 Gen 2 (teal blue)Type-A,
2 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)

LAN / Wireless

Realtek® RTL8111H
TUF LANGuard

Kích cỡ

ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
