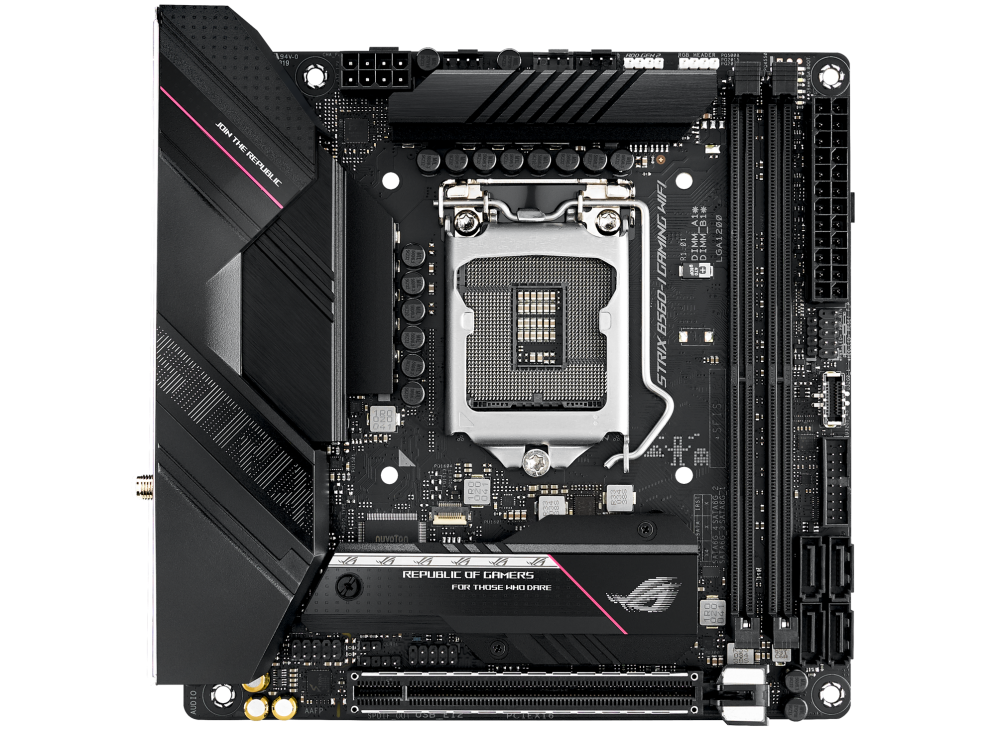

Mainboard ASUS ROG STRIX B560-I GAMING WIFI

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

ROG STRIX B560-I GAMING WIFI

CPU hỗ trợ

Intel

Chipset

B560

RAM hỗ trợ

2 x DDR4 memory slots, support up to 64GB DDR4
5333(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/
3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/2933/
2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Khe cắm mở rộng

Intel® 11th &10th Gen Processors*

1 x PCIe 4.0/3.0 x16 slot(s)**

- Intel® 11th processors support PCIe 4.0 x16

- Intel®10th processors support PCIe 3.0 x16

Ổ cứng hỗ trợ

Cổng kết nối (Internal)

an and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin AIO Pump header(s)

1 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports

Miscellaneous

1 x AURA Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x 10-1 pin System Panel header

Cổng kết nối (Back Panel)

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port(s) (1 x Type-A)

6 x USB 2.0 port(s) (5 x Type-A, 1 x Audio USB Type-C®)

1 x DisplayPort

1 x HDMI™ port

1 x ASUS Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

LAN / Wireless

Lan: 1 x Realtek 2.5Gb Ethernet
Wifi: Intel® Wi-Fi 6

Kích cỡ
