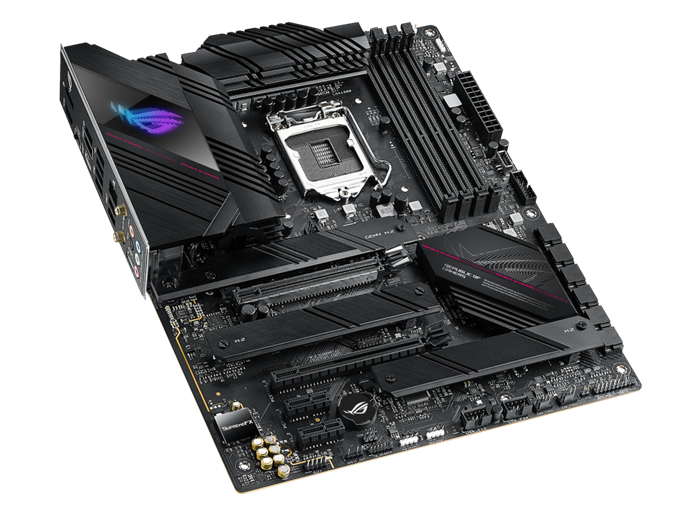

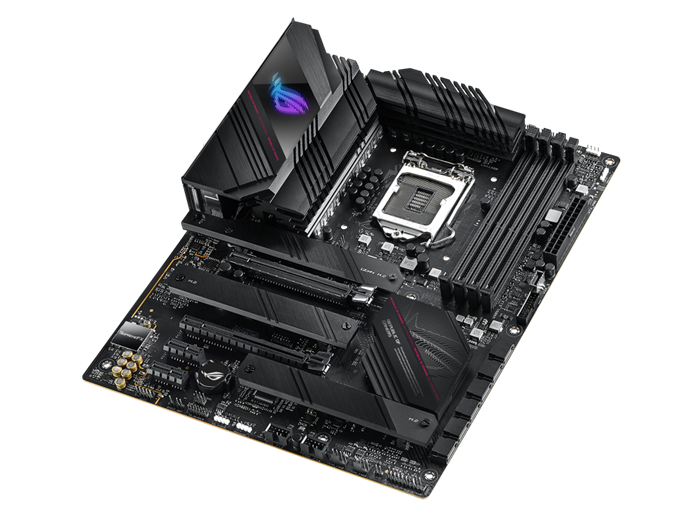

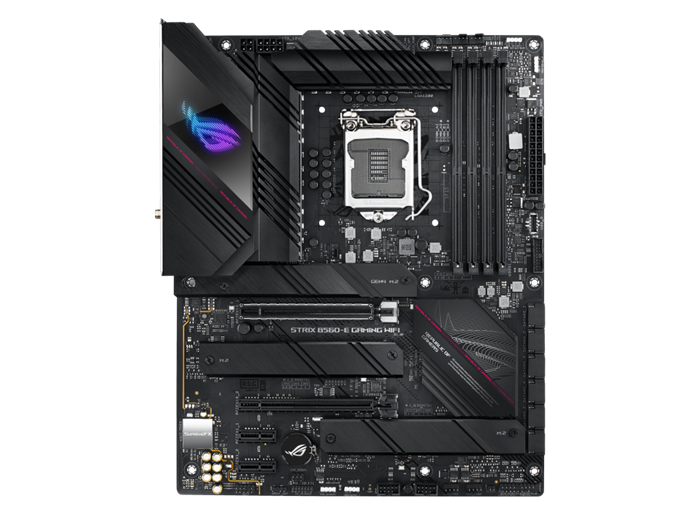

Mainboard ASUS ROG STRIX B560-E GAMING WIFI

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

ROG STRIX B560-E GAMING WIFI

CPU hỗ trợ

Intel

Chipset

B560

RAM hỗ trợ

4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/
3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Khe cắm mở rộng

Intel® 11^th&10^th Gen Processors

1 x PCIe 4.0/3.0 x16 slot(s)

- Intel® 11th processors support PCIe 4.0 x16 mode

- Intel®10th processors support PCIe 3.0 x16 mode

Intel® B560 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)*

2 x PCIe 3.0 x1 slots

Ổ cứng hỗ trợ

Cổng kết nối (Internal)

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

3 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 header(s)

2 x AURA RGB header(s)

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-5 pin System Panel header

1 x Thunderbolt™ header

1 x S/PDIF Out header

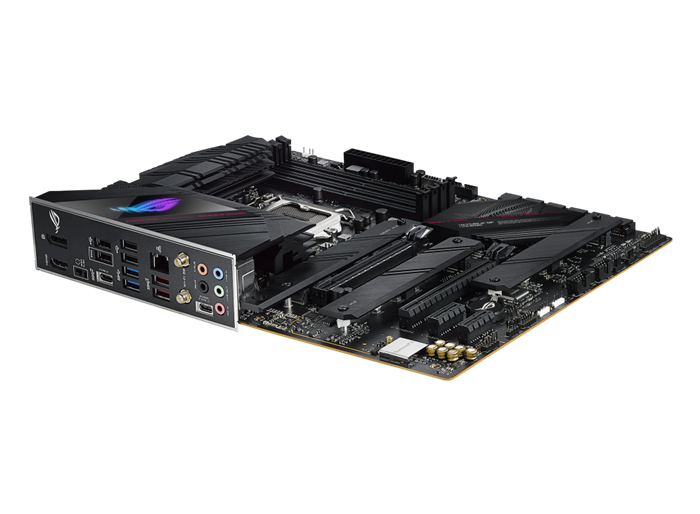

Cổng kết nối (Back Panel)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 port(s) (2 x Type-A)

2 x USB 3.2 Gen 1 port(s) (2 x Type-A)

5 x USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C®)

1 x HDMI™ port

1 x DisplayPort

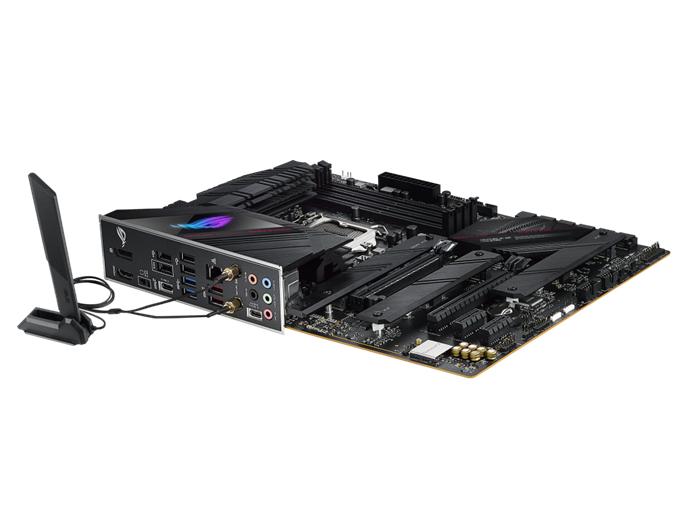

1 x ASUS Wi-Fi Module

1 x Intel® I225-V 2.5Gb Ethernet

5 x Audio jacks

1 x BIOS FlashBack™ button

LAN / Wireless

LAN: 1 x Intel® 2.5Gb Ethernet
WIFI: Intel® Wi-Fi 6E

Kích cỡ
