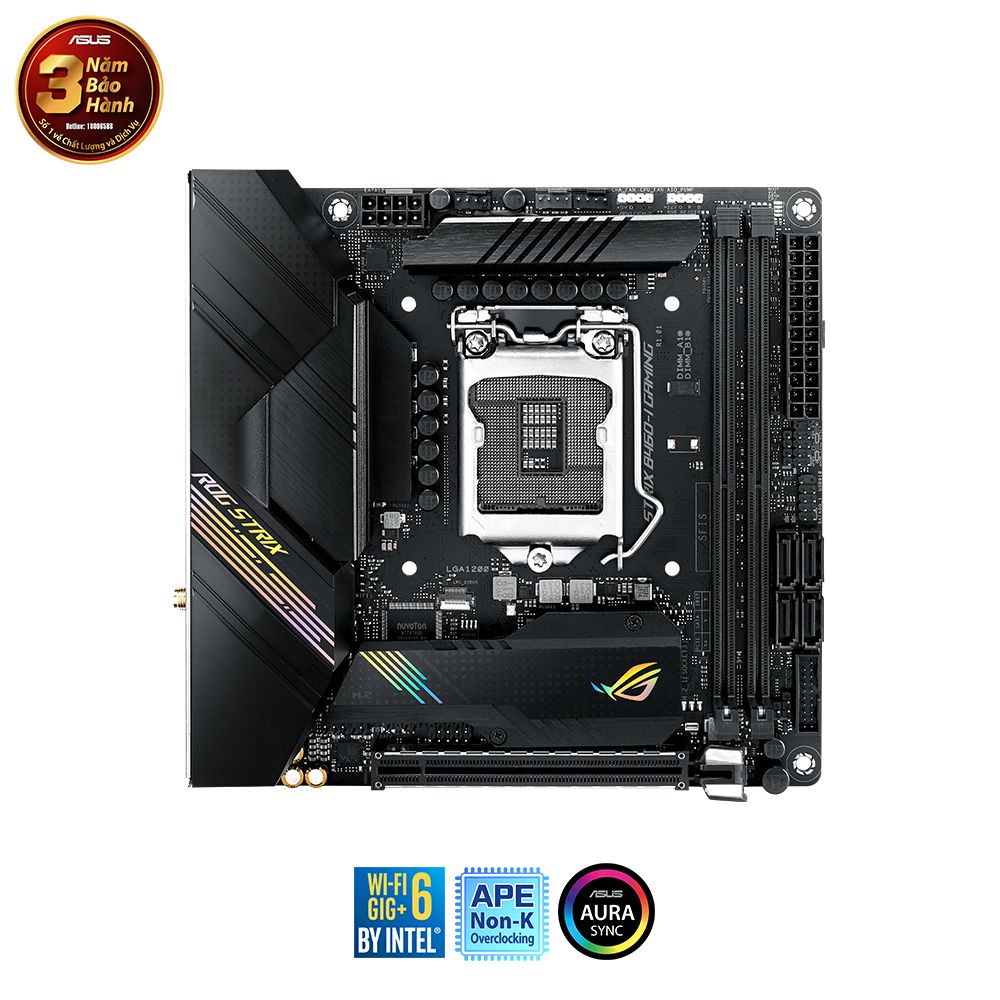

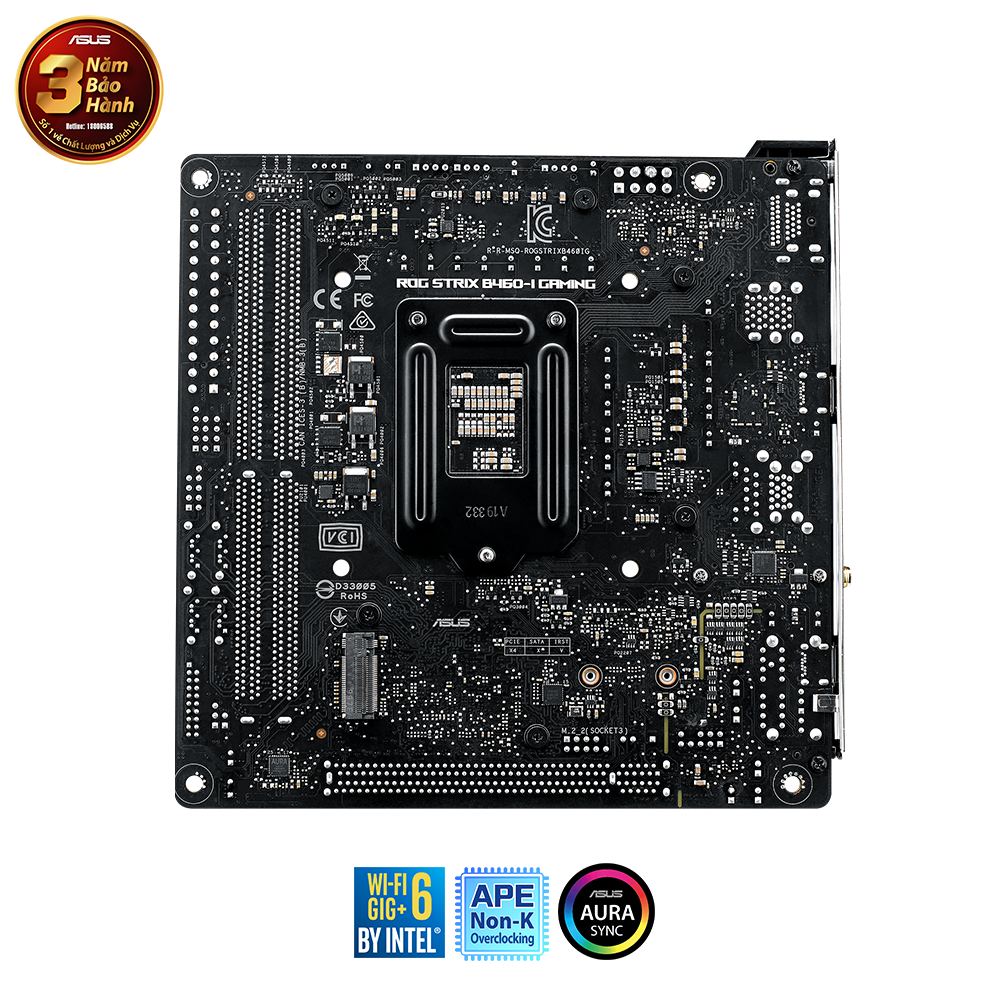

Mainboard ASUS ROG STRIX B460-I GAMING

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

ROG STRIX B460-I GAMING

CPU hỗ trợ

Intel

Chipset

B460

RAM hỗ trợ

2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz

Khe cắm mở rộng

1 x PCIe 3.0 x16

Ổ cứng hỗ trợ

1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*²
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
4 x SATA 6Gb/s port(s)

Cổng kết nối (Internal)

1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
1 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x M.2 Socket 3
1 x M.2 with E key for Wi-Fi module
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector

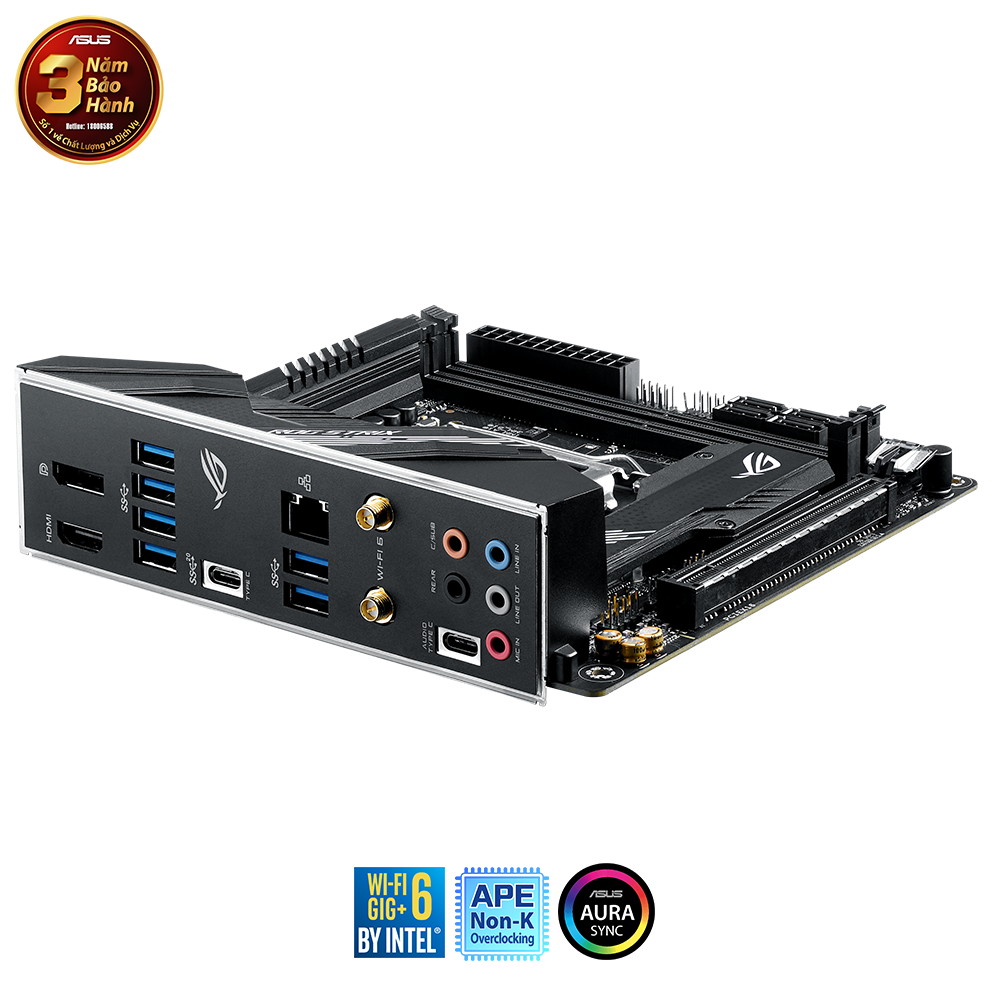

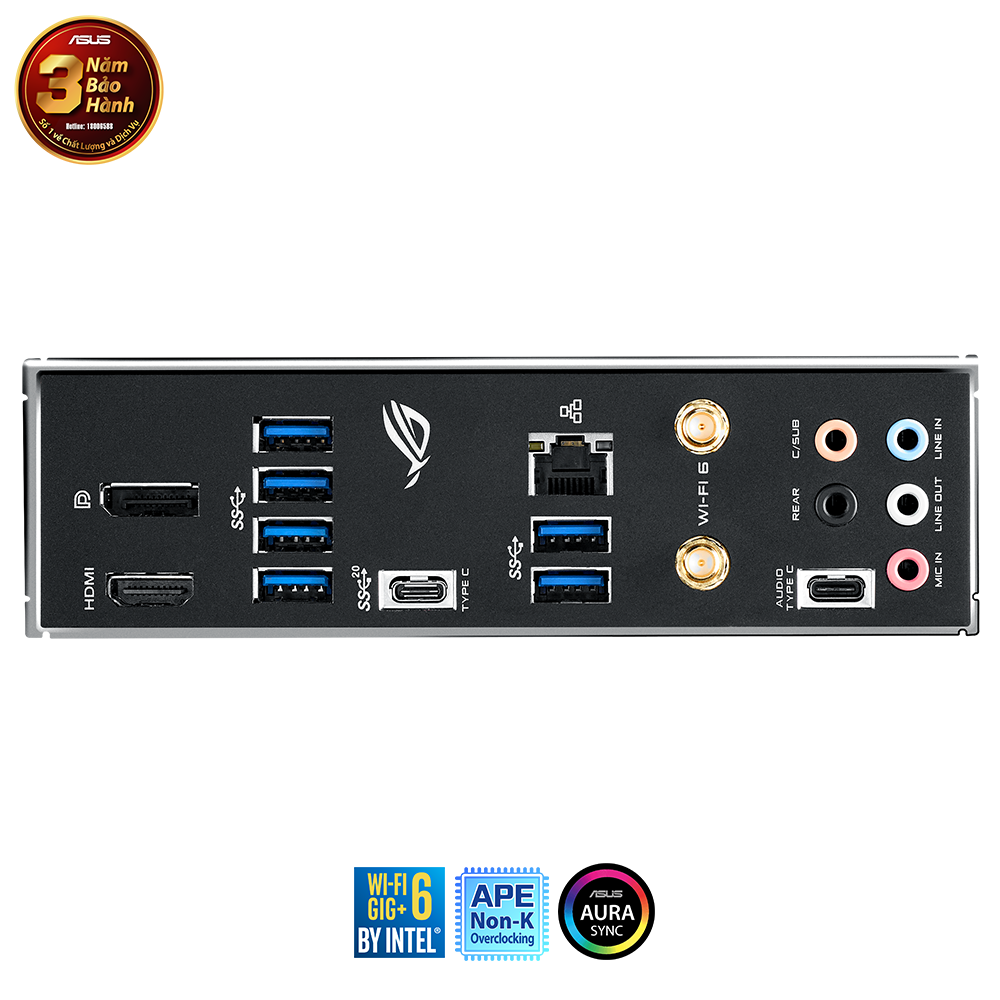

Cổng kết nối (Back Panel)

1 x Intel® I219-V 1Gb Ethernet
1 x DisplayPort
1 x HDMI
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C^®)
6 x USB 3.2 Gen 1
1 x USB 2.0 *³
5 x Audio jack(s)

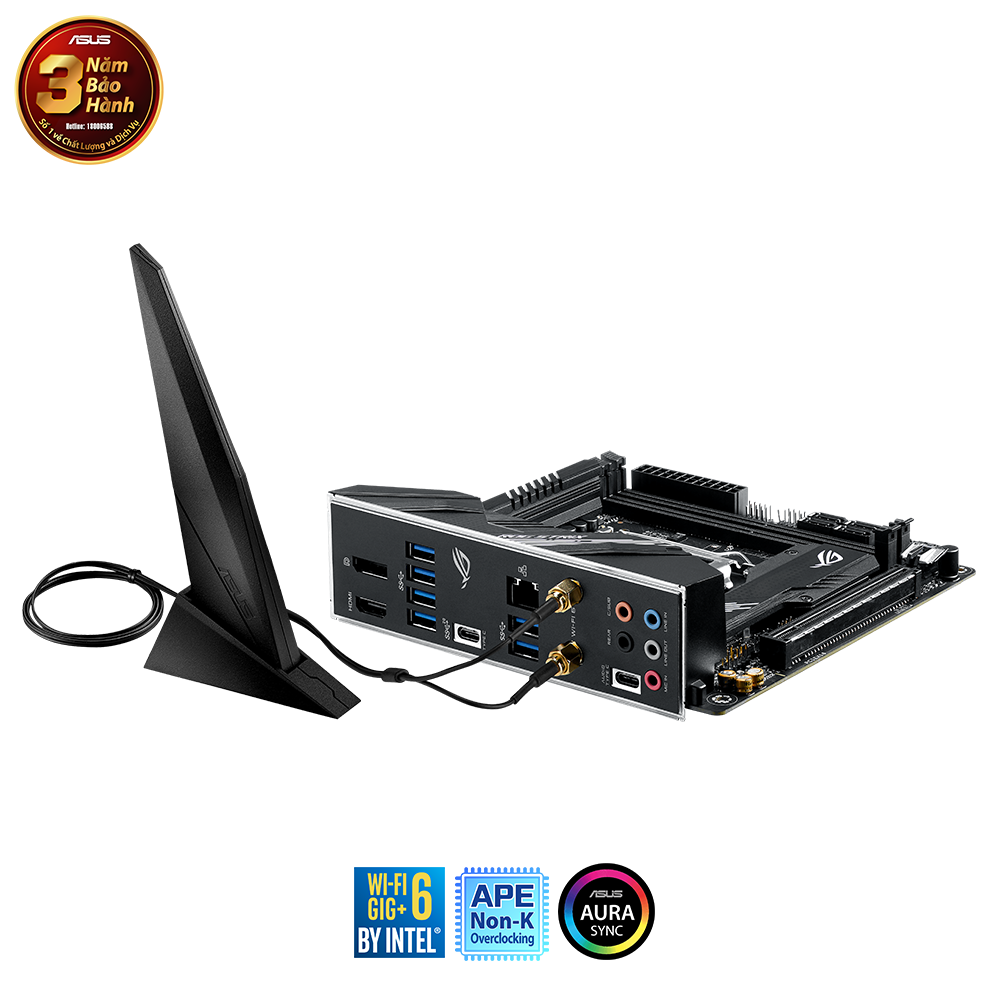

LAN / Wireless

Intel® I219-V 1Gb Ethernet
ASUS LANGuard

Kích cỡ

Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
