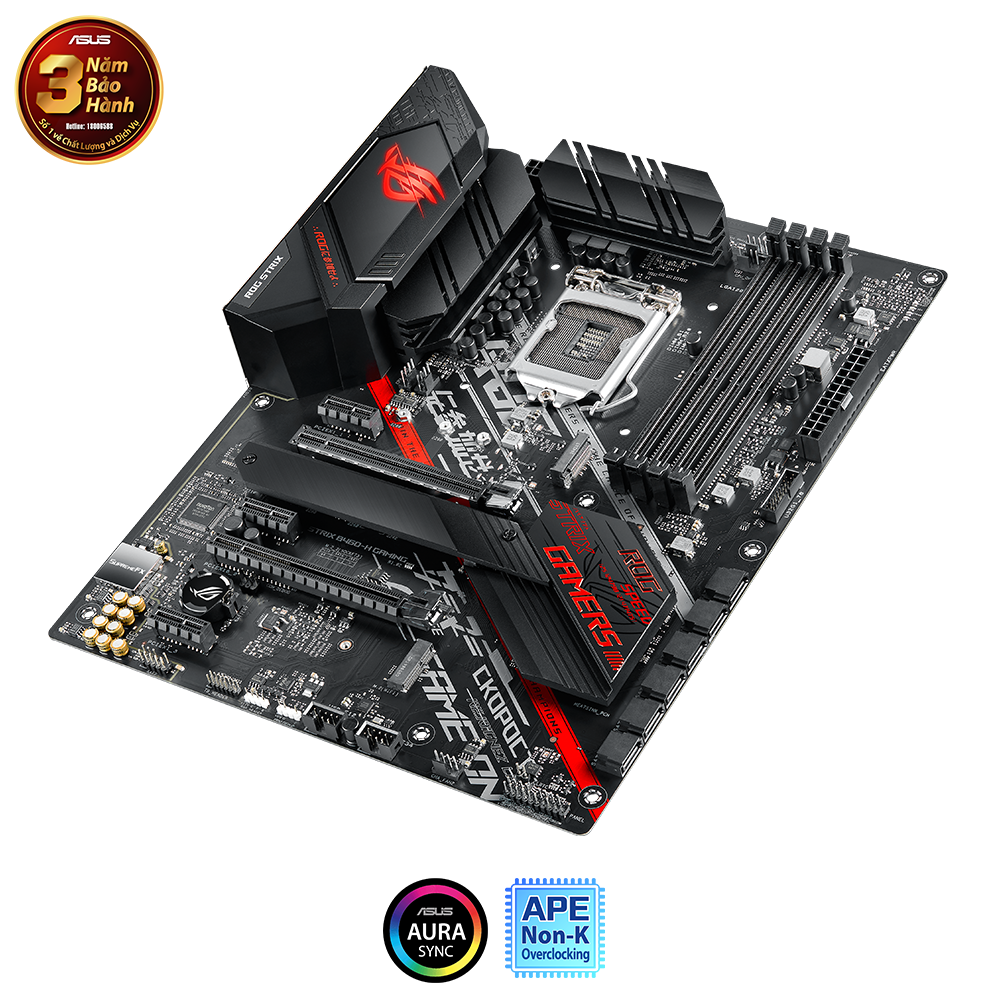

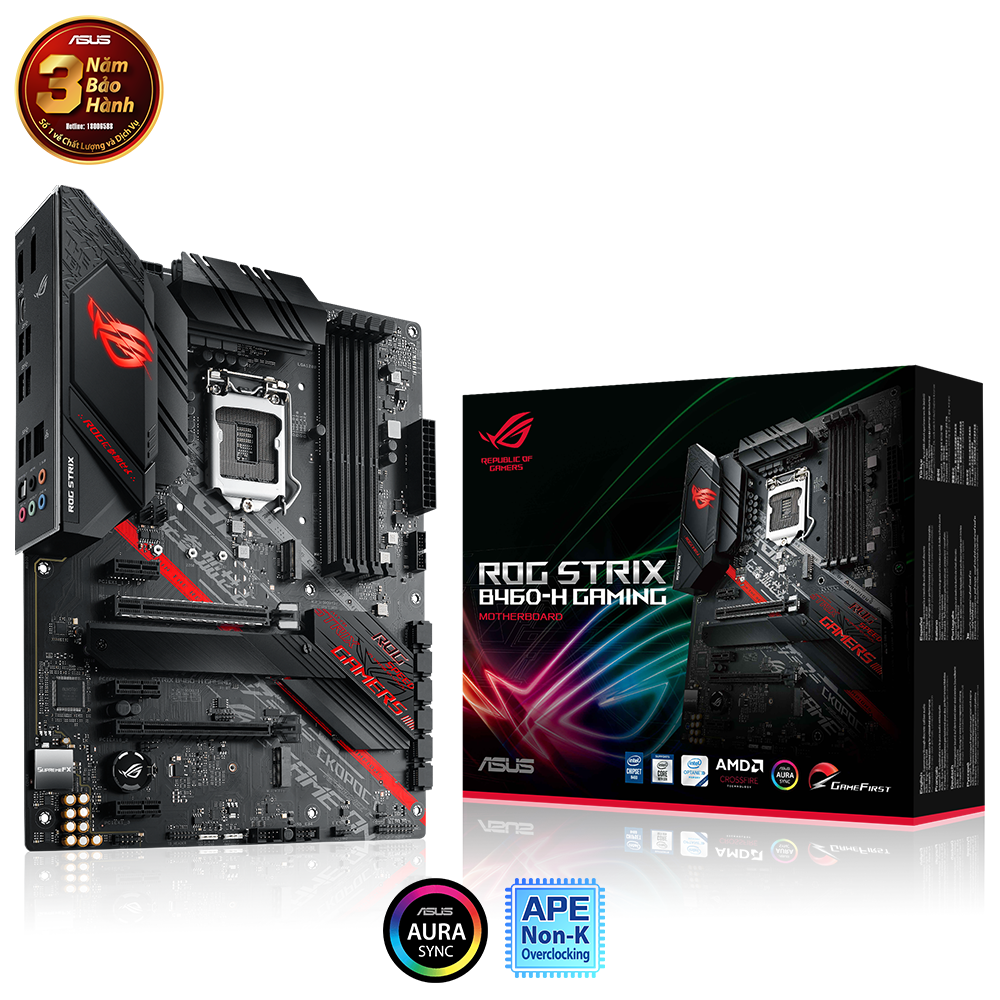

Mainboard ASUS ROG STRIX B460-H GAMING

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

ROG STRIX B460-H GAMING

CPU hỗ trợ

Intel

Chipset

B460

RAM hỗ trợ

4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz

Khe cắm mở rộng

1 x PCIe 3.0 x16,
1 x PCIe 3.0 x16 (x4 mode) *¹
3 x PCIe 3.0 x1 *²

Ổ cứng hỗ trợ

1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*³
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)

Cổng kết nối (Internal)

1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
1 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3
1 x M.2 with E key for Wi-Fi module
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel connector

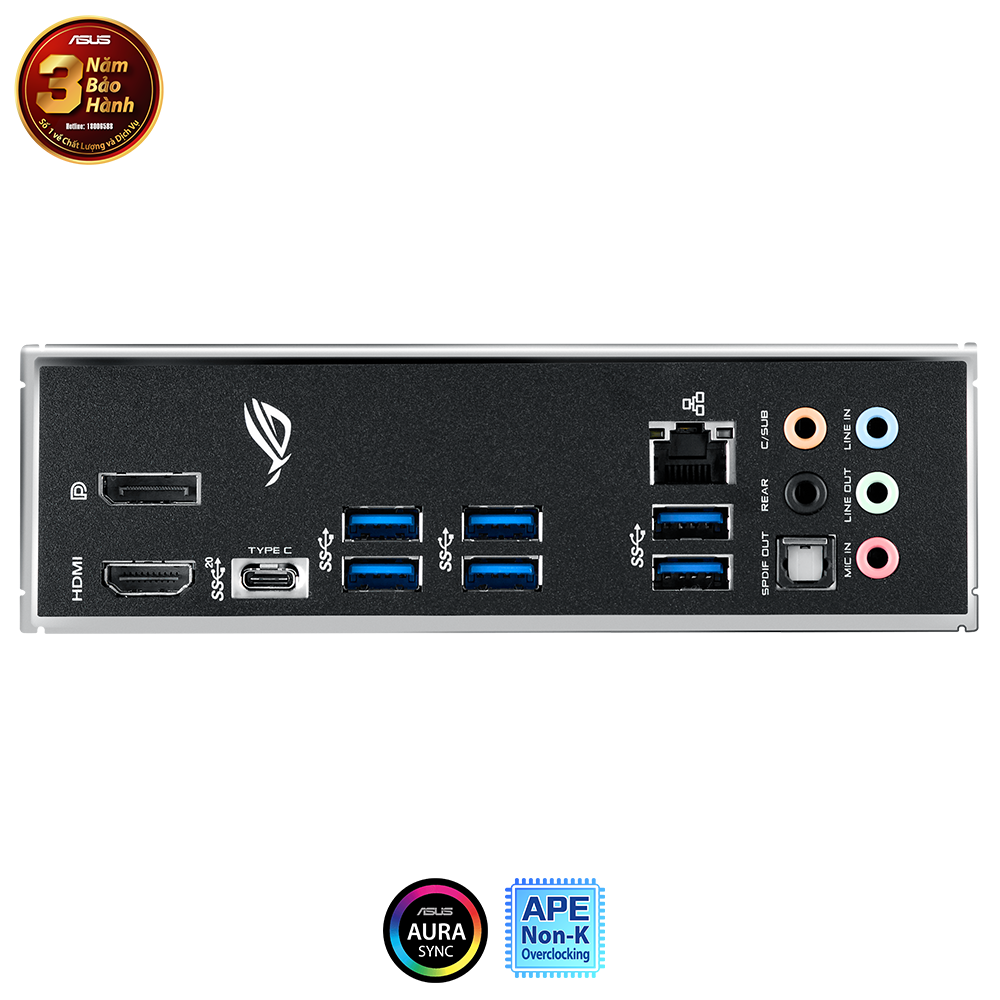

Cổng kết nối (Back Panel)

1 x Intel® I219-V 1Gb Ethernet
1 x DisplayPort
1 x HDMI
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C^®)
6 x USB 3.2 Gen 1
1 x Optical S/PDIF out
5 x Audio jack(s)

LAN / Wireless

Intel® I219-V 1Gb Ethernet
ASUS LANGuard

Kích cỡ

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
