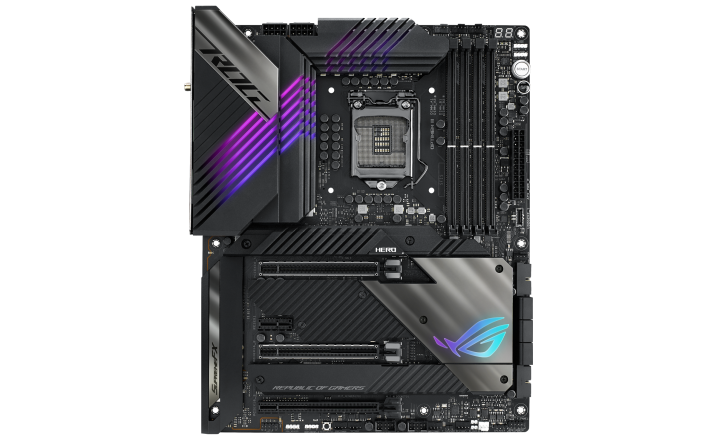

Mainboard ASUS ROG MAXIMUS XIII HERO (Z590)

Tên gọi

ASUS Z590 ROG MAXIMUS XIII HERO

CPU hỗ trợ

Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU

Chipset / Socket

Intel® Z590 Chipset

Bộ nhớ (RAM)

4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III

Công nghệ đa GPU

NVIDIA 2-Way SLI® Technology

Khe cắm mở rộng

Intel® 11th &10th Gen Processors

2 x PCIe 4.0/3.0 x16 slot(s)*

- Intel® 11th Core™ processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s)

- Intel® 10th Core™ processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s)

Intel® Z590 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)**

1 x PCIe 3.0 x1 slots

LAN / Wireless

2 x Intel® I225-V 2.5Gb Ethernet

ASUS LANGuard

Âm thanh

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback

Audio Features

- SupremeFX Shielding Technology

- ESS® SABRE9018Q2C DAC/AMP

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium Japanese audio capacitors

- Audio cover

Cổng kết nối (Internal)

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

3 x 4-pin Chassis Fan header(s)

1 x 4-pin H_AMP Fan header(s)

1 x W_PUMP+ header(s)

1 x 2-pin Water In header

1 x 2-pin Water Out header

1 x 3-pin Water Flow header

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

Storage related

4 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®)

2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

3 x AURA Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x ReTry button

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x Start button

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

Cổng kết nối (Back Panel)

2 x Thunderbolt™ 4 USB Type-C® port(s)

6 x USB 3.2 Gen 2 port(s) (6 x Type-A)

2 x USB 2.0 port(s) (2 x Type-A)

1 x HDMI™ port

1 x ASUS Wi-Fi Module

2 x Intel® I225-V 2.5Gb Ethernet

5 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™  button

1 x Clear CMOS button

Công nghệ độc quyền

Extreme OC Kit

- FlexKey button

- ReTry button

- Start button

Extreme Engine Digi+

- 10K Black Metallic Capacitors

- MicroFine Alloy Choke

ASUS Q-Design

- Q-Code

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- Clear CMOS button

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

AURA Sync

- AURA RGB header(s)

- Addressable Gen 2 RGB header(s)

Phụ kiện đi kèm

Cables

1 x ARGB RGB extension cable

1 x RGB extension cable

4 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x M.2 SSD screw package(s)

1 x Q-connector

1 x ROG key chain

1 x ROG logo plate stickers

1 x ROG Graphics card holder

1 x ROG stickers

1 x ROG thank you card

Installation Media

1 x Support DVD

Documentation

1 x User manual

Hệ điều hành khuyến nghị

Windows® 10 64-bit

Chuẩn kích cỡ

ATX Form Factor
