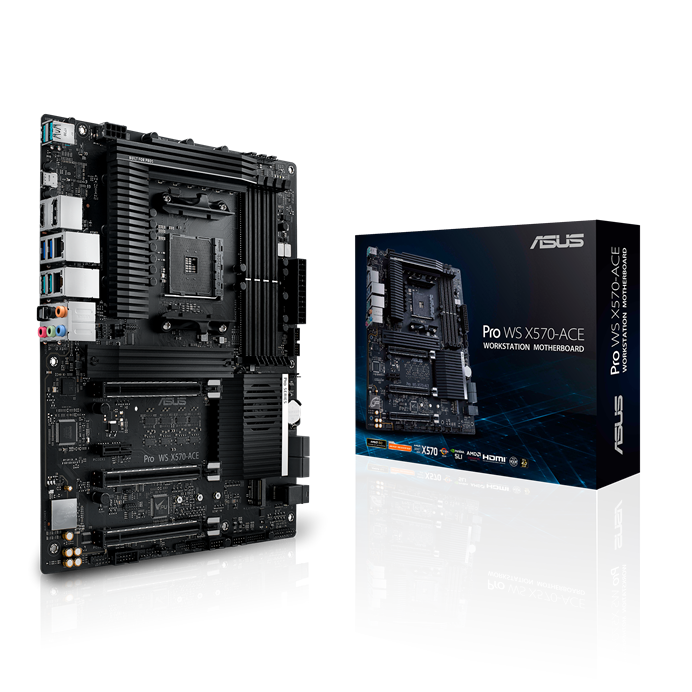

Mainboard ASUS Pro WS X570-ACE

Đánh giá:

Xem đánh giá (Có 0 đánh giá)

Bảo hành:

Giá bán: 8.950.000 đ

Chipset: AMD X570 Socket: AM4 Hỗ trợ CPU: AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Card đồ họa: VGA onboard Kích thước: ATX

Số lượng

- 1 +

Đặt mua ngay

Tổng quan Thông số kỹ thuật Đánh giá sản phẩm

CPU	AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors Processors
Chipset	AMD X570
Memory	4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.
Graphic	Integrated Graphics in AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Multi-GPU Support	AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors> Supports NVIDIA 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots	AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 2 x PCIe 4.0 x16 (x16 or dual x8) AMD Ryzen^TM4000 G-Series / 2000 Series Processors 2 x PCIe 3.0 x16 (x16 or dual x8) AMD Ryzen^TM 3000 G-Series / 2000 G-Series Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (x8 mode) 1 x PCIe 4.0 x1
Storage	AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen^TM 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280(PCIE 4.0 x2) storage devices support 1 x U.2 connector, support PCIe 3.0 x4 NVM Express storage 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
LAN	Realtek® RTL8117 Intel® I211-AT ASUS Turbo LAN Utility ASUS LAN Guard
Audio	Realtek® S1220A 8-Channel High Definition Audio CODEC * - Supports : Jack-detection, Front Panel Jack-retasking - Front panel audio connector (AAFP) Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs - EMI protection cover to prevent electrical noise to affect the amplifier quality Separate layer for left and right track, ensuring both sound deliver equal quality
USB Ports	3rd and 2nd Gen AMD Ryzen™/3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors : 3 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A, 1 at mid-board) AMD X570 chipset : 5 x USB 3.2 Gen 2 port(s) (4 at back panel, teal blue, Type-A, 1 x Type-C) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board)
Workstation Feature	ProCool Power Connector ASUS Control Center (ACC)
Special Features	5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS 5X Protection III : - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection ASUS SafeSlot - Protect your graphics card Investment ASUS OptiMem： - Improved DDR4 Stability ASUS EPU : - EPU ASUS Exclusive Features : - OptiMem - AI Suite 3 - Ai Charger - ESD Guards - Turbo LAN - Armoury Crate - ASUS EZ Flash 3 - ASUS NODE : hardware control interface ASUS Quiet Thermal Solution : - Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM
Back I/O Ports	1 x DisplayPort 1 x HDMI 2 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 5 x Audio jack(s) 2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
Internal I/O Ports	1 x PCH_FAN 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x U.2 Connector (support U.2 NVMe device) 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Accessories	User´s manual I/O Shield 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS VGA Holder
BIOS	256 Mb Flash ROM, UEFI AMI BIOS, PnP, SMBIOS 3.2, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability	WOL by PME, PXE
Operating System	Windows® 10 64-bit
Form Factor	ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
