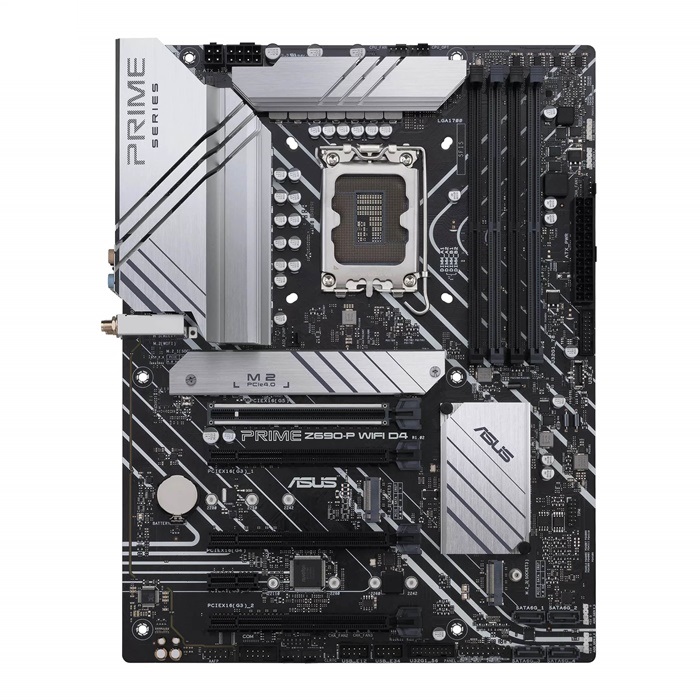

Mainboard Asus PRIME Z690-P WIFI D4 LGA1700 ATX

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

PRIME Z690-P WIFI D4

CPU hỗ trợ

Intel

Chipset

Z690

RAM hỗ trợ

4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)

3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000

2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Khe cắm mở rộng

Intel^® 12^th Gen Processors*
1 x PCIe 5.0/4.0/3.0 x16 slot
Intel^® Z690 Chipset**
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot

Ổ cứng hỗ trợ

M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel^® 12^th Gen processors support PCIe 4.0 x4 mode.
Intel^® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ header

Cổng kết nối (Back Panel)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI^® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port

LAN

Bluetooth v5.2

Wifi

Kích cỡ

ATX
30.5cm x 23.4cm
