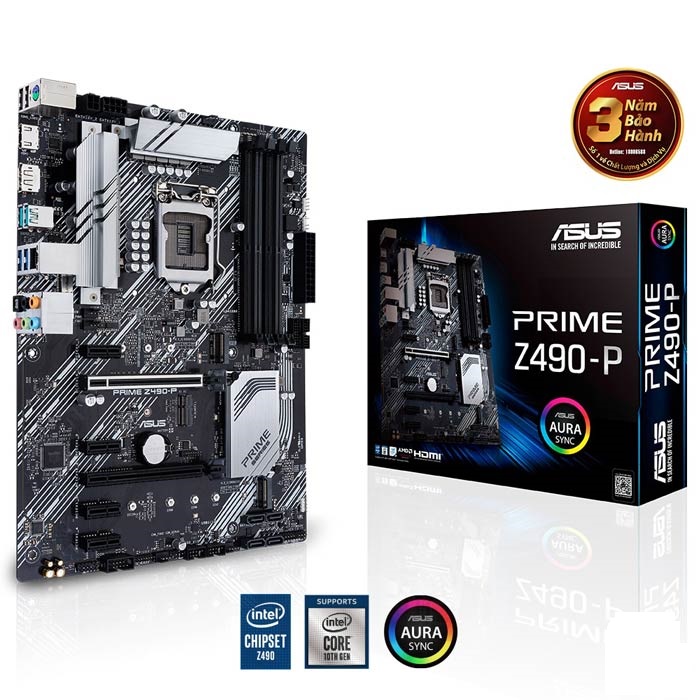

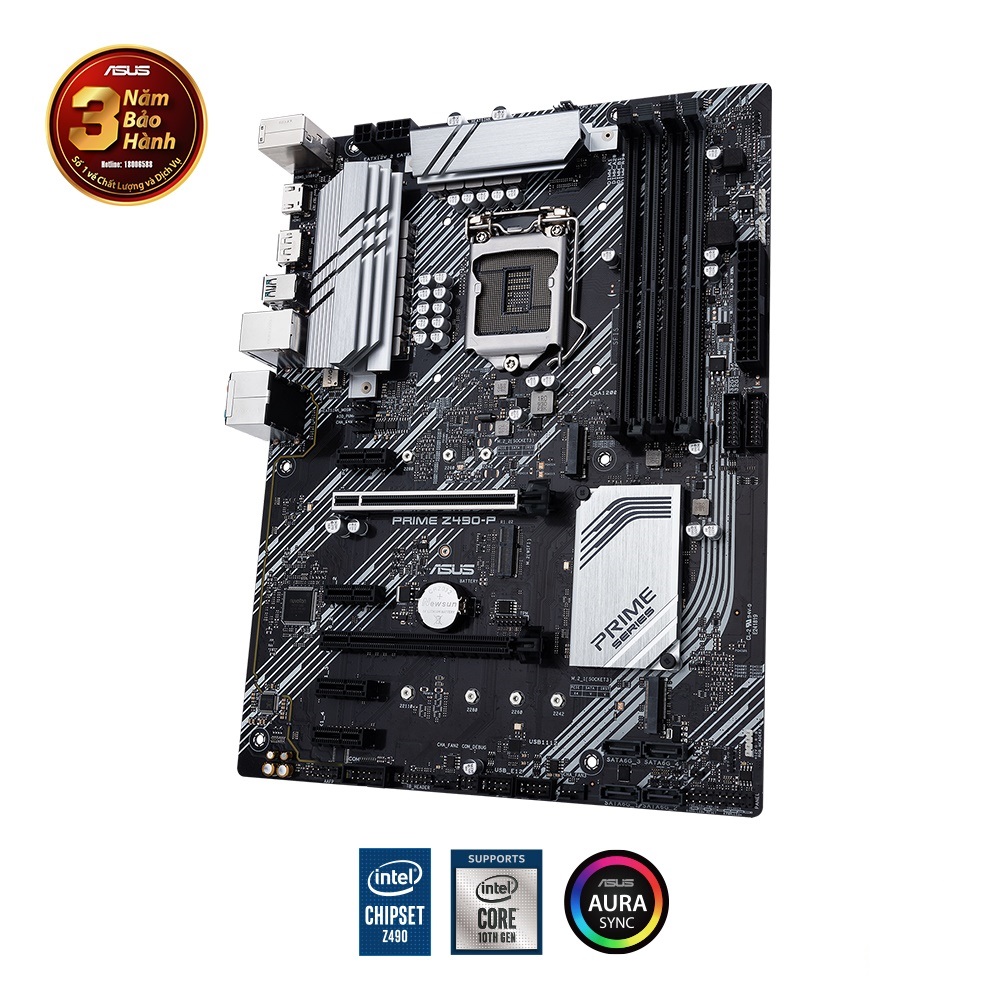

Mainboard ASUS PRIME Z490-P LGA1200

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

PRIME Z490-P LGA1200

CPU hỗ trợ

Intel

Chipset

Z490

RAM hỗ trợ

4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)
/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Khe cắm mở rộng

Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode) *¹
Intel® Z490 Chipset
1 x PCIe 3.0 x16 (x4 mode)
4 x PCIe 3.0 x1

Ổ cứng hỗ trợ

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Z490 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*²
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
4 x SATA 6Gb/s port(s)

Cổng kết nối (Internal)

1 x CPU Fan connector(s)
3 x Chassis Fan connector(s)
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x AIO_PUMP connector
1 x Thunderbolt header(s)
1 x 4-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header

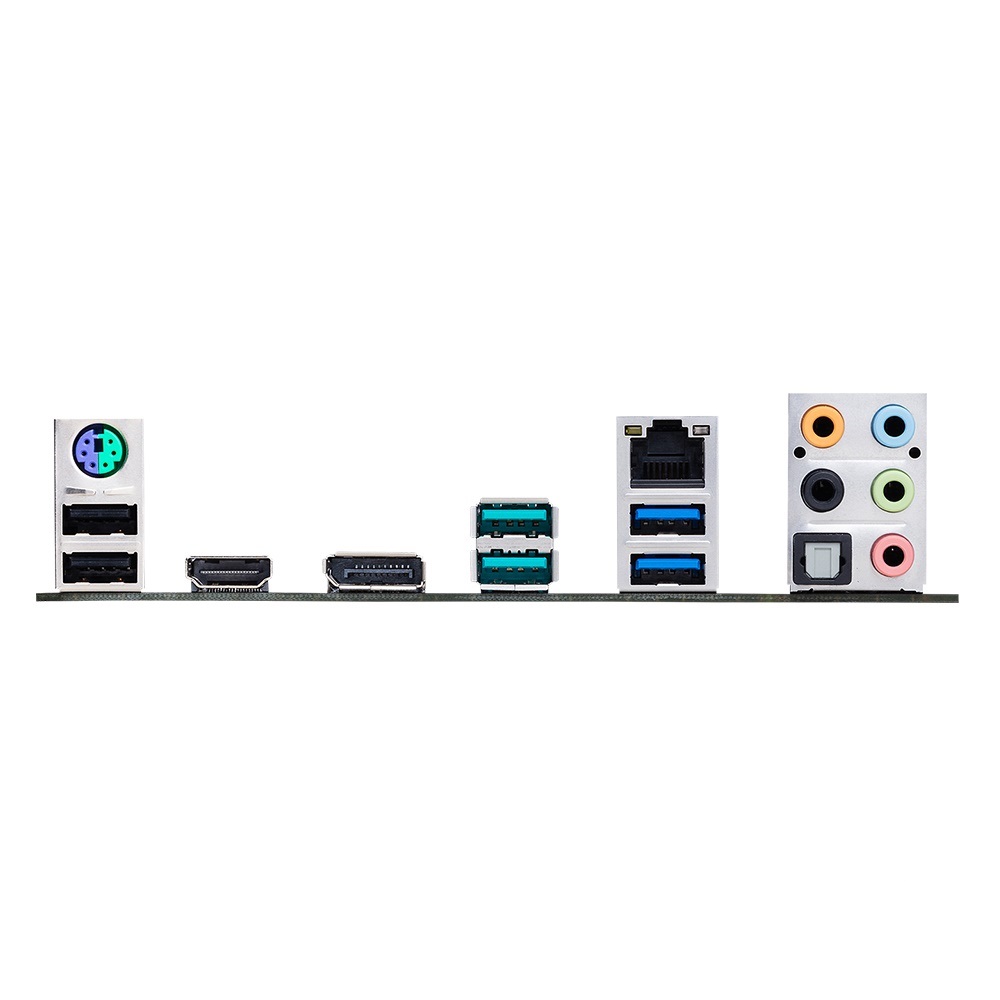

Cổng kết nối (Back Panel)

1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

LAN / Wireless

Realtek® RTL8111H

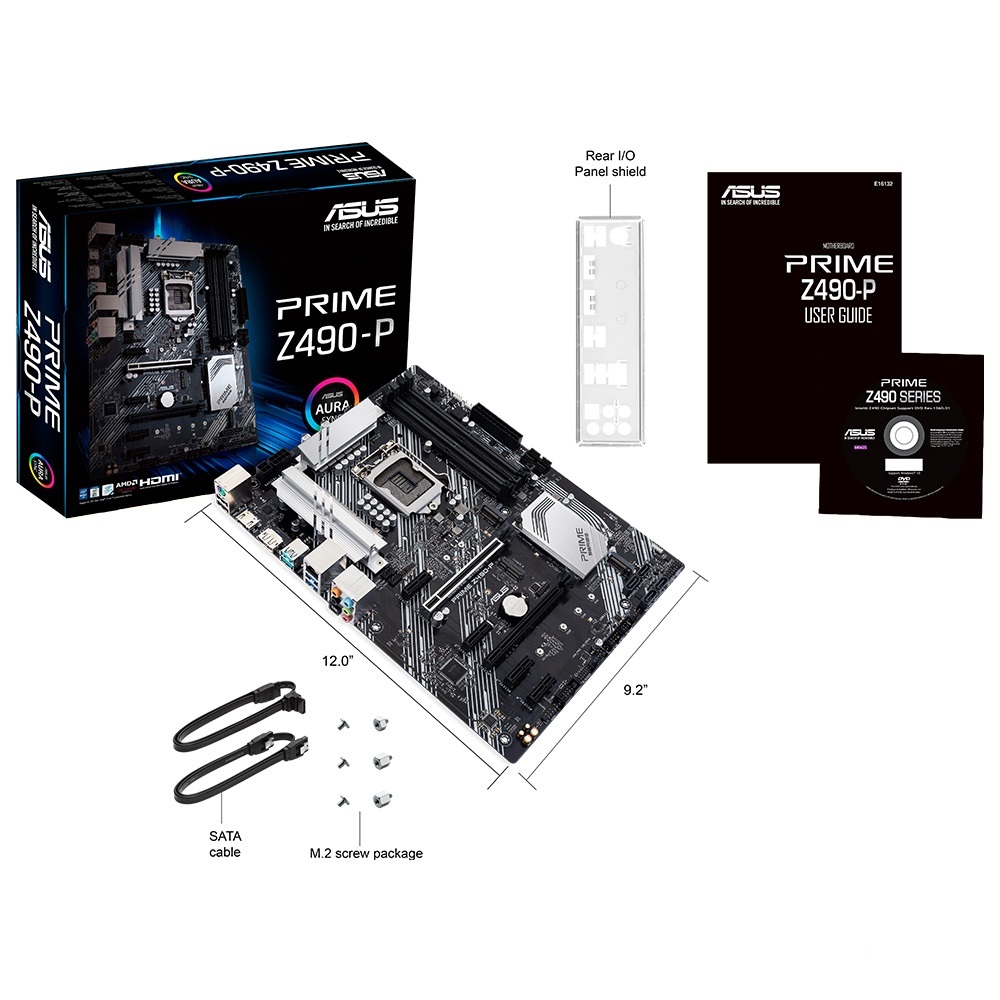

Kích cỡ

ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
