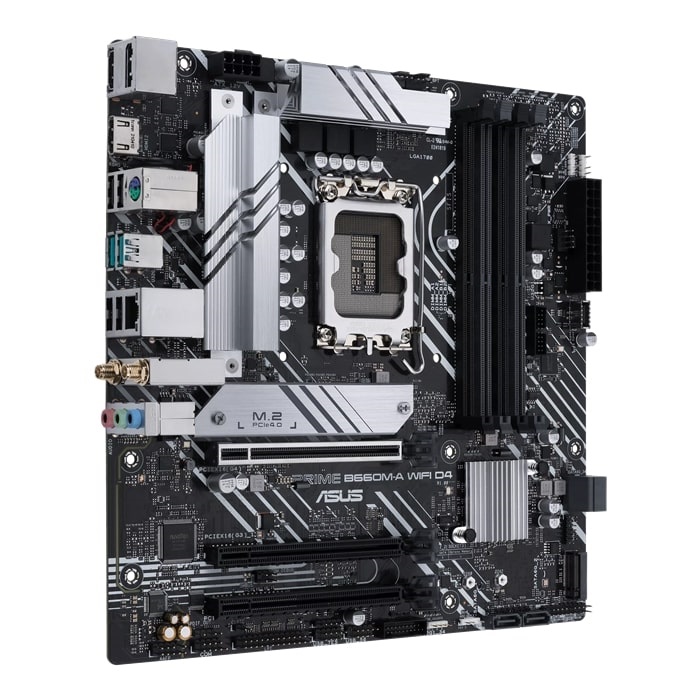

Mainboard Asus PRIME B660M-A WIFI D4

Đánh giá:

Xem đánh giá (Có 0 đánh giá)

Bảo hành:

Giá bán: 3.649.000 đ

Socket: Socket LGA1700 hỗ trợ CPU thế hệ 12 Kích thước: microATX Khe cắm RAM: 4 khe (Tối đa 128GB) Khe cắm mở rộng: 1 x PCIe 4.0/3.0 x16 slot, 1 x PCIe 3.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x16 slot (supports x1 mode) Khe cắm ổ cứng: Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Số lượng

- 1 +

Đặt mua ngay

Tổng quan Thông số kỹ thuật Đánh giá sản phẩm

Sản phẩm	Bo mạch chủ
Tên Hãng	Asus
Model	PRIME B660M-A WIFI D4
CPU hỗ trợ	Intel
Chipset	B660
RAM hỗ trợ	4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/ 3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC
Khe cắm mở rộng	Intel® 12^th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® B660 Chipset * 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode)
Ổ cứng hỗ trợ	Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 12^th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12^th Gen processors support PCIe 4.0 x4 mode. Intel^® B660 Chipset ** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* 4 x SATA 6Gb/s ports
Cổng kết nối (Internal)	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header support 1 USB 2.0 port Miscellaneous 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function
Cổng kết nối (Back Panel)	2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI^® ports 1 x Wi-Fi Module 1 x Intel^® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
LAN / Wireless	2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Kích cỡ	microATX 24.4cm x 24.4cm
