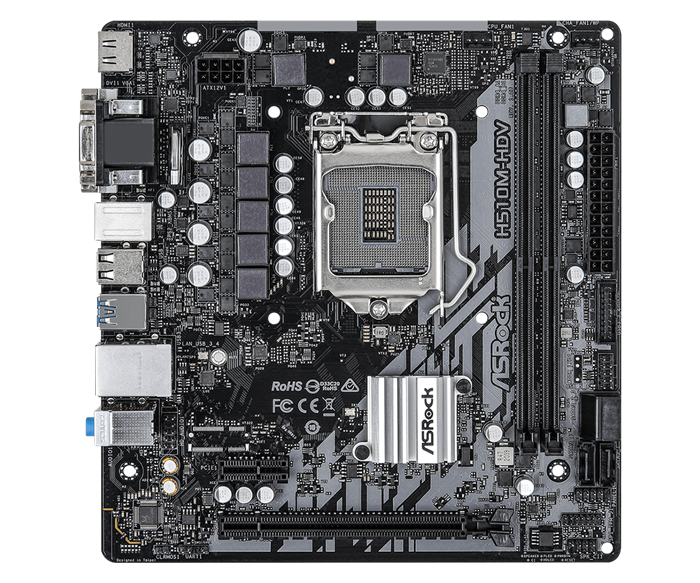

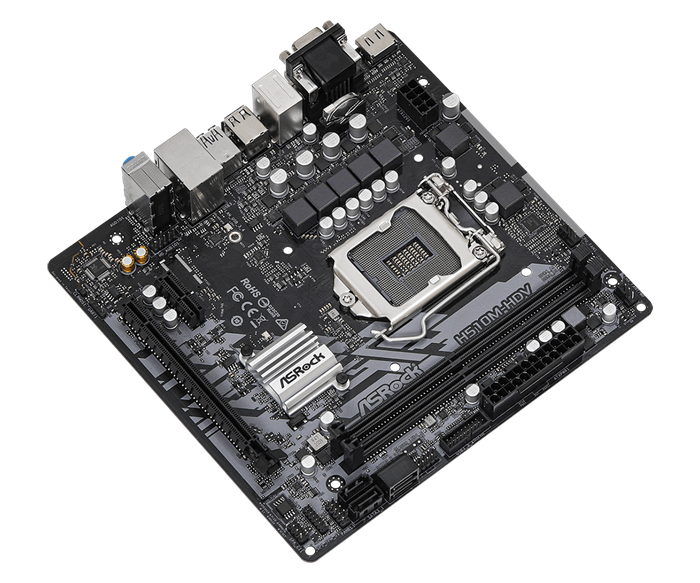

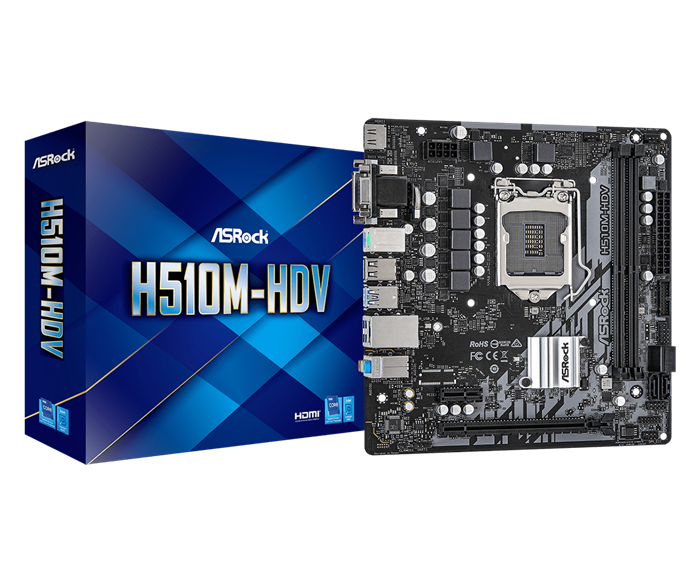

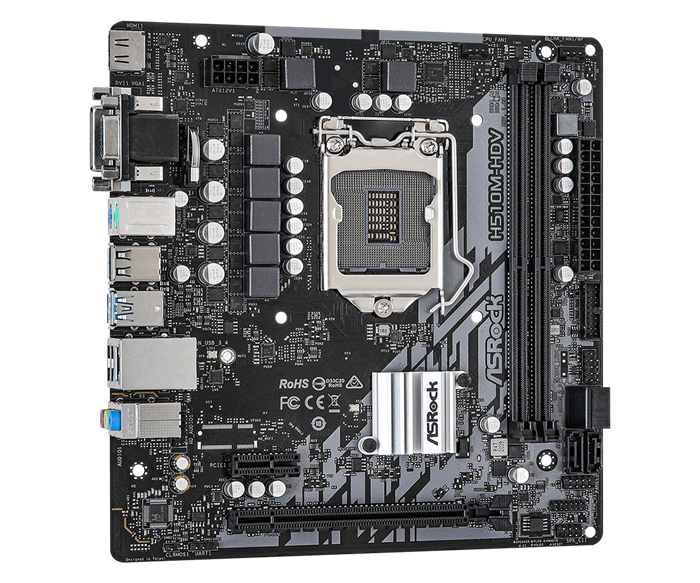

Mainboard ASROCK H510M-HDV

Sản phẩm

Bo mạch chủ

Tên Hãng

ASROCK

Model

H510M-HDV

CPU hỗ trợ

Intel

Chipset

H510

RAM hỗ trợ

2 x DIMM SLOTS, tối đa 64GB DDR4
Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory

Khe cắm mở rộng

11th Gen Intel^® Core™ Processors
- 1 x PCI Express 4.0 x16 Slot*
10th Gen Intel^® Core™ Processors
- 1 x PCI Express 3.0 x16 Slot*
- 1 x PCI Express 3.0 x1 Slot

Ổ cứng hỗ trợ

4 x SATA3 6.0 Gb/s Connectors

Cổng kết nối (Internal)

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

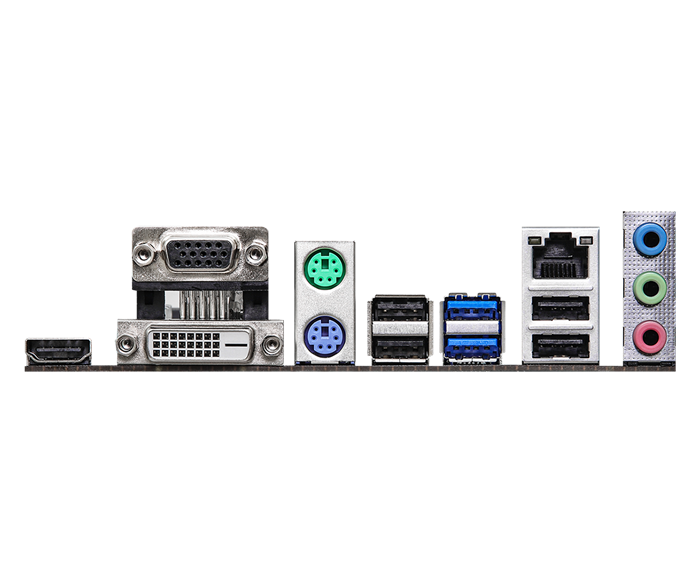

Cổng kết nối (Back Panel)

- 1 x PS/2 Keyboard Port
- 1 x PS/2 Mouse Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 4 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

LAN / Wireless

PCIE x1 Gigabit LAN 10/100/1000 Mb/s

Kích cỡ

 Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm
