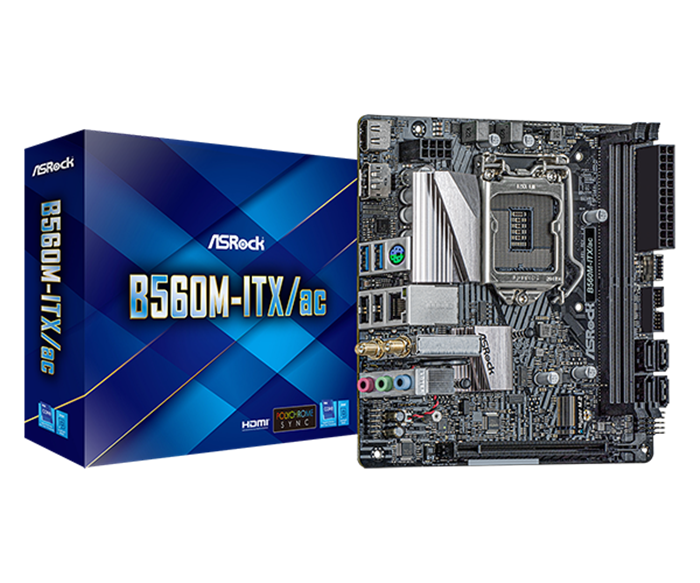

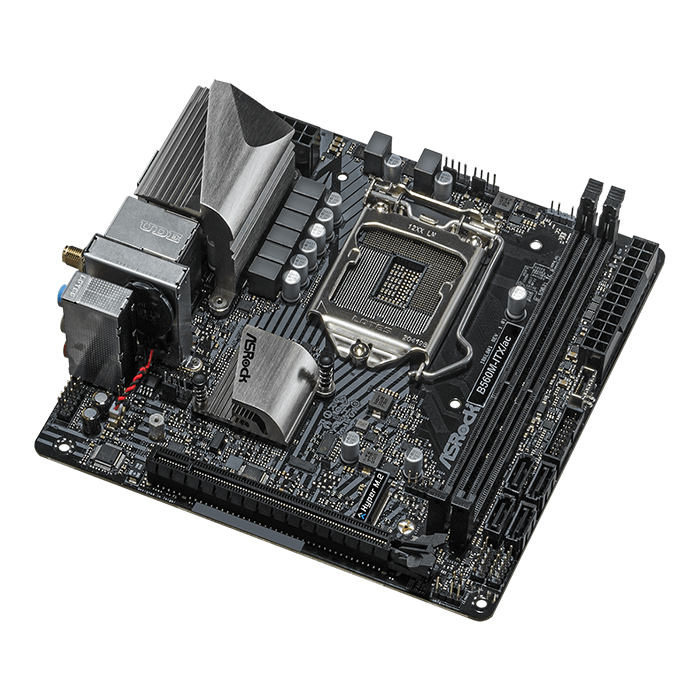

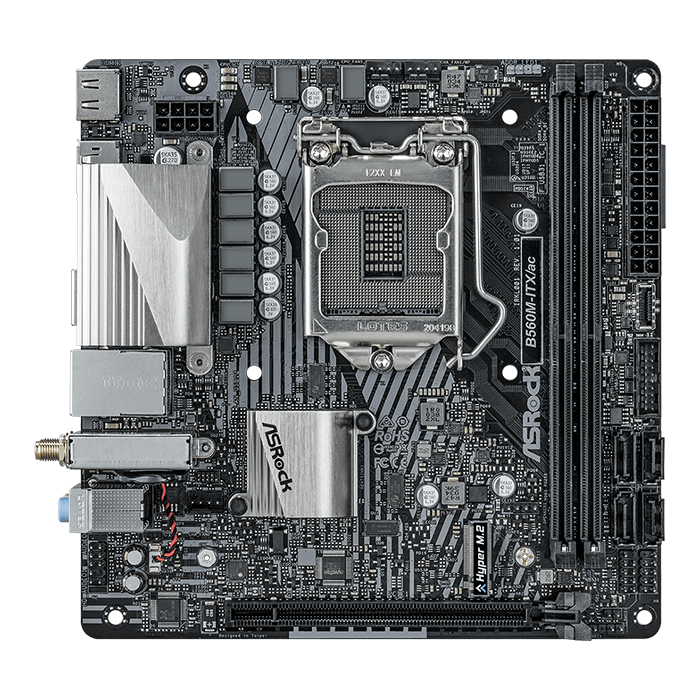

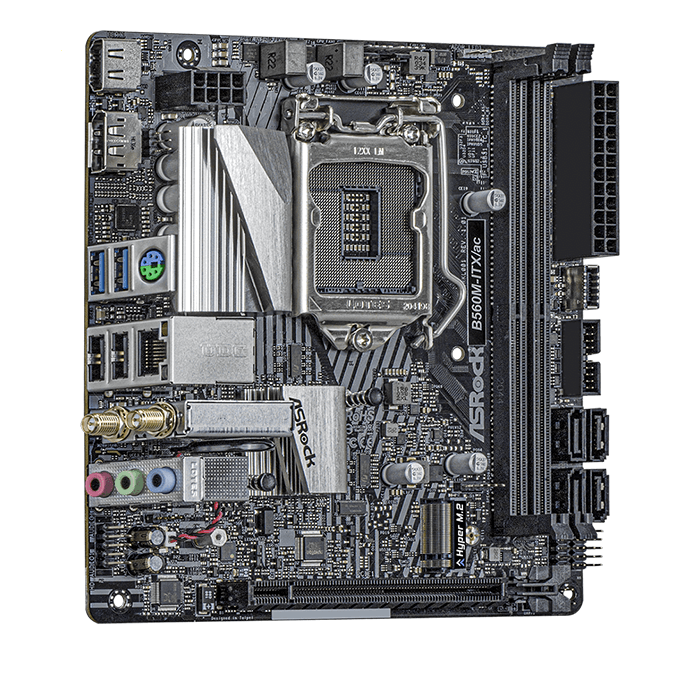

Mainboard ASROCK B560M-ITX/ac

Sản phẩm

Bo mạch chủ

Tên Hãng

ASROCK

Model

B560M-ITX/ac

CPU hỗ trợ

Intel

Chipset

B560

RAM hỗ trợ

2 x DDR4 DIMM, tối đa 64GB
- 11th Gen Intel^® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)*
- 10th Gen Intel^® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4400+(OC)*

Khe cắm mở rộng

11th Gen Intel^® Core™ Processors
- 1 x PCI Express 4.0 x16 Slot*
10th Gen Intel^® Core™ Processors
- 1 x PCI Express 3.0 x16 Slot*
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)

Ổ cứng hỗ trợ

- 4 x SATA3 6.0 Gb/s Connectors, support Intel^® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4 x4 (64 Gb/s) (with 11th Gen Intel^® Core™ Processors) or Gen3 x4 (32 Gb/s) (with 10th Gen Intel^® Core™ Processors)**

Cổng kết nối (Internal)

- 1 x Chassis Intrusion Header
- 1 x Addressable LED Header*
- 1 x CPU Fan Connector (4-pin)**
- 1 x Chassis Fan Connector (4-pin)***
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

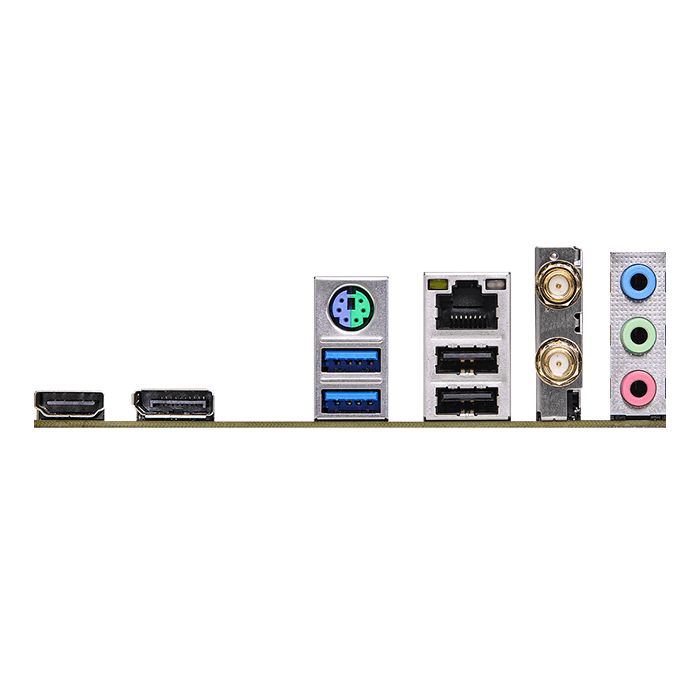

Cổng kết nối (Back Panel)

- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

LAN / Wireless

 Gigabit LAN 10/100/1000 Mb/s

Kích cỡ

Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
