Mainboard ASROCK B560 Pro4

Đánh giá:

Xem đánh giá (Có 0 đánh giá)

Bảo hành:

Giá bán: 2.949.000 đ

Socket: LGA1200 hỗ trợ CPU intel thế hệ 10 và thế hệ 11 Kích thước: ATX Khe cắm RAM: 4 khe (Tối đa 128GB) Khe cắm mở rộng: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1, 1 x M.2 Key-E for WiFi Khe cắm ổ cứng: 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 1 x Ultra M.2 (PCIe Gen3 x4), 1 x M.2 (PCIe Gen3 x2 & SATA3)

Số lượng

- 1 +

Đặt mua ngay

Tổng quan Thông số kỹ thuật Đánh giá sản phẩm

Sản phẩm	Bo mạch chủ
Tên Hãng	ASROCK
Model	B560 Pro4
CPU hỗ trợ	Intel
Chipset	B560
RAM hỗ trợ	4 x DDR4 DIMM, tối đa 128GB - 11th Gen Intel^® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)* - 10th Gen Intel^® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)*
Khe cắm mở rộng	11th Gen Intel^® Core™ Processors - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x2 (PCIE3))* 10th Gen Intel^® Core™ Processors - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x2 (PCIE3))* - 2 x PCI Express 3.0 x1 Slots - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel^® CNVi (Integrated WiFi/BT)
Ổ cứng hỗ trợ	- 6 x SATA3 6.0 Gb/s Connectors, support Intel^® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug* - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel^® Core™ Processors) - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) - 1 x M.2 Socket (M2_3), supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**
Cổng kết nối (Internal)	- 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

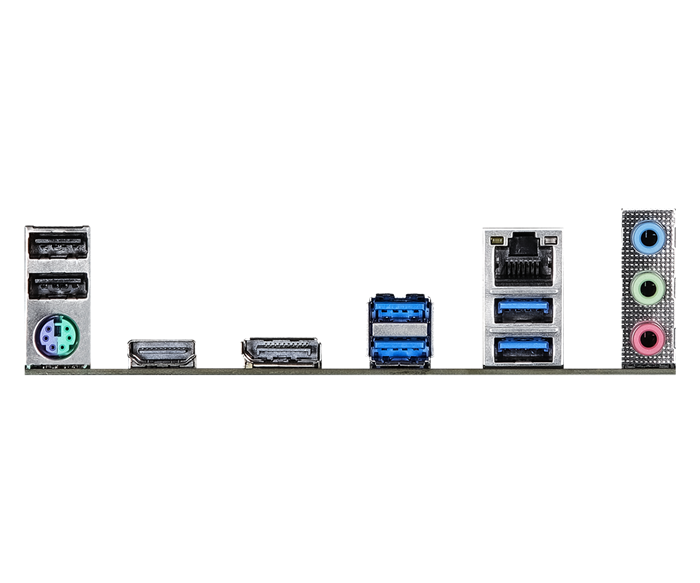

Cổng kết nối (Back Panel)	- 3 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
LAN / Wireless	Gigabit LAN 10/100/1000 Mb/s
Kích cỡ	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
