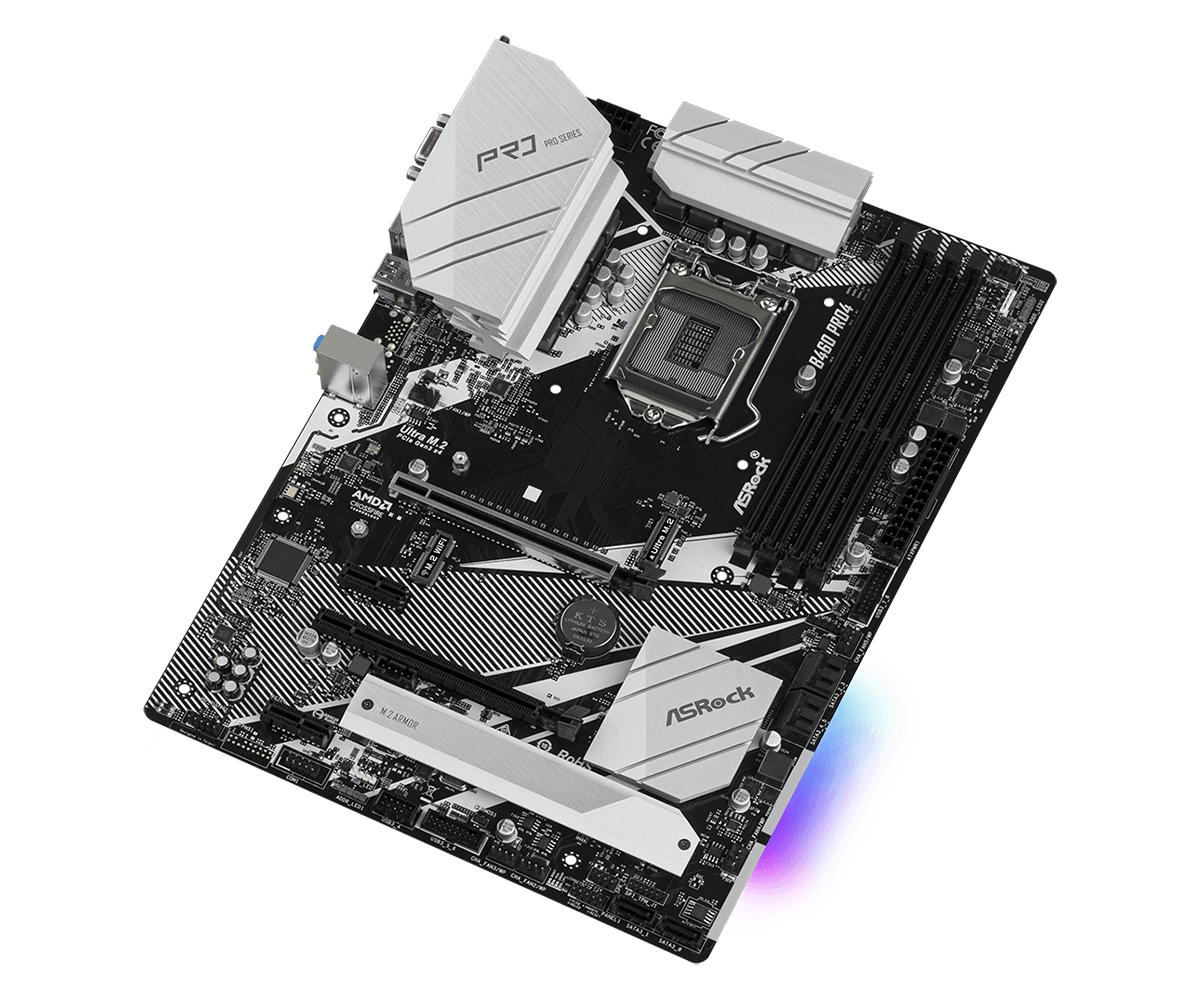

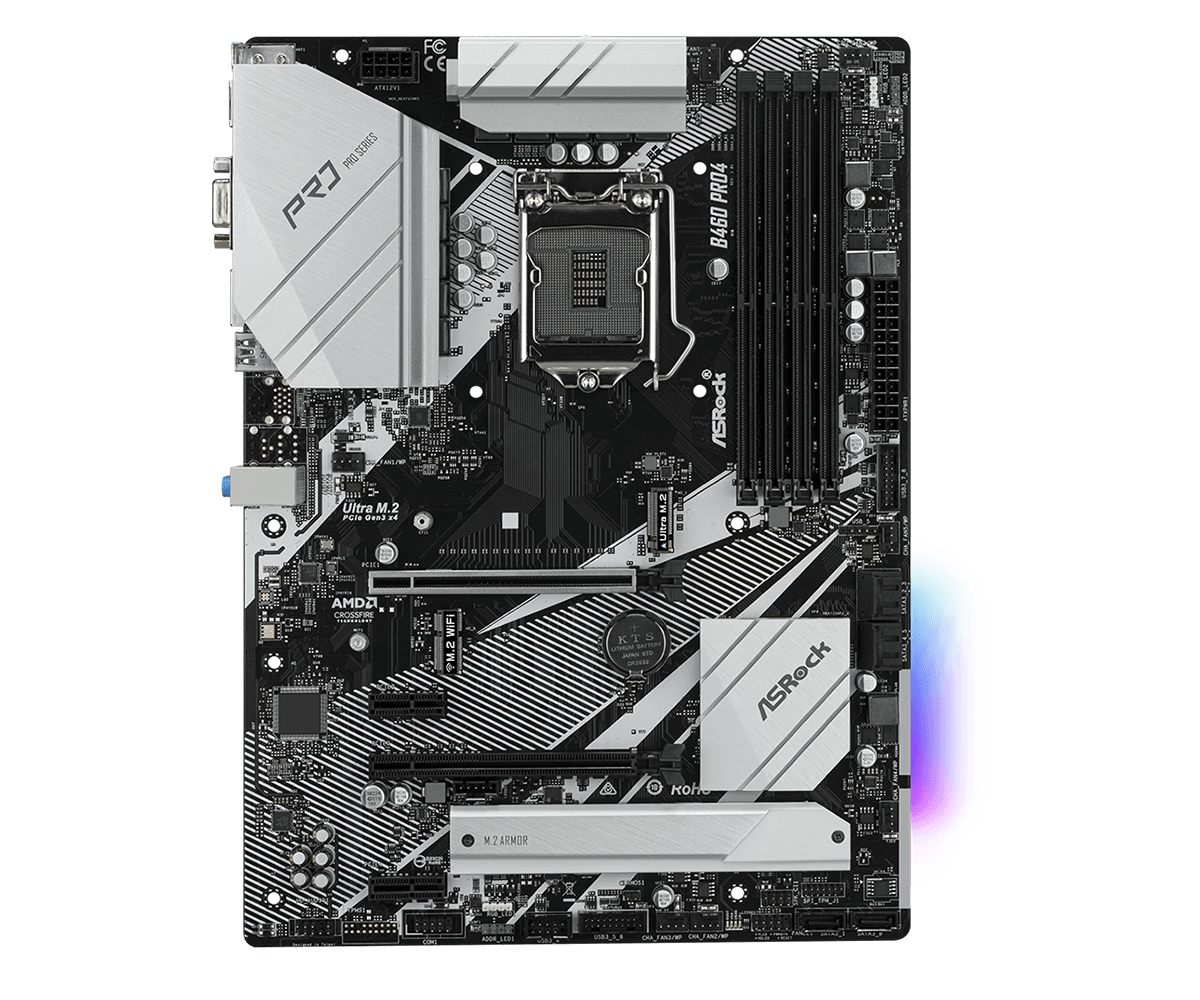

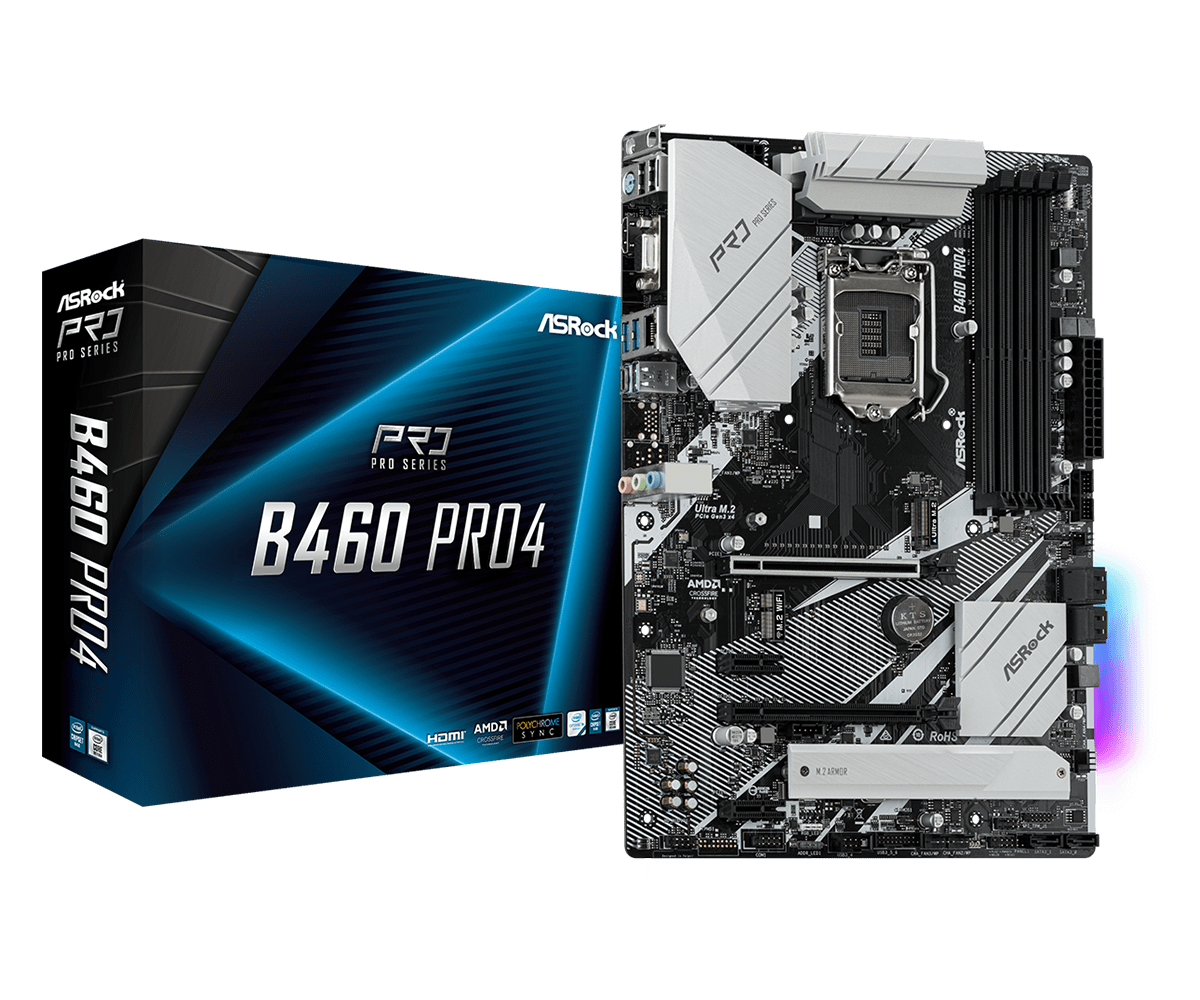

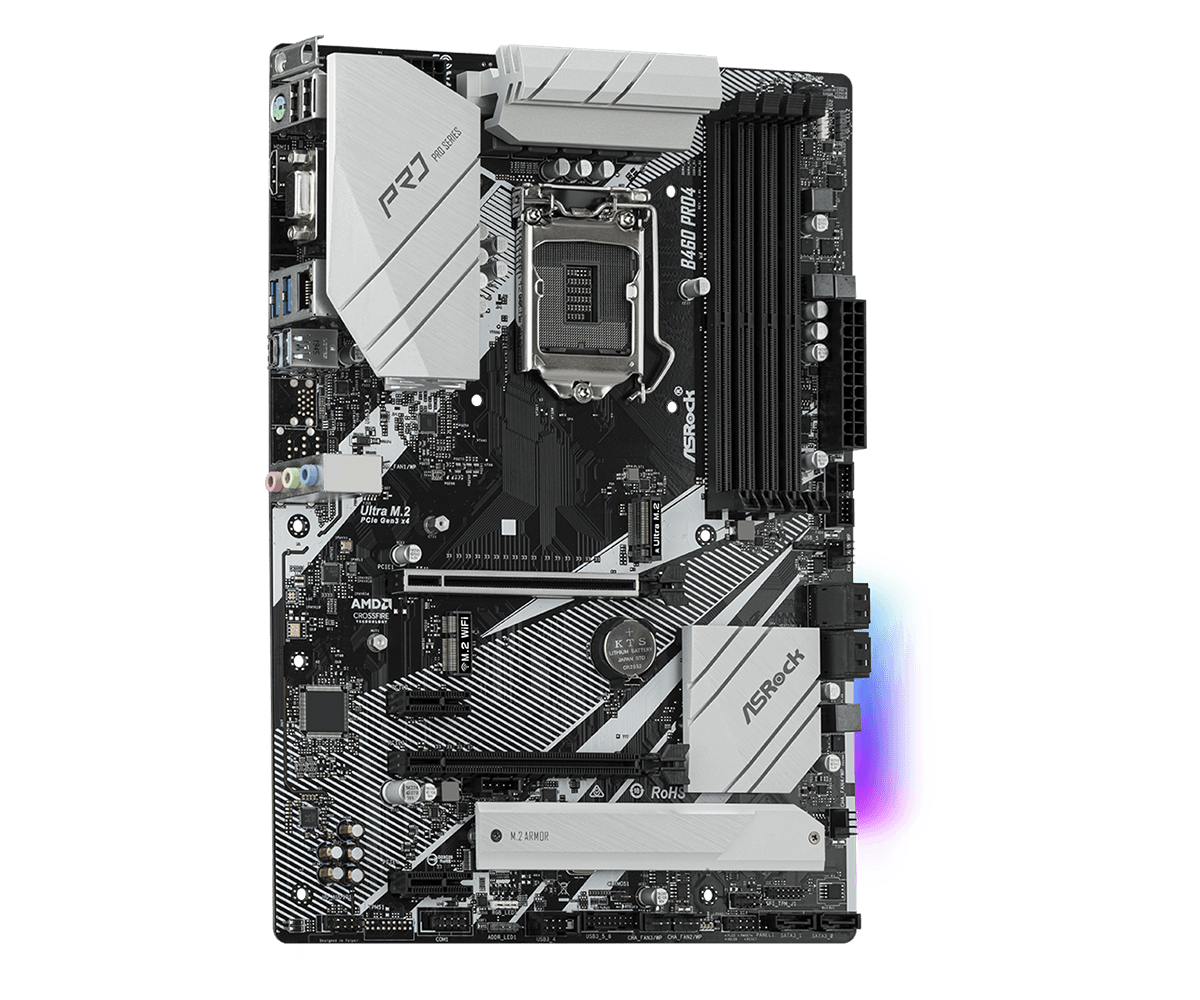

Mainboard ASROCK B460 Pro4

Đánh giá:

Xem đánh giá (Có 0 đánh giá)

Bảo hành:

Giá bán: 2.599.000 đ

Socket: Socket 1200 hỗ trợ CPU intel thế hệ 10 Kích thước: ATX Khe cắm RAM: 4 khe (Tối đa 128GB) Khe cắm mở rộng: 2 x PCI Express 3.0 x16 Slots, 2 x PCI Express 3.0 x1 Slots Khe cắm ổ cứng: 6 x SATA3 6.0 Gb/s Connectors, 1 x Ultra M.2 Socket (M2_1), 1 x Ultra M.2 Socket (M2_2)

Số lượng

- 1 +

Đặt mua ngay

Tổng quan Thông số kỹ thuật Đánh giá sản phẩm

Sản phẩm	Bo mạch chủ
Tên Hãng	Asrock
Model	B460 Pro4
CPU hỗ trợ	Intel
Chipset	B460
RAM hỗ trợ	4 x DDR4 DIMM Slots ( tối đa 128GB ) Supports DDR4 2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP) 2.0
Khe cắm mở rộng	2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3) 2 x PCI Express 3.0 x1 Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Ổ cứng hỗ trợ	6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Cổng kết nối (Internal)	1 x COM Port Header 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 2 x RGB LED Headers* 2 x Addressable LED Headers 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only) 2 x USB 2.0 Headers (Supports 3 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

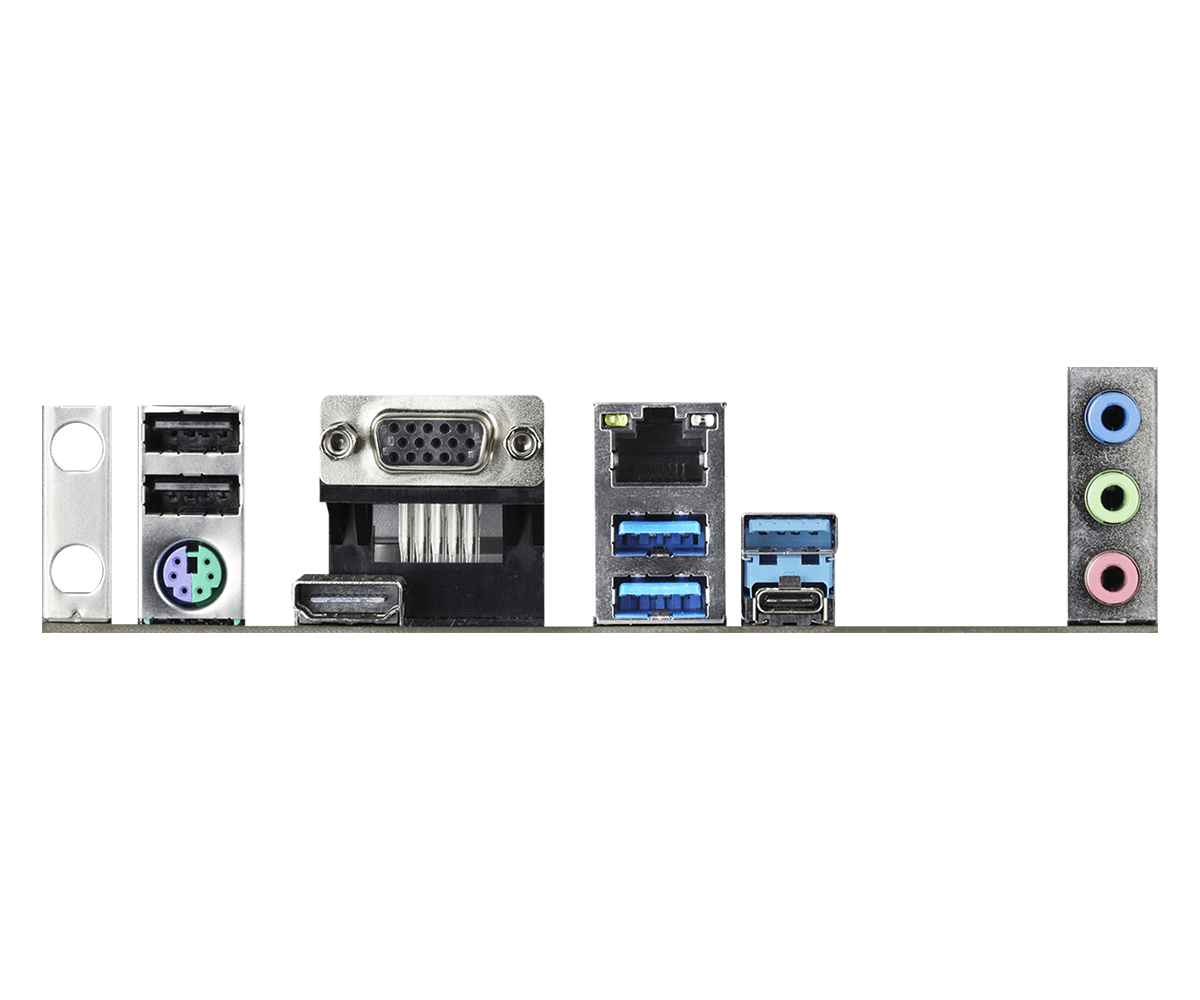

Cổng kết nối (Back Panel)	1 x Antenna Bracket 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone
LAN / Wireless	Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel^® I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
Kích cỡ	ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
