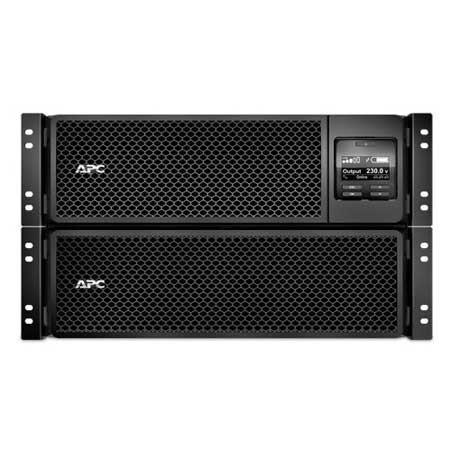

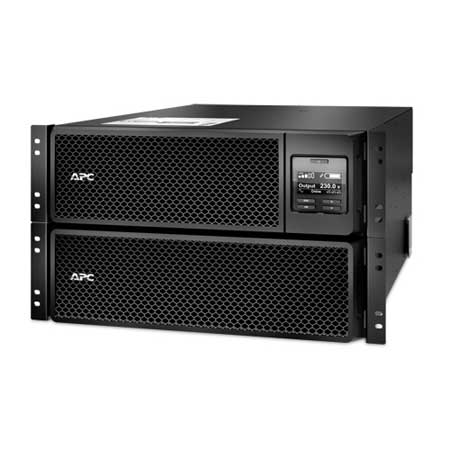

Bộ lưu điện APC Smart-UPS SRT 8000VA RM 230V - SRT8KRMXLI

Output

Output power capacity

8.0 KWatts/ 8.0 kVA

Max Configurable Power (Watts)

8.0 KWatts/ 8.0 kVA

Nominal Output Voltage

230V

Output Voltage Distortion

Less than 2%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Load Crest Factor

3:1

Topology

Double Conversion Online

Waveform type

Sine wave

Output Connections

(4) IEC 320 C19 (Battery Backup)

(6) IEC 320 C13 (Battery Backup)

(1) Hard Wire 3-wire (H N + G) (Battery Backup)

(3) IEC Jumpers (Battery Backup)

Bypass

Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage

230V, 400V 3PH

Input frequency

40 - 70 Hz (auto sensing)

Input Connections

Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)

Input voltage range for main operations

160 - 275V

Input voltage adjustable range for mains operation

100 - 275 (half load), 173 - 476 (half load)V

Other Input Voltages

220, 240, 380, 415

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Typical recharge time

1.5hour(s)

Replacement Battery

APCRBC140

Expected Battery Life (years)

3 – 5

RBC Quantity

2

Extendable Run Time

1

Battery Volt-Amp-Hour Capacity

1728

Communications & Management

Interface Port(s)

RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot , USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Dimension

263 x 432 x 715mm

Weight

111.82kg
