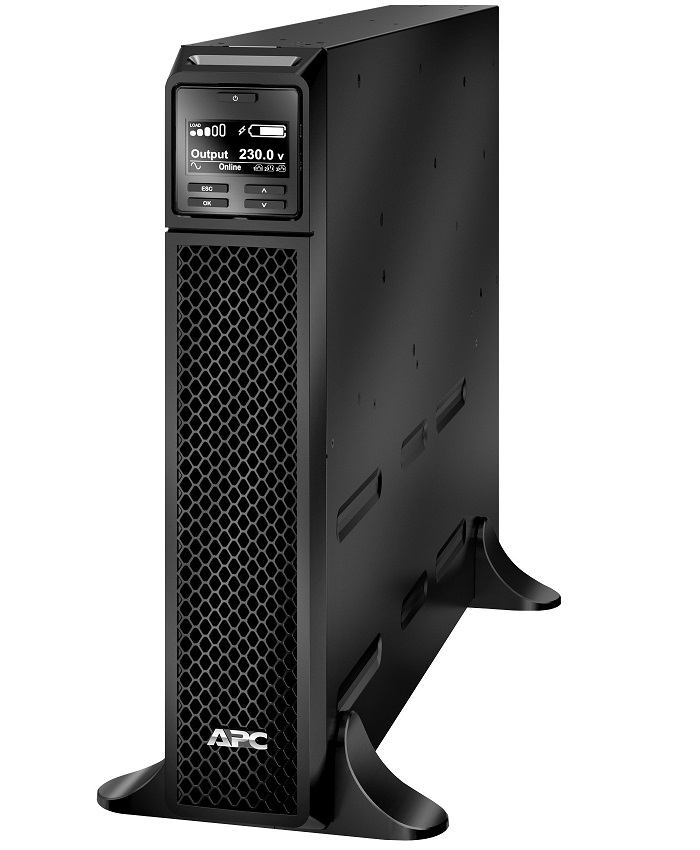

Bộ lưu điện APC Smart-UPS SRT 2200VA 230V - SRT2200XLI

Output

Output power capacity

1.98 KWatts / 2.2 kVA

Max Configurable Power (Watts)

1.98 KWatts / 2.2 kVA

Nominal Output Voltage

230V

Output Voltage Note

Configurable for 220: 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 2%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double Conversion Online

Waveform type

Sine wave

Output Connections

(8) IEC 320 C13 (Battery Backup)

(2) IEC 320 C19 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

Bypass

Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage

230V

Input frequency

40 - 70 Hz (auto sensing)

Input Connections

IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A

Cord Length

2.44meters

Input voltage range for main operations

160 - 275V

Input voltage adjustable range for mains operation

100 - 275 (half load)V

Number of Power Cords

1

Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Included Battery Modules

1

Typical recharge time

3hour(s)

Replacement Battery

APCRBC141

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Extendable Run Time

1

Battery Volt-Amp-Hour Capacity

367

Communications & Management

Interface Port(s)

RJ-45 Serial , Smart-Slot , USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Dimension

432 x 85 x 584mm

Weight

25kg
