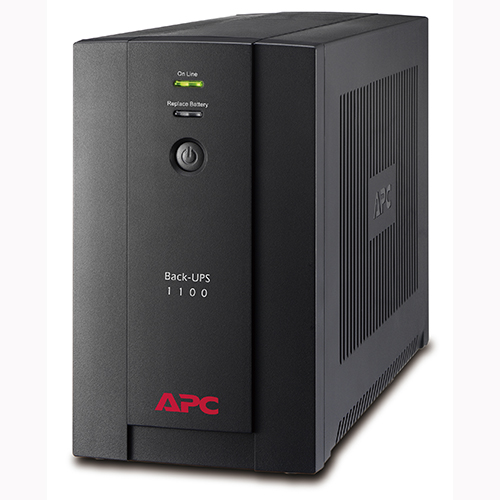

Bộ lưu điện APC Back-UPS 1100VA (BX1100LI-MS)

Output

• Output power capacity
  550 Watts / 1.1 kVA
• Max Configurable Power (Watts)
  550 Watts / 1.1 kVA
• Nominal Output Voltage
  230V
• Output Frequency (sync to mains)
  50/60 Hz +/-1 Hz
• Output Frequency (not synced)
  50/60 Hz +/-1 Hz
• Topology
  Line Interactive
• Waveform type
  Stepped approximation to a sinewave
• Output Connections
  (2) IEC 320 C13 (Battery Backup)
• Transfer Time
  4ms typical : 6ms maximum

Input

• Nominal Input Voltage
  230V
• Input frequency
  50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections
  IEC-320 C14, NEMA 5-15P
• Cord Length
  1.22 meters
• Input voltage range for main operations
  150 - 280 V
• Number of Power Cords
  1
• Type of Input Protection Required
  3-pole breaker
• Maximum Input Current
  10.0 A
• Input Power Factor at Full Load
  0.5

Batteries & Runtime

• Battery type
  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Included Battery Modules
  1
• Typical recharge time
  6 hour(s)
• Replacement Battery
  RBC17
• Battery Volt-Amp-Hour Capacity
  96
• Runtime
  View Runtime Graph
  View Runtime Chart
• Efficiency
  View Efficiency Graph

Communications & Management

• Control panel
  LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
• Audible Alarm
  Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

• Surge energy rating
  273 Joules

Physical

• Maximum Height
  215 , 21.5 cm
• Maximum Width
  130 , 13.0 cm
• Maximum Depth
  336 , 33.6 cm
• Net Weight
  9.2 kg
• Shipping weight
  10.6 kg
• Shipping Height
  295 , 29.5 cm
• Shipping Width
  245 , 24.5 cm
• Shipping Depth
  440 , 44.0 cm
• Color
  Black

Environmental

• Operating Environment
  0 - 40 °C
• Operating Relative Humidity
  0 - 95 %
• Operating Elevation
  0-3000 meters
• Storage Temperature
  -15 - 40 °C
• Storage Relative Humidity
  0 - 95 %
• Storage Elevation
  0-9000 meters
• Audible noise at 1 meter from surface of unit
  45.0 dBA

Conformance

• Approvals
  CE, WEEE
• Standard warranty
  2 years repair or replace

Sustainable Offer Status

• RoHS
  Compliant
• REACH
  REACH: Contains No SVHCs
